ZT31008 4.2mm Sealed Wire-to-Board Connector System

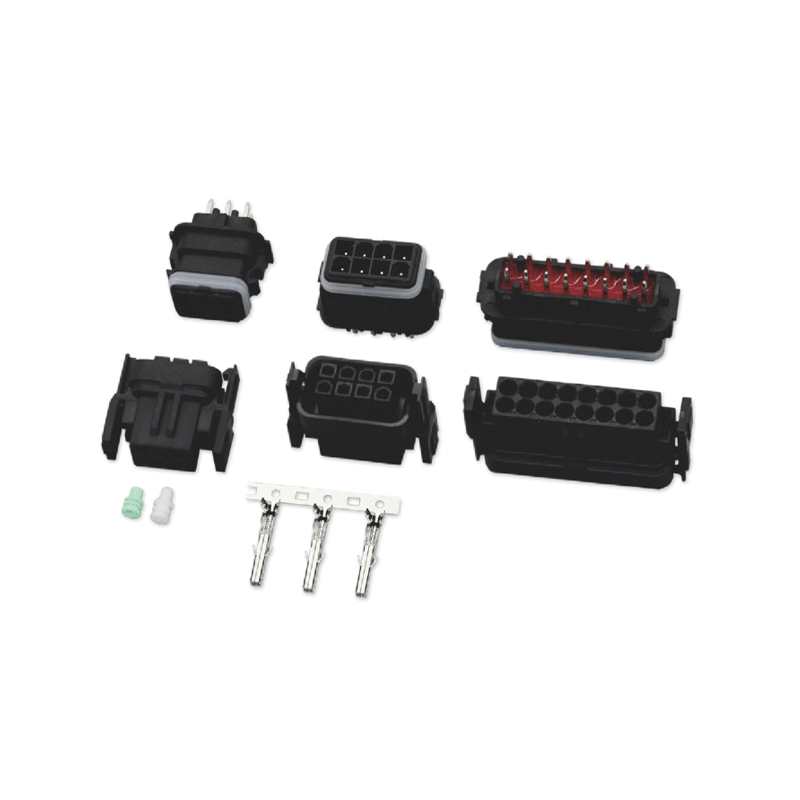

The ZT31008 4.2mm Sealed Wire-to-Board Connector System is a multi-component sealed connection solution with cable-side plug housings, board-side headers, crimp terminals and silicone seals. It is available in 6, 8 and 16 circuit configurations.

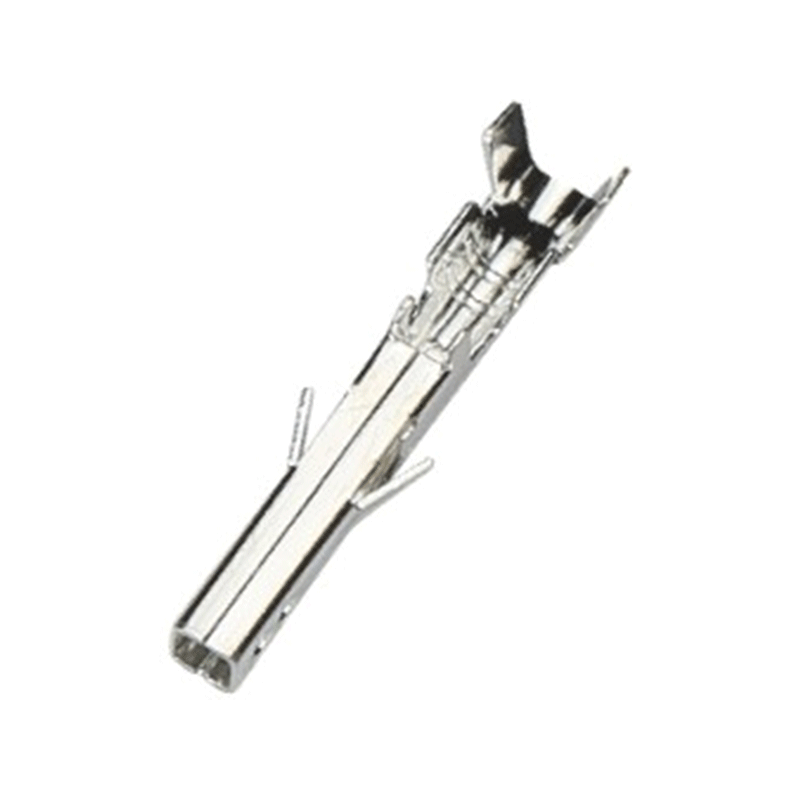

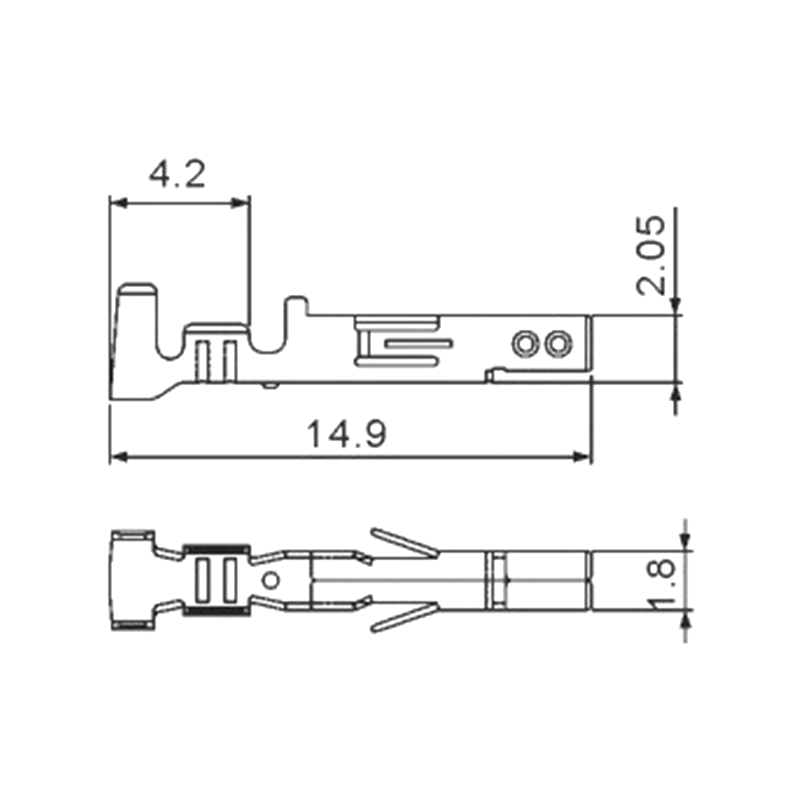

Unlike a basic board header, this sealed connector system provides both sides of the interface and the related sealing parts for a more complete harness-to-PCB connection. The ZT31008 4.2mm Sealed Wire-to-Board Connector System supports 0.3 to 0.5 mm² wire for its listed crimp terminal configuration.

Inquiry Now
PREV：ZT2051 / ZT2053 24-Circuit Sealed Wire-to-Board Connector System NEXT：ZT31007 4.2mm Sealed Wire-to-Board Connector System
  • Product Details
  • Parameter

Key Features

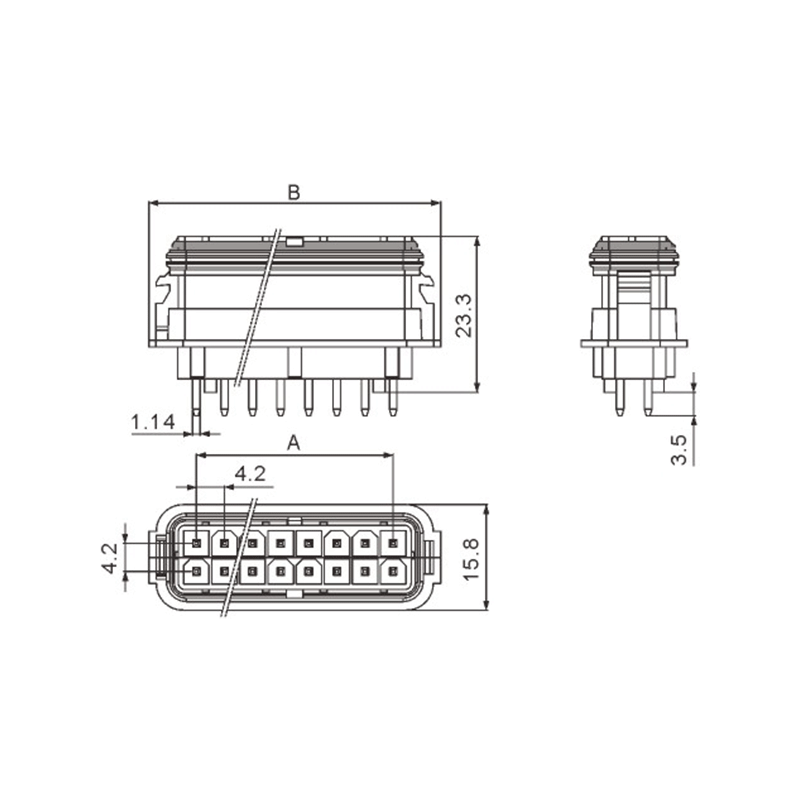

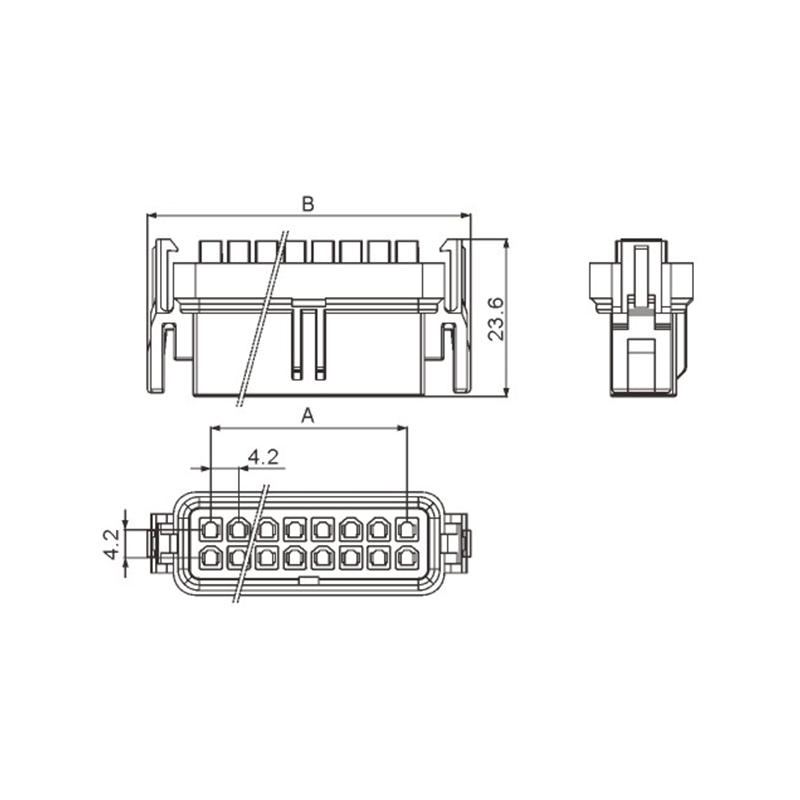

Plug and wafer versions are available within the same connection system.

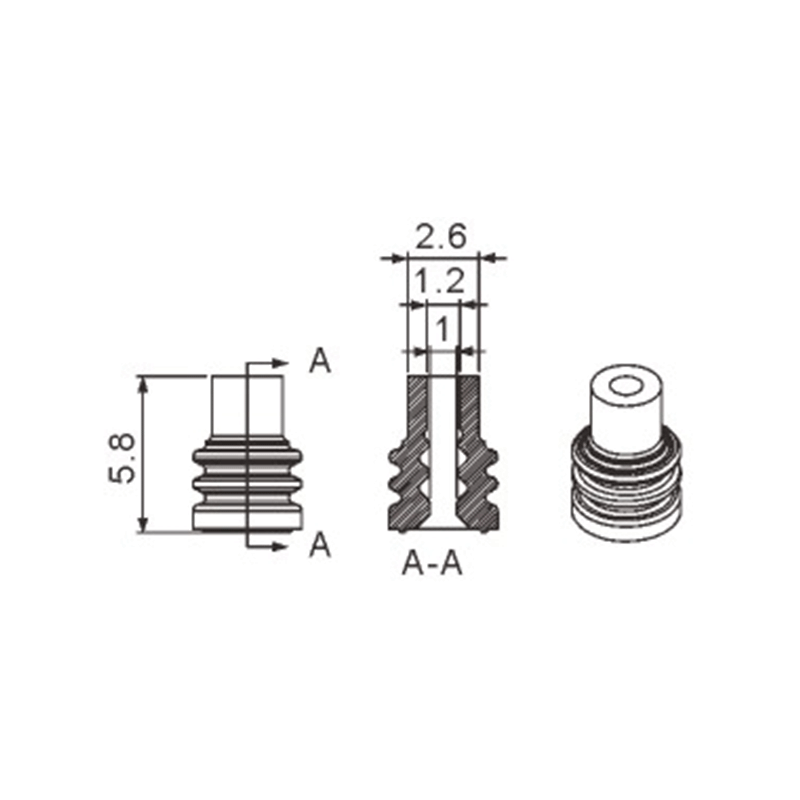

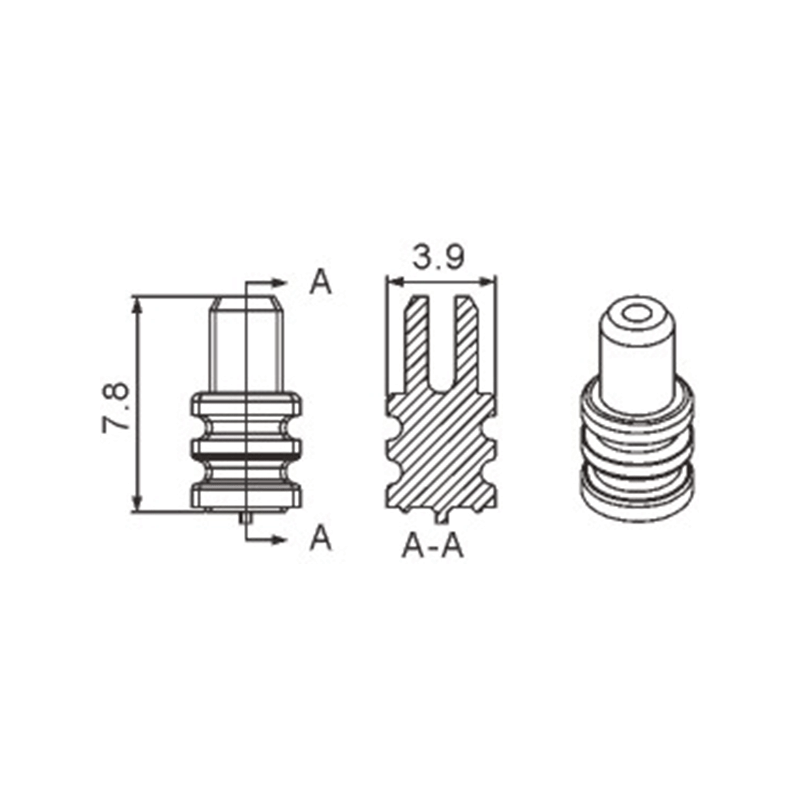

Silicone seals include cable-entry seals and dummy seals for unused positions.

6, 8 and 16 circuit options support scalable harness design.

Black PBT housings are specified for the plug and wafer components.

A 4.2mm pitch supports structured multi-circuit wiring.


Applications

Sealed electrical control modules. Automotive and transport auxiliary harnesses.

Industrial equipment exposed to dust or moisture. Power and signal interfaces requiring unused-cavity sealing.


Ordering & Quotation Information

Please state the circuit count, wire cross-section, required plug/header quantity and whether dummy seals are required. This information allows the connector components and seals to be quoted as a complete selected set.


FAQ

Q1: Why are dummy seals used?
A: Dummy seals close unused terminal cavities when a selected connector position is not populated.

Q2: What wire range is supported by the listed terminal?
A: The listed terminal configuration supports 0.3 to 0.5 mm² wire, equivalent to AWG 22 to 20.

Q3: Can plug and board-side components be purchased together?
A: Yes. Provide the required circuit count and quantities for each component when requesting a quotation.

Q4: Is this product suitable for a sealed harness interface?
A: Yes. The system includes silicone sealing components for the cable-side connection arrangement.


Request a Quote

Send your circuit count, wire size and seal requirement to quote the ZT31008 4.2mm Sealed Wire-to-Board Connector System.
