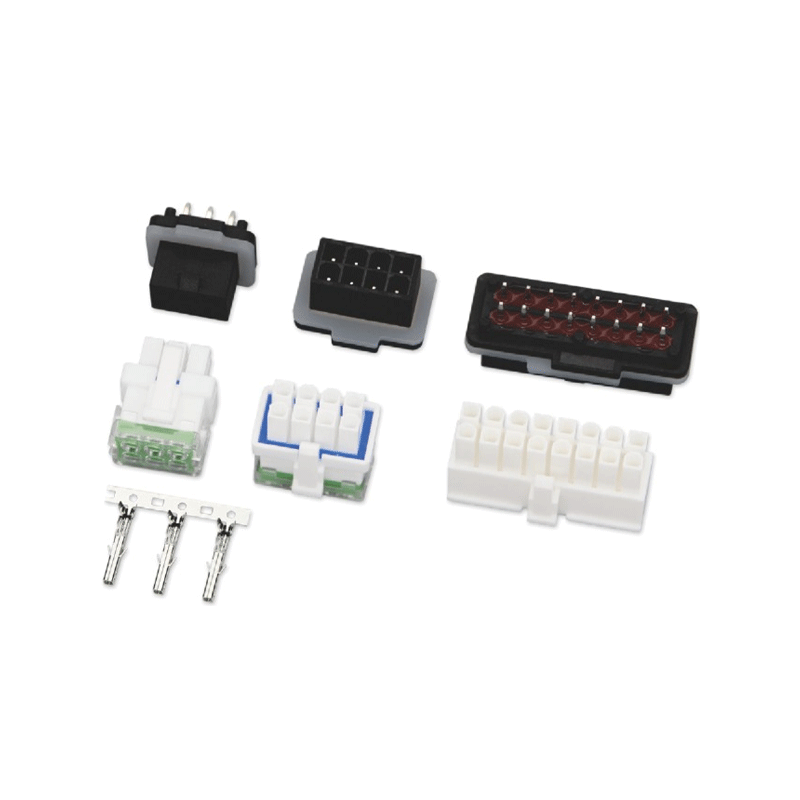

ZT31007 4.2mm Sealed Wire-to-Board Connector System

The ZT31007 4.2mm Sealed Wire-to-Board Connector System is a sealed multi-position connector platform for 6, 8 and 16 circuit wiring assemblies. Its protected plug and board-header arrangement is intended for equipment that requires a defined cable-to-PCB connection with a sealing component.

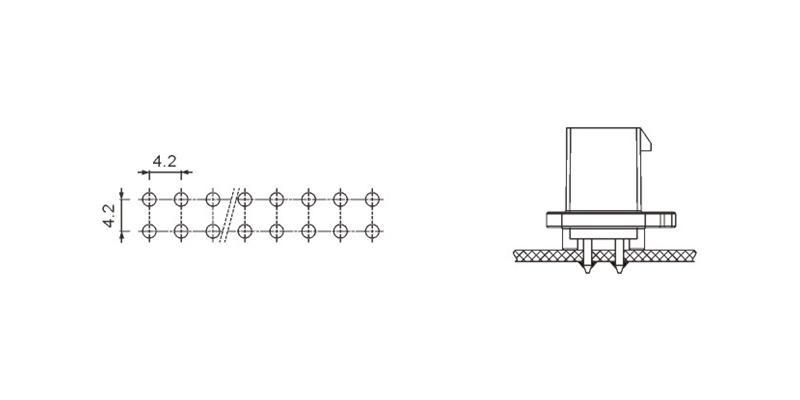

The system uses a 4.2mm pitch and straight board pins for vertical mounting on a 1.6mm PCB. The ZT31007 4.2mm Sealed Wire-to-Board Connector System is suited to compact electrical assemblies where circuit count and interface protection must be specified together.

Inquiry Now
PREV：ZT31008 4.2mm Sealed Wire-to-Board Connector System NEXT：ZT31005 4.2mm Sealed Wire-to-Board Connector System
  • Product Details
  • Parameter

Key Features

Sealed connector construction supports protected harness interfaces.

6, 8 and 16 circuit versions provide clear options for different wiring loads.

Straight-pin headers provide vertical board mounting.

Black PA66 FRG20 housing material is listed for the board-side versions.

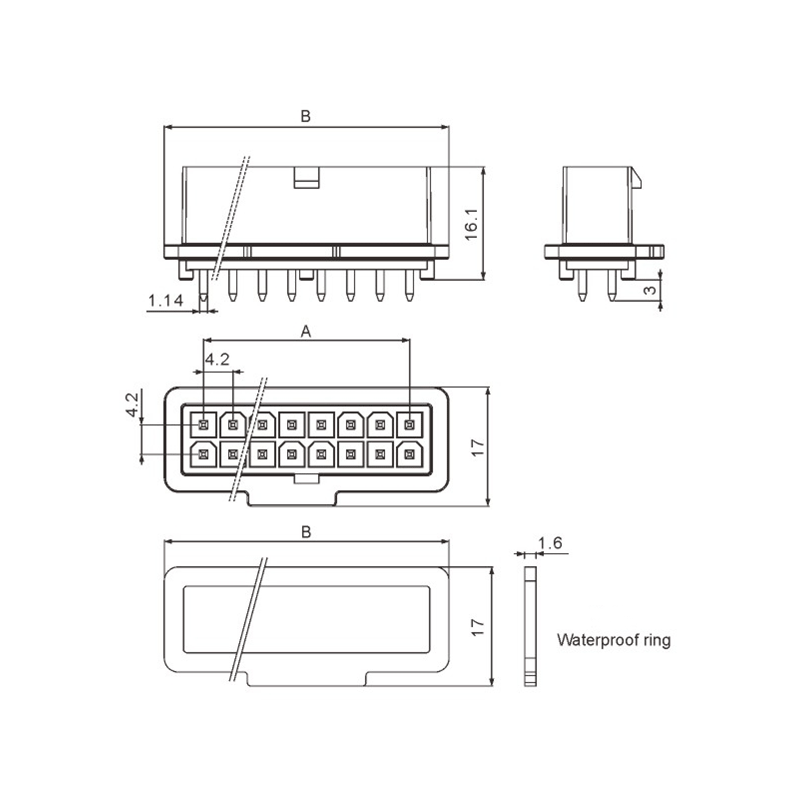

Separate waterproof rings are matched to the selected circuit configuration.


Applications

Electrical control boxes. Vehicle electrical subassemblies.

Industrial power and signal harnesses. Equipment requiring a sealed board-level connector interface.


Ordering & Quotation Information

Specify the circuit count, wire range, PCB thickness and corresponding waterproof-ring requirement. For harness projects, it is advisable to confirm the plug, header and seal as one selected connection set.


FAQ

Q1: How is this system different from an unsealed board connector?
A: This system uses a sealed interface arrangement and matched waterproof-ring options for protected cable-to-board connections.

Q2: Which circuit counts can be quoted?
A: Available versions are 6, 8 and 16 circuits.

Q3: Is the header mounted vertically?
A: Yes. The listed straight-pin structure is designed for vertical PCB mounting.

Q4: What needs to be checked before ordering samples?
A: Confirm circuit count, cable size, board thickness and the required sealing arrangement.


Request a Quote

Provide your circuit count and interface requirements for a quotation on the ZT31007 4.2mm Sealed Wire-to-Board Connector System.
