ZT2051 / ZT2053 24-Circuit Sealed Wire-to-Board Connector System

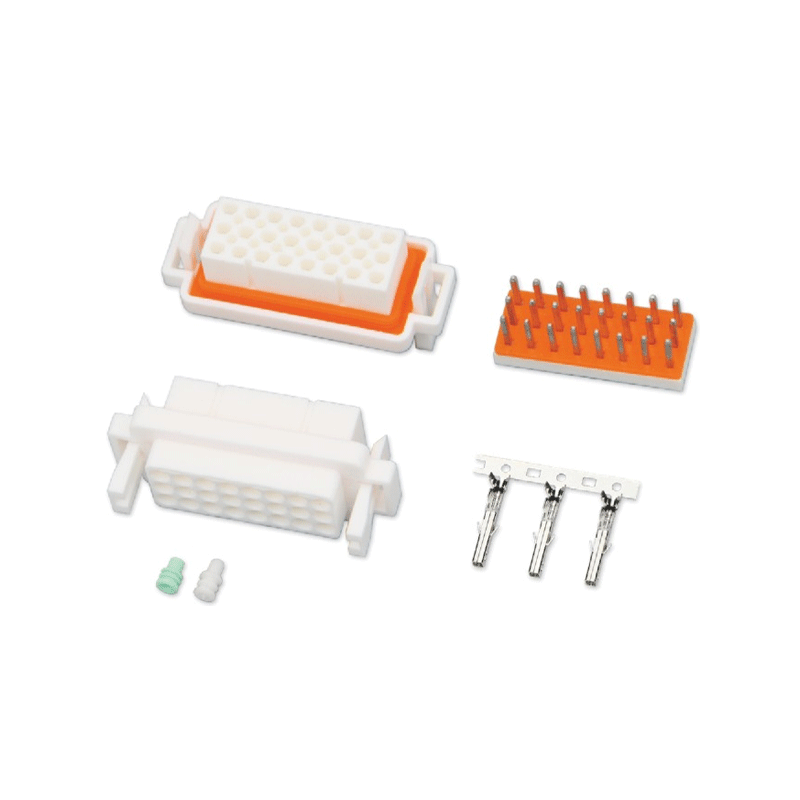

The ZT2051 / ZT2053 24-Circuit Sealed Wire-to-Board Connector System is a 24-position connection platform for higher-density harness-to-PCB applications. It combines a sealed cable-side plug housing with a matching board-side wafer to create a defined multi-circuit interface.

This 24-circuit sealed connector system uses a 4.2mm pitch, silicone sealing parts and a dedicated waterproof pad. The ZT2051 / ZT2053 24-Circuit Sealed Wire-to-Board Connector System is intended for projects that need one connector interface for a larger number of organized conductors.

Inquiry Now
PREV：No previous article NEXT：ZT31008 4.2mm Sealed Wire-to-Board Connector System
  • Product Details
  • Parameter

Key Features

A 24-circuit layout supports dense multi-wire harness assemblies.

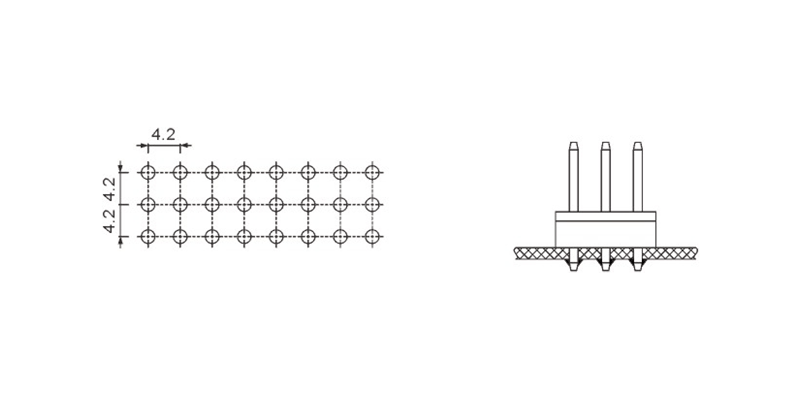

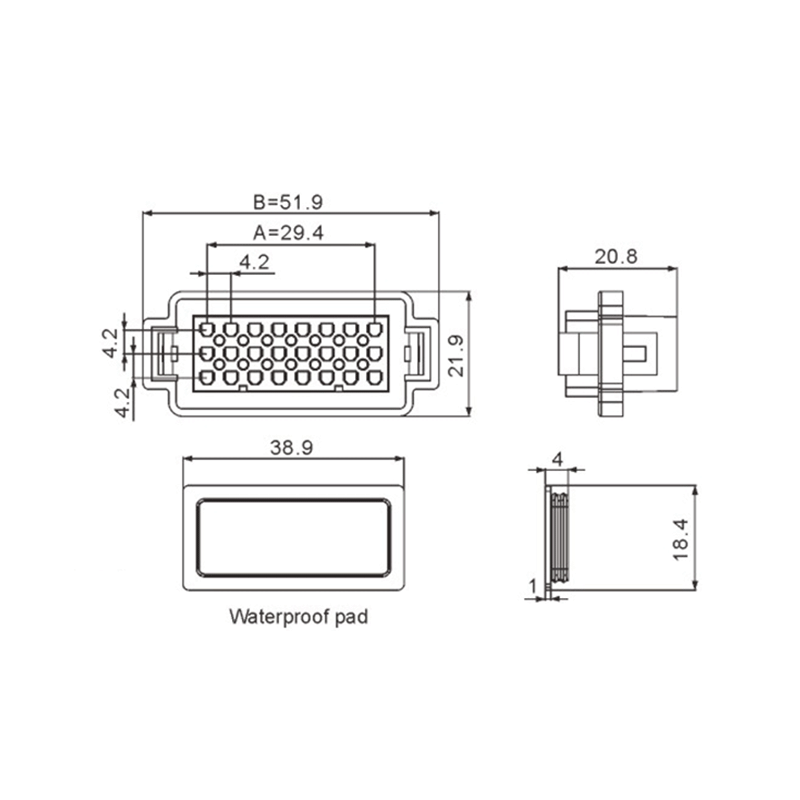

The cable-side plug and board-side wafer form a matched connector interface.

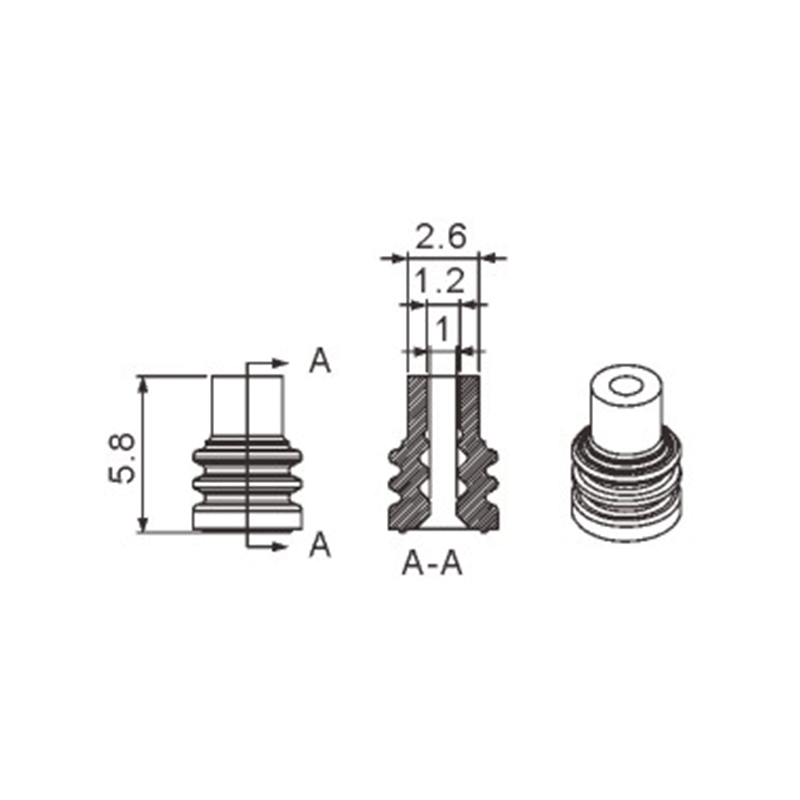

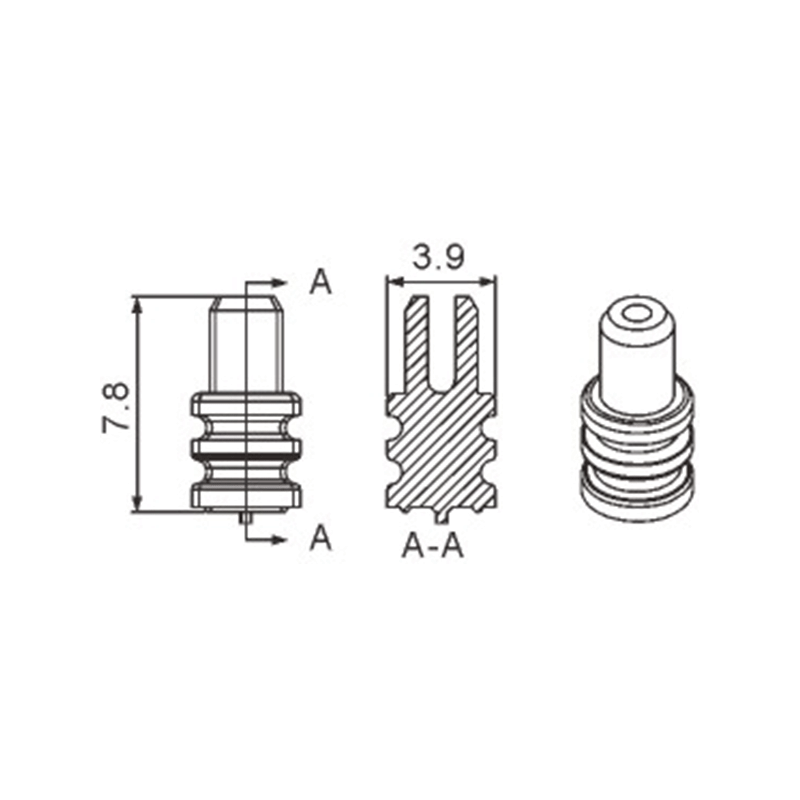

Silicone cable seals and dummy seals support cavity sealing requirements.

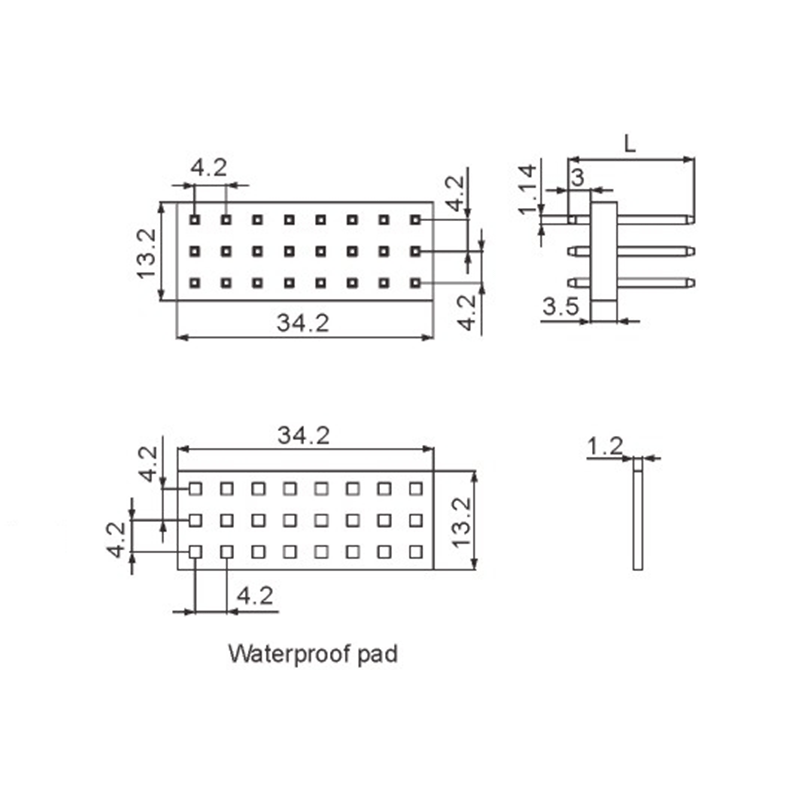

A waterproof pad is used with the board-side component.

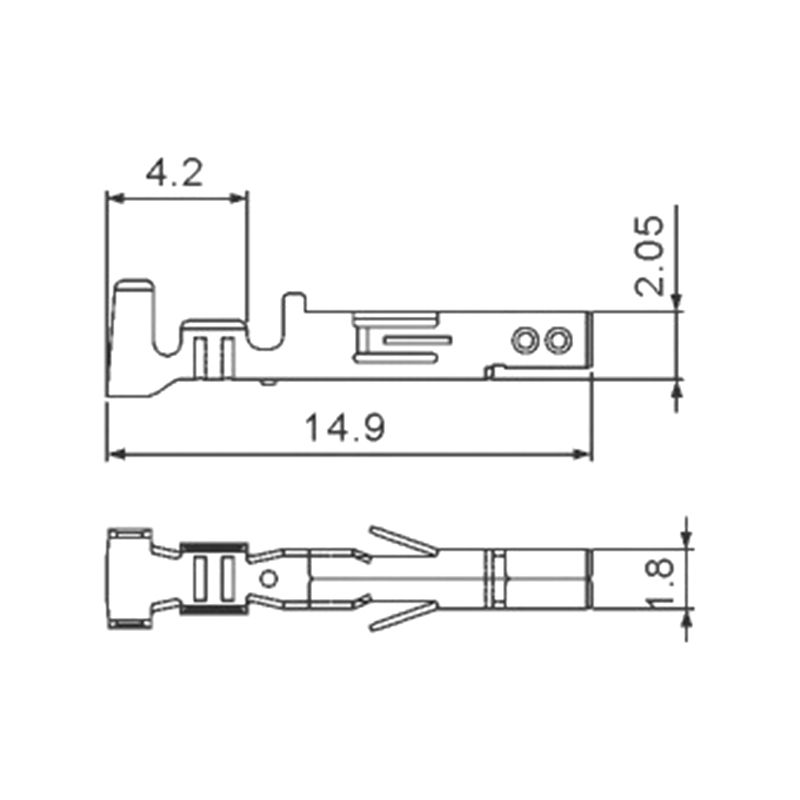

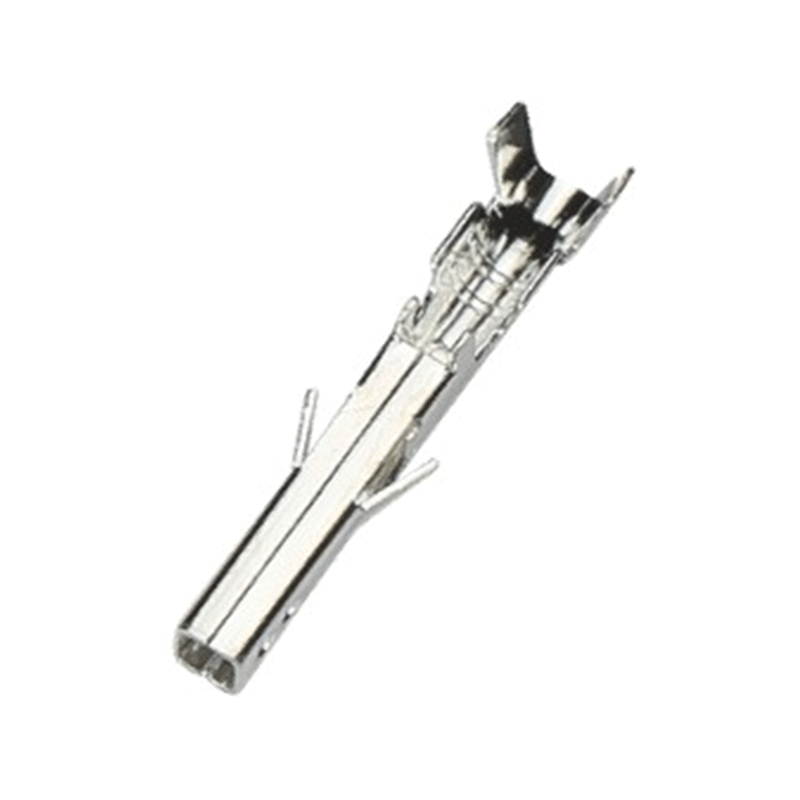

Crimp terminals use phosphor bronze with bright tin plating.


Applications

Multi-circuit industrial control systems. Electrical distribution modules.

Vehicle control harnesses. Equipment requiring a sealed 24-position board interface.


Ordering & Quotation Information

Please provide the required plug and wafer quantities, wire size, PCB design requirement and seal configuration. For a 24-circuit harness, a pin-assignment drawing is helpful when confirming sample requirements.


FAQ

Q1: Is this a 24-circuit connector only?
A: Yes. This connector system is configured as a 24-circuit wire-to-board interface.

Q2: What sealing components are included in the system design?
A: The system includes silicone cable seals, dummy seals and a waterproof pad for the board-side connection arrangement.

Q3: Which wire range is used with the listed terminal?
A: The listed terminal supports 0.3 to 0.5 mm² wire, equivalent to AWG 22 to 20.

Q4: What should be provided for a quotation?
A: Provide plug quantity, wafer quantity, wiring specification, expected order quantity and any pin-assignment requirement.


Request a Quote

Contact us with your harness layout and purchasing requirement for the ZT2051 / ZT2053 24-Circuit Sealed Wire-to-Board Connector System.
