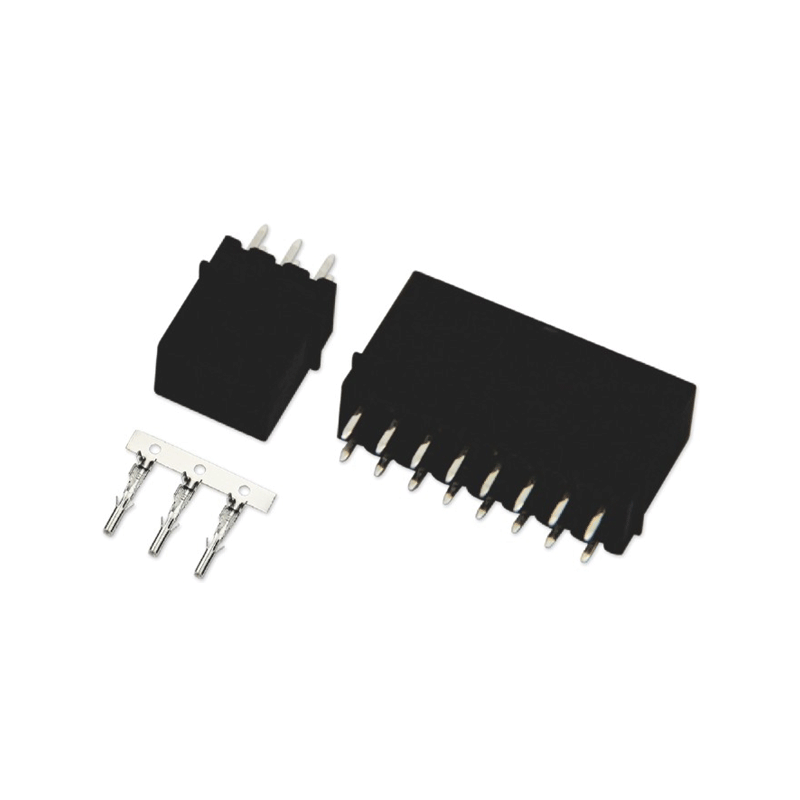

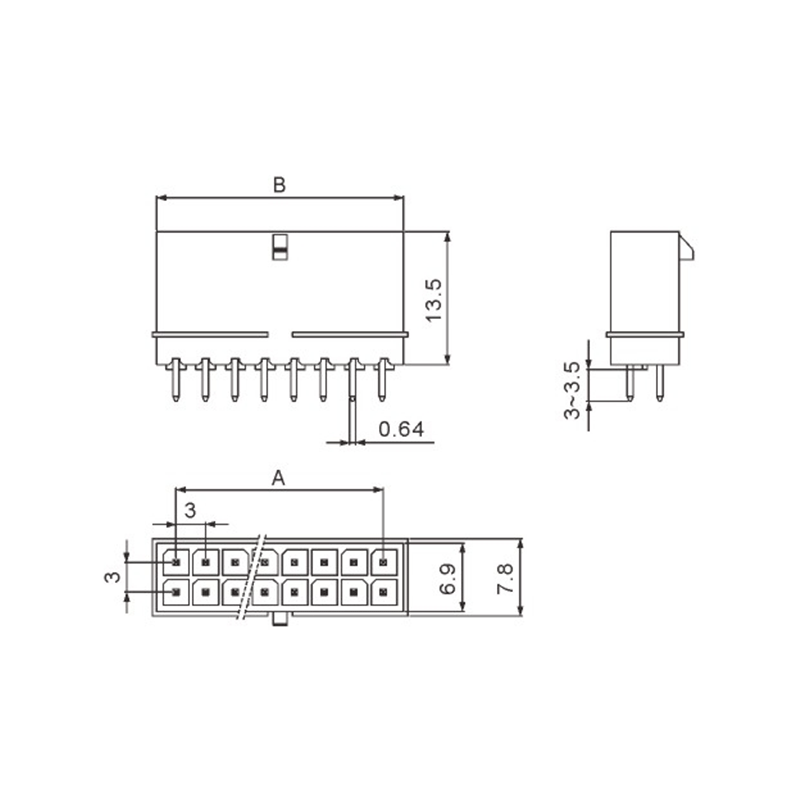

3.0mm Vertical Wire-to-Board Connector

Key Features

The connector is available in 6- and 16-circuit configurations for different PCB connection requirements.

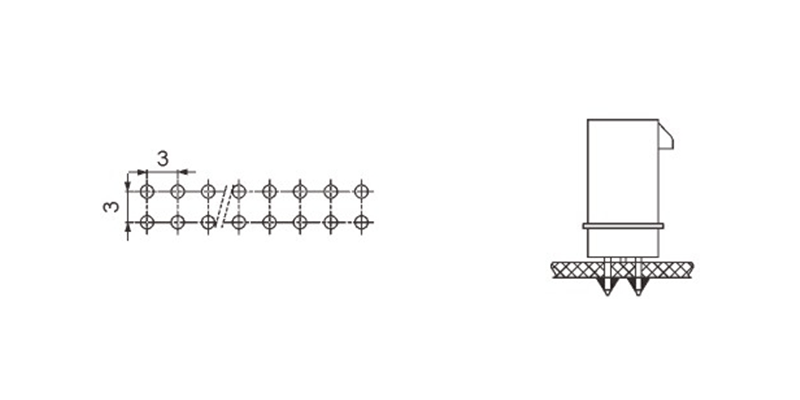

Vertical mounting supports a straight board-entry arrangement in equipment where the cable approaches perpendicular to the PCB.

The product is designed for 1.6mm PCB thickness.

A matching crimp terminal and housing arrangement supports organized wire-to-board assembly.

The 3.0mm Vertical Wire-to-Board Connector is rated at 5A and supports 0.20-0.30 mm² conductors.

Applications

The 3.0mm Vertical Wire-to-Board Connector is suitable for electronic equipment requiring a vertical PCB connector and a detachable wire harness. It can be specified for control boards, power-distribution boards, and internal equipment wiring once the circuit count and PCB layout are confirmed.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirement for quotation.

FAQ

Q1: Which circuit counts are available?
This vertical connector is available in 6- and 16-circuit versions.

Q2: What PCB thickness is required?
The confirmed applicable PCB thickness is 1.6mm.

Q3: What is the mounting orientation?
This product uses a vertical board-mounting arrangement.

Q4: Can you provide a matching wire harness?
Yes. Please provide the PCB layout, wire specification, cable length, and terminal requirements.

Request a Quote

Send your circuit count, PCB drawing, wire specification, and required quantity. We will confirm a suitable configuration for your project.
