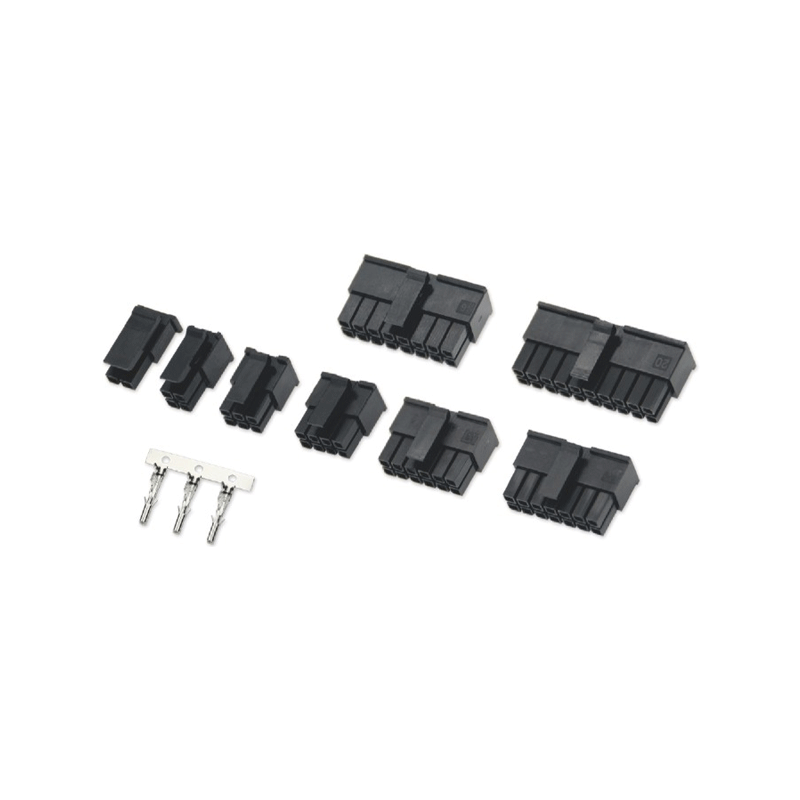

3.0mm Pitch Wire-to-Board Receptacle Connector

Key Features

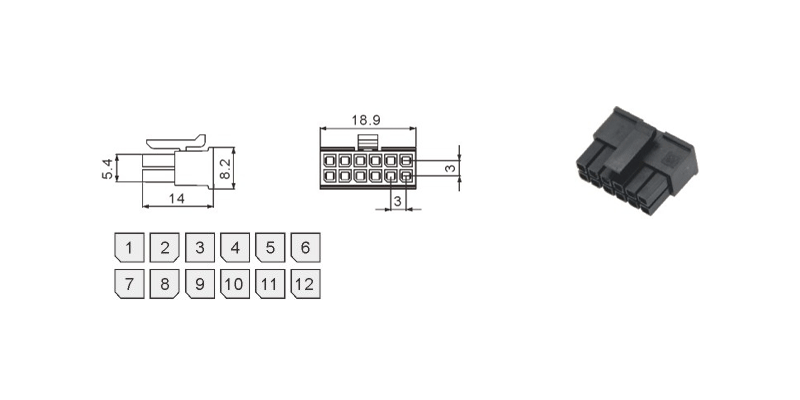

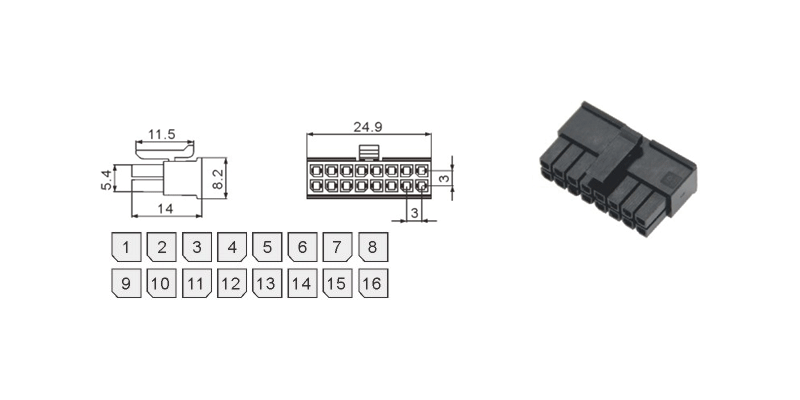

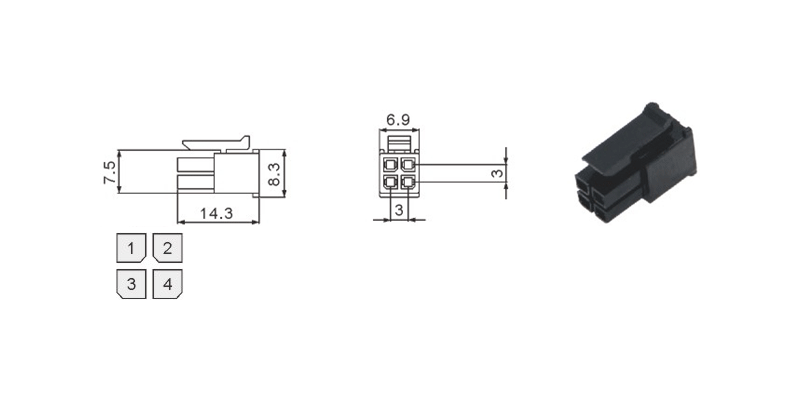

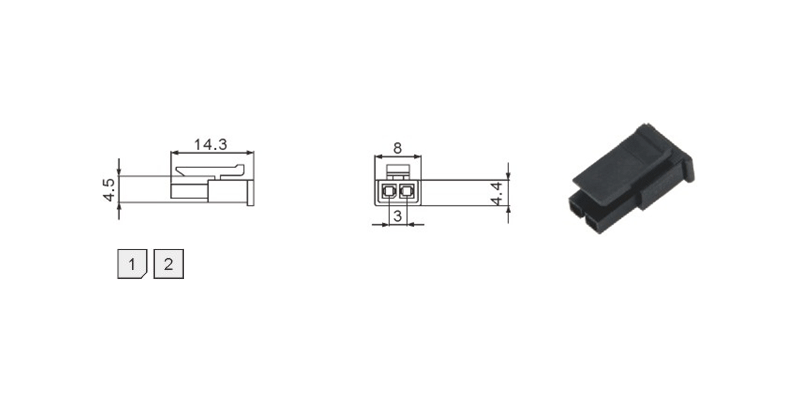

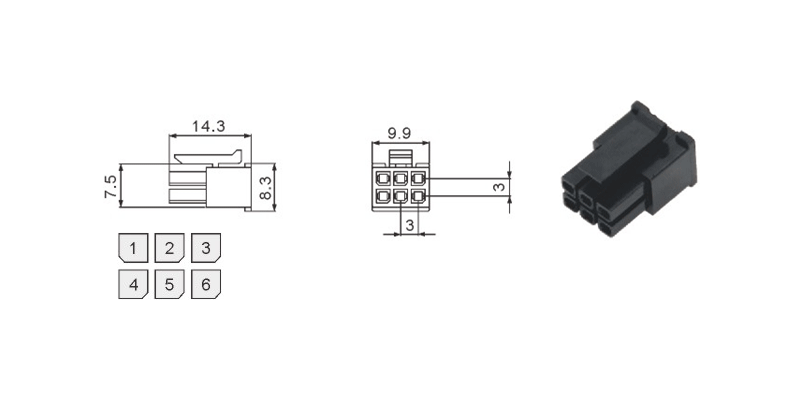

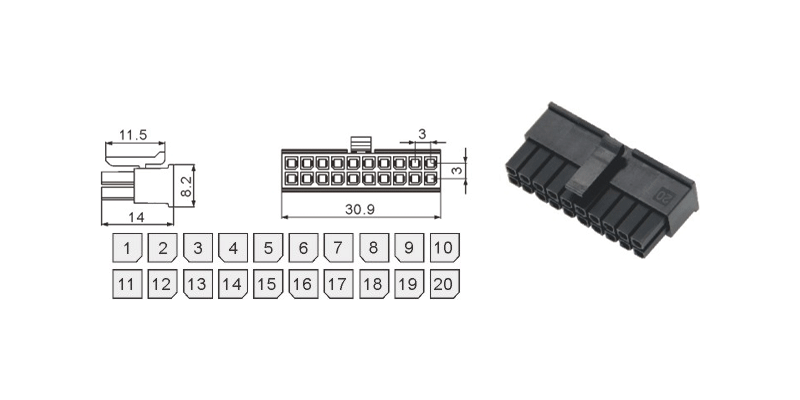

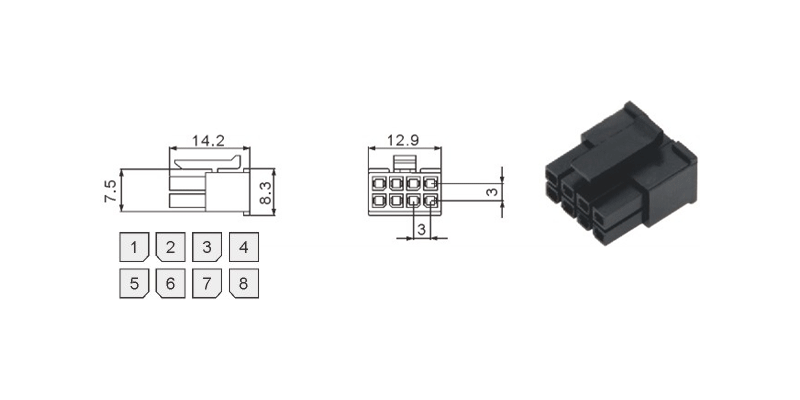

The range covers 2 to 20 circuits, including 2, 4, 6, 8, 12, 14, 16, and 20-position housings.

Rated performance is 300V AC/DC and 5A.

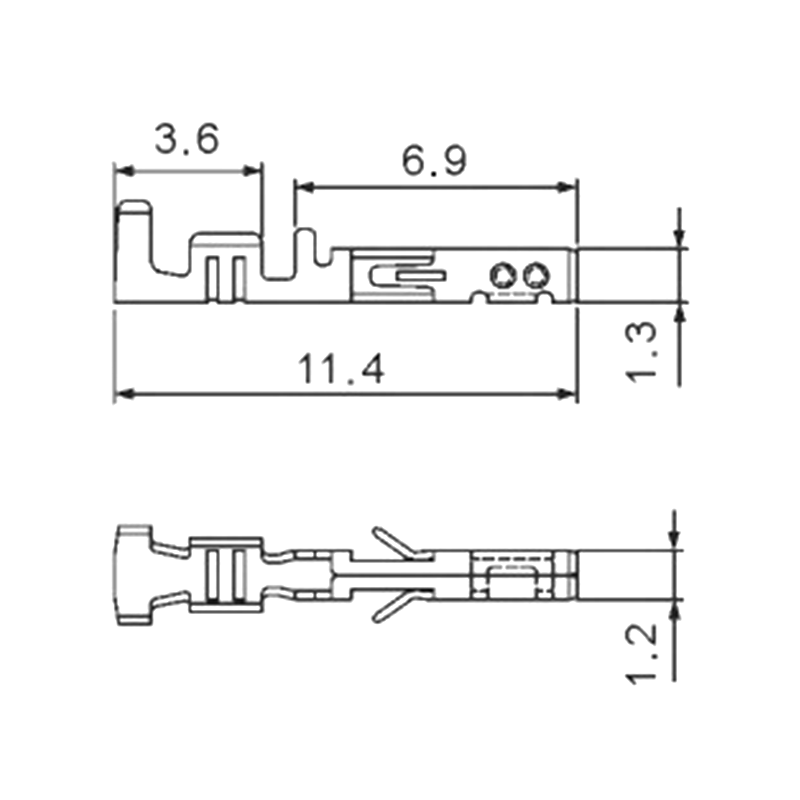

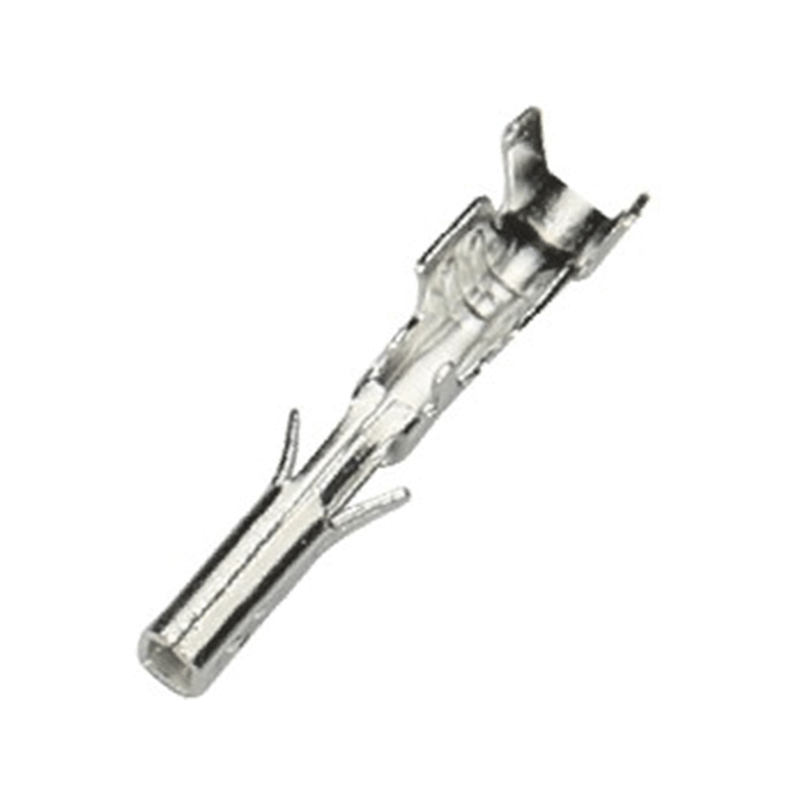

The crimp terminal supports 0.2-0.3 mm² wire, equivalent to AWG 24-22.

Phosphor-copper terminals use bright tin plating.

Black PA V-0 housings are specified.

Applications

This 3.0mm pitch wire-to-board connector is suitable for compact control modules, electrical harnesses, and equipment assemblies that use a matching 3.0mm board header. Connector selection requires circuit count, cable size, and board-side mating geometry.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: Is this a wire-to-wire connector?
No. This as a cable-side receptacle within a wire-to-board connector series, intended to mate with a compatible board header.

Q2: Which circuit counts are available?
The listed options are 2, 4, 6, 8, 12, 14, 16, and 20 circuits.

Q3: What wire size should be used?
The specified terminal range is 0.2-0.3 mm², equivalent to AWG 24-22.

Q4: Which details are required before ordering?
Confirm the circuit count, matching board header, wire size, required housing quantity, and harness application.

Request a Quote

For a 3.0 mm pitch wire-to-board receptacle connector quotation, send the circuit count and matching board-side requirements.
