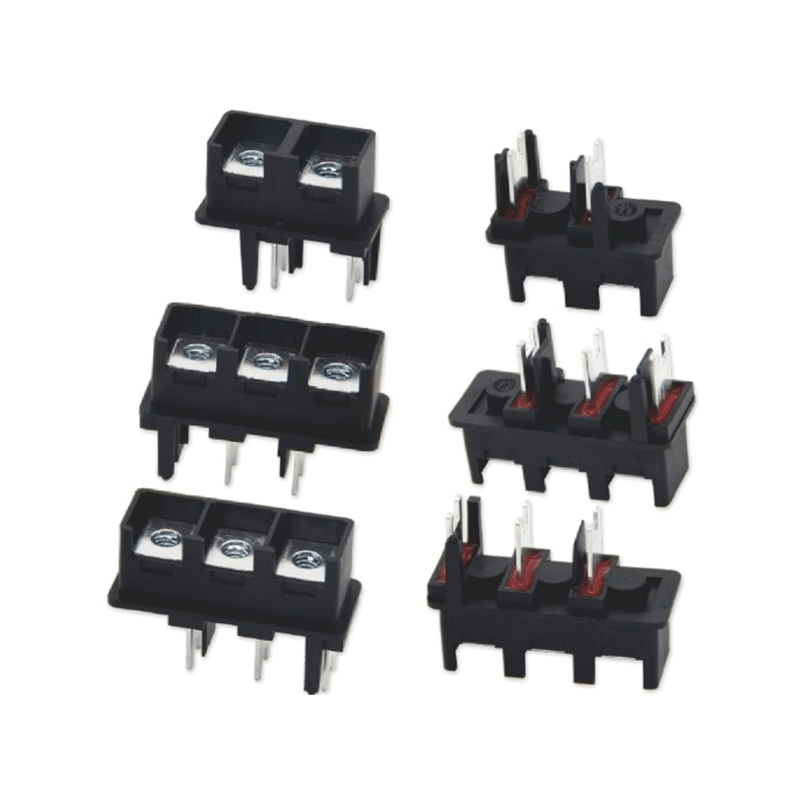

ZT2628 3-Pole M5 PCB Screw Terminal Block

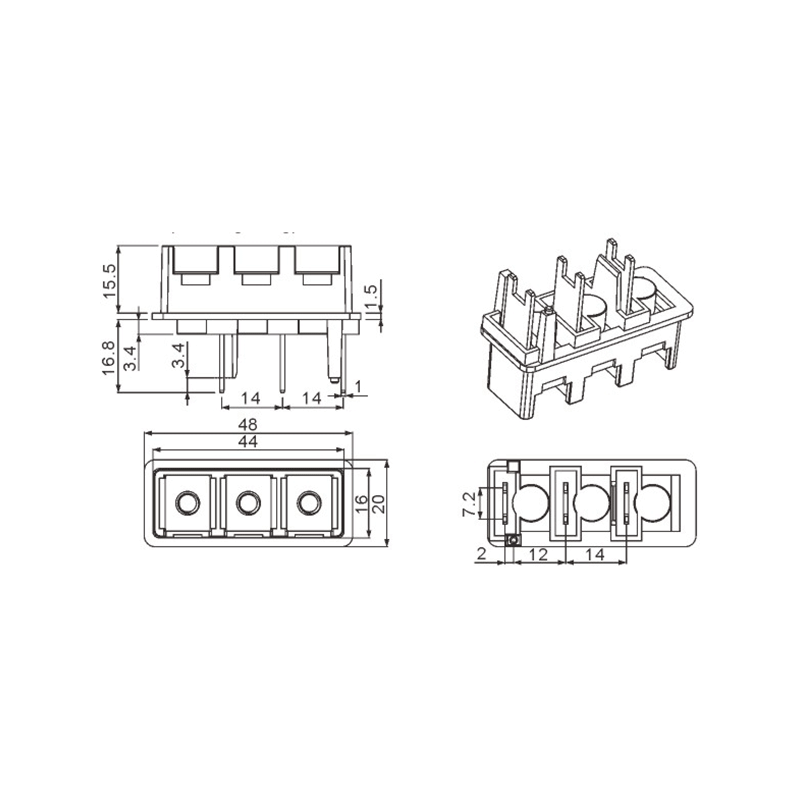

The ZT2628 3-Pole M5 PCB Screw Terminal Block is a three-position PCB terminal block with an M5 screw interface for board-level electrical distribution. It provides three connection points with a 14mm pitch and a mounting layout intended for 1.6mm PCBs.

The ZT2628 3-Pole M5 PCB Screw Terminal Block is suited to compact multi-conductor assemblies operating within the stated 40 to 1000V voltage range.

Inquiry Now
PREV：ZT2309 5-Pole M5 PCB Screw Terminal Block with Sealing Gasket NEXT：ZT2612 3-Pole M5 PCB Screw Terminal Block
  • Product Details
  • Parameter

Key Features

Three terminals provide a practical multi-conductor connection layout.

M5 nuts support screw-fastened conductor termination.

The 14mm pitch maintains defined spacing across the three poles.

PA66 housing and tin-plated brass terminals are specified.

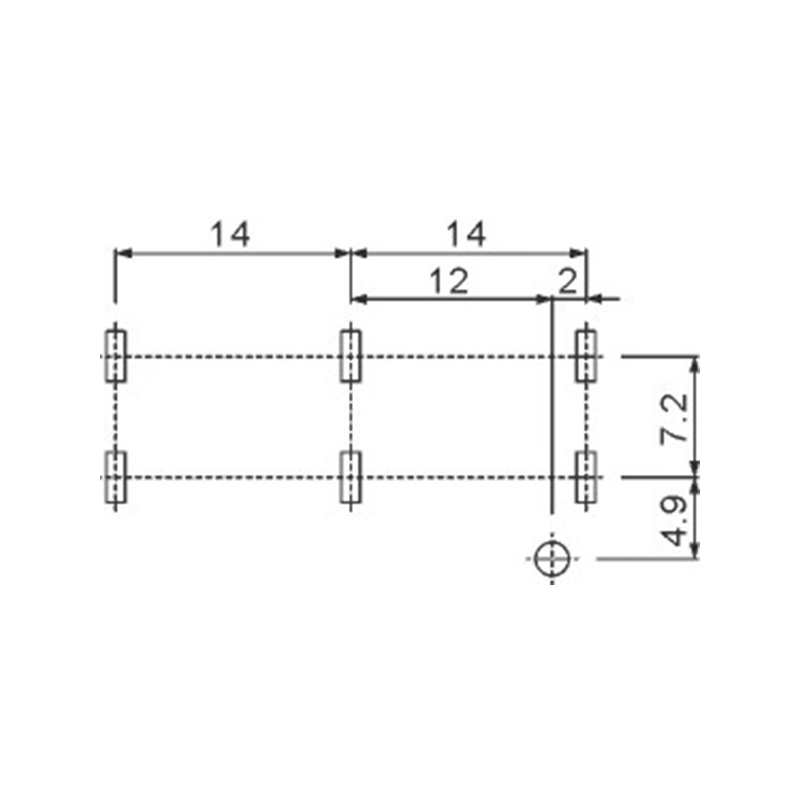

The terminal block is designed for 1.6mm PCB mounting.


Applications

PCB-mounted power terminals. Three-pole control connections.

Industrial electrical modules. Equipment requiring a screw-fixed conductor interface.


Ordering & Quotation Information

Please specify model ZT2628, the expected voltage range, conductor arrangement and board footprint. Confirm the terminal spacing before sample approval.


FAQ

Q1: What is the pole count for ZT2628?
A: ZT2628 provides three terminal positions.

Q2: What nut size is specified?
A: The product uses M5 nuts.

Q3: What PCB thickness is applicable?
A: The terminal block is specified for 1.6mm PCBs.

Q4: Is this product suitable for screw-fixed conductors?
A: Yes. The M5 terminal structure is intended for screw-fastened conductor termination.


Request a Quote

Share your conductor and board-layout requirements to quote the ZT2628 3-Pole M5 PCB Screw Terminal Block.
