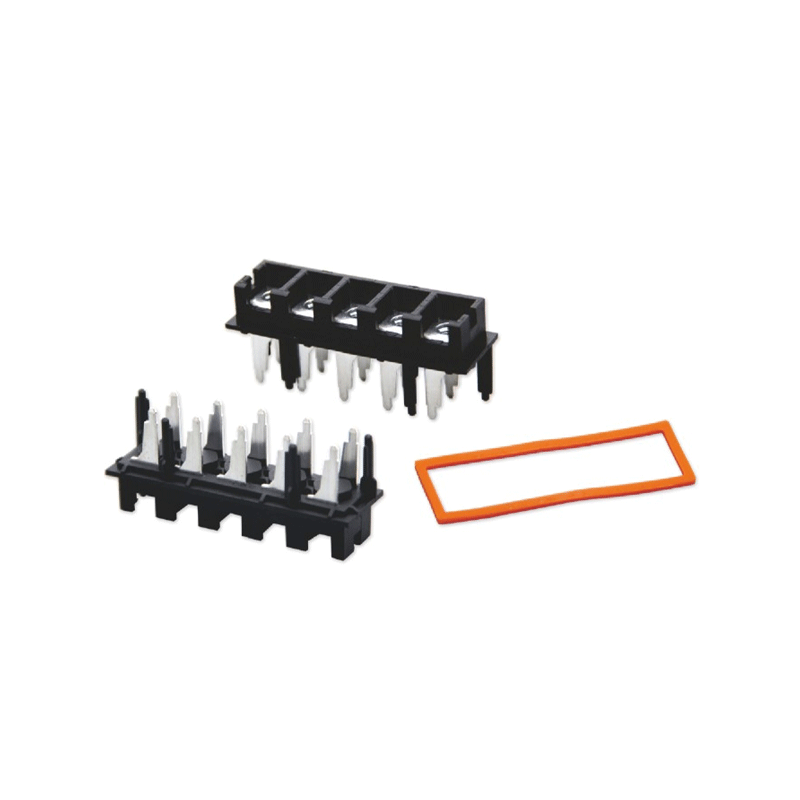

ZT2309 5-Pole M5 PCB Screw Terminal Block with Sealing Gasket

Key Features

Five independent poles help keep multi-wire connections organized on the PCB.

The matched sealing gasket is suitable for assemblies where a panel or enclosure interface requires added sealing support.

M5 fastening provides a familiar screw-secured termination method.

A 12 mm terminal pitch supports a compact five-position layout.

Applications

Motor controller boards Electric drive control modules Battery-powered equipment Compact electrical enclosures

Ordering & Quotation Information

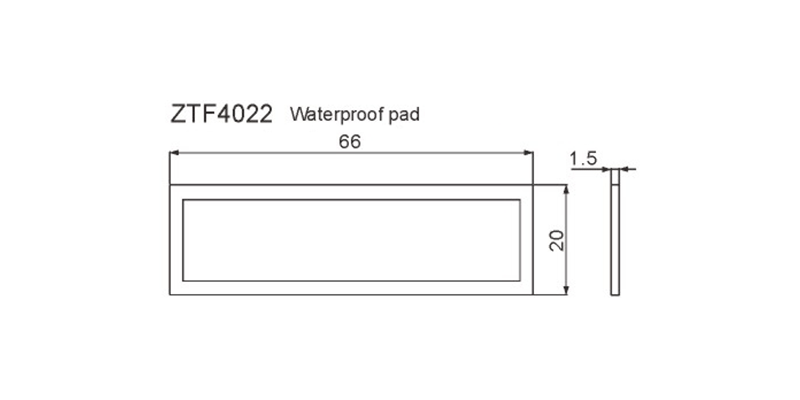

Please send the PCB drawing, wire size, required voltage, and whether the ZTF4022 sealing gasket is needed with the terminal block. This allows us to confirm the suitable supply configuration.

FAQ

Q1: Can the ZT2309 5-Pole M5 PCB Screw Terminal Block with Sealing Gasket be supplied with the gasket?
Yes. Please specify the required assembly configuration when requesting a quotation.

Q2: What is the terminal spacing?
The terminal pitch is 12 mm.

Q3: What PCB thickness is this model designed for?
It is listed for a 1.6 mm PCB.

Q4: Can you check fitment for our controller board?
Yes. Send the PCB layout and mounting dimensions for an application review.

Request a Quote

Send your drawing and quantity requirement for the ZT2309 5-Pole M5 PCB Screw Terminal Block with Sealing Gasket. We will confirm the configuration and prepare a quotation.
