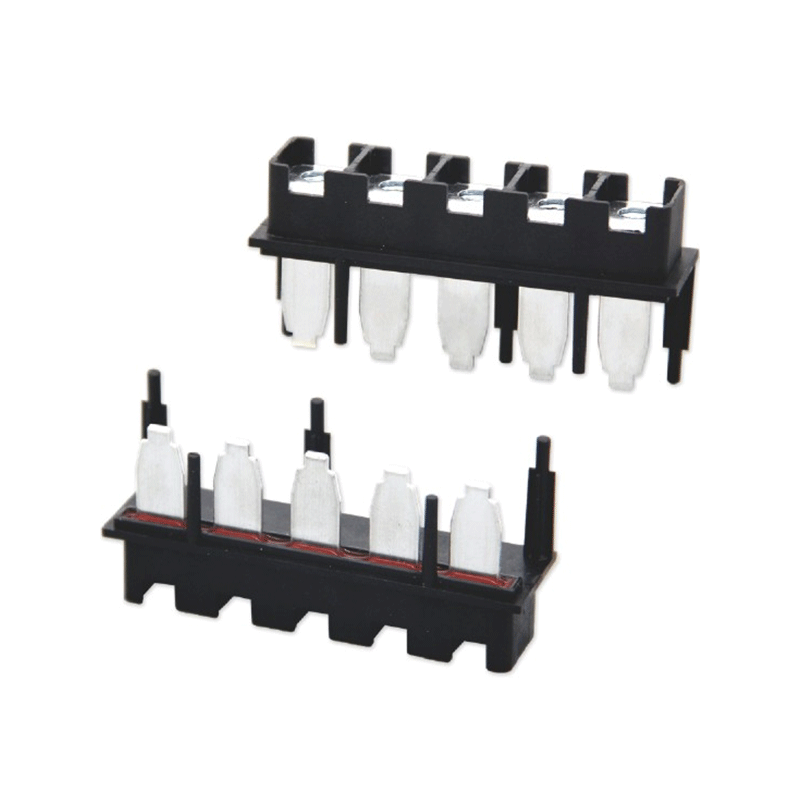

ZT2316 5-Pole M5 PCB Screw Terminal Block

The ZT2316 5-Pole M5 PCB Screw Terminal Block is a five-position board terminal block with a 13mm pitch for electrical assemblies requiring separate screw connections across five poles. Its board-mounted structure is specified for 1.6mm PCBs.

The ZT2316 5-Pole M5 PCB Screw Terminal Block uses M5 nuts, a PA66 housing and tin-plated brass terminals for the listed 40 to 1000V operating range.

Inquiry Now
PREV：ZT2240 5-Pole M5 PCB Screw Terminal Block NEXT：ZT2309 5-Pole M5 PCB Screw Terminal Block with Sealing Gasket
  • Product Details
  • Parameter

Key Features

Five terminal positions support multi-point wiring in one PCB component.

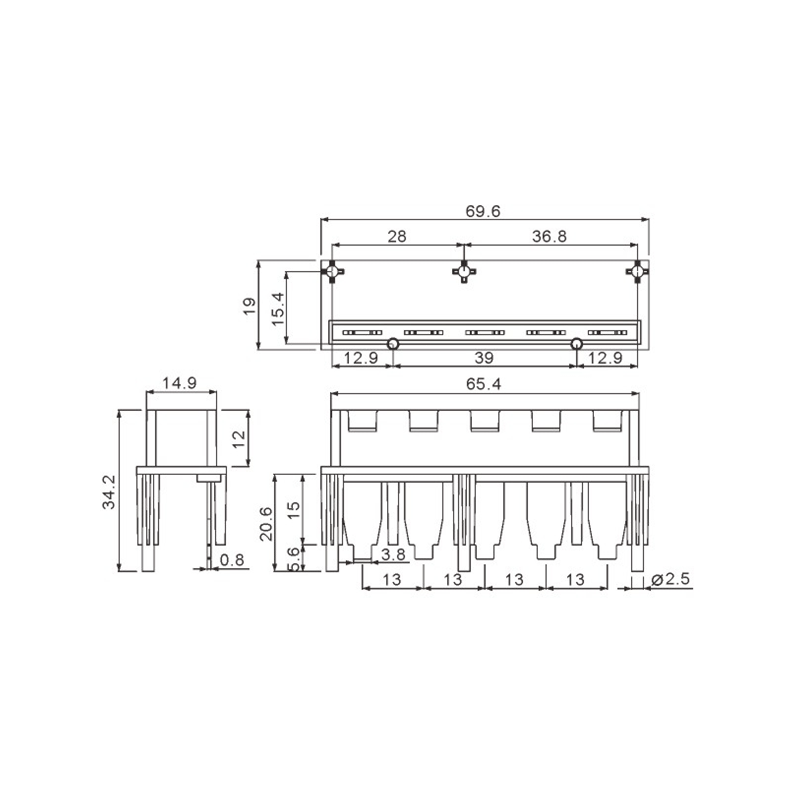

The 13mm pitch provides a distinct spacing arrangement for five-pole installations.

M5 nuts enable screw-secured conductor connections.

The housing is specified in PA66 with brass, tin-plated terminals.

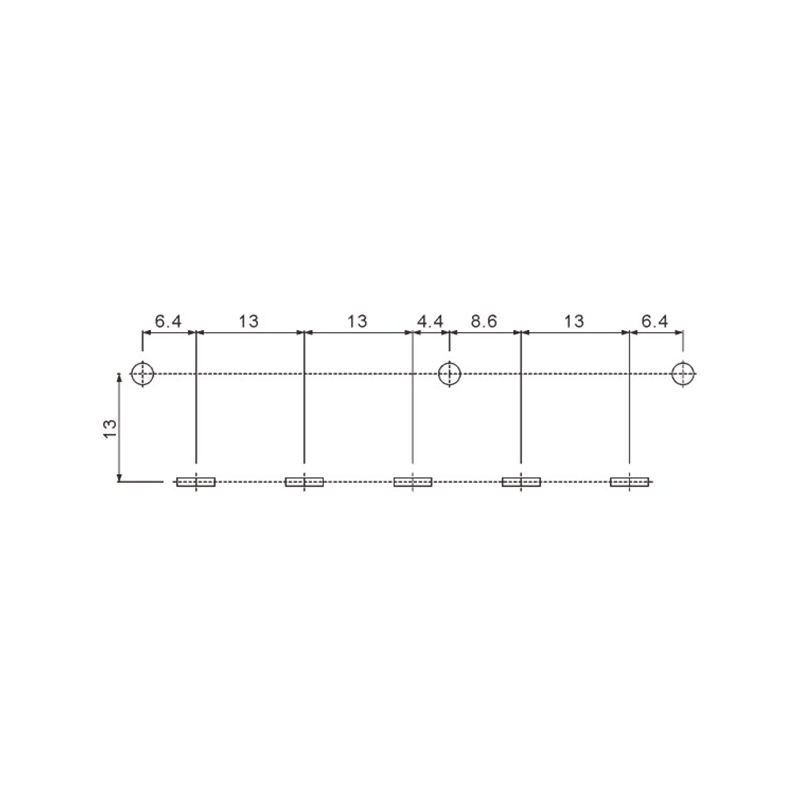

The mounting layout is designed for 1.6mm PCB installation.


Applications

Industrial controller boards. Five-wire power and control interfaces.

Electrical cabinet subassemblies. PCB-mounted terminal points with 13mm spacing.


Ordering & Quotation Information

Please specify the required conductor layout, board footprint and purchasing quantity. Ensure that the 13mm pitch matches the intended PCB design before ordering.


FAQ

Q1: What makes this model suitable for five-wire wiring?
A: The product provides five separate M5 terminal positions in one board-mounted block.

Q2: What terminal pitch is used?
A: ZT2316 uses a 13mm terminal pitch.

Q3: Is the housing material specified?
A: Yes. The housing material is PA66.

Q4: What PCB thickness is applicable?
A: The listed applicable PCB thickness is 1.6mm.


Request a Quote

Provide your board layout and conductor details to quote the ZT2316 5-Pole M5 PCB Screw Terminal Block.
