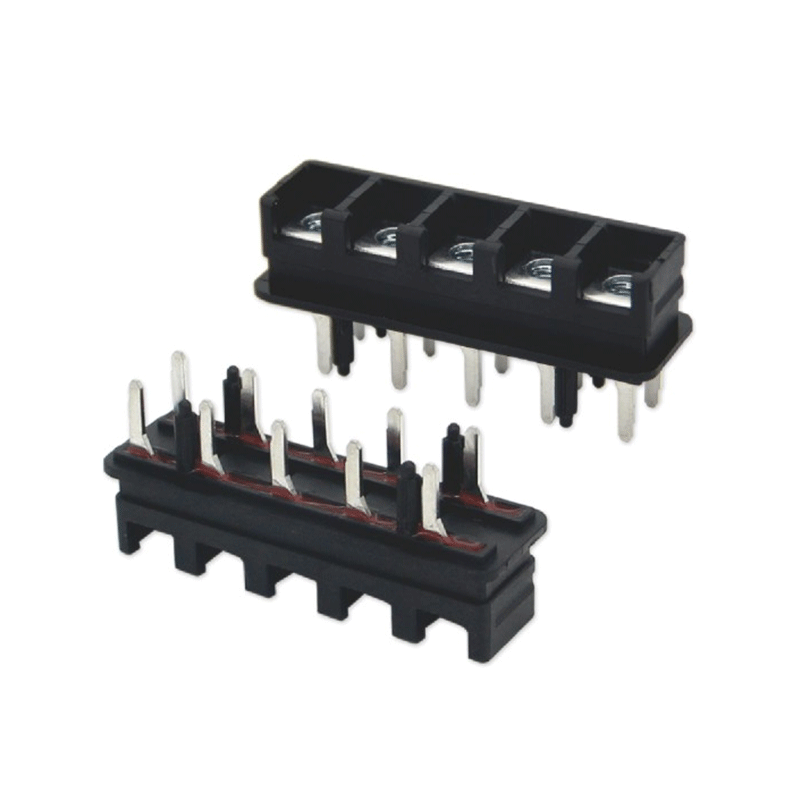

ZT2240 5-Pole M5 PCB Screw Terminal Block

The ZT2240 5-Pole M5 PCB Screw Terminal Block is a five-position terminal block for PCB-mounted power and control connections. It combines a five-pole M5 screw interface with a 12mm terminal pitch for compact multi-conductor board assemblies.

The ZT2240 5-Pole M5 PCB Screw Terminal Block is specified for 1.6mm PCBs and uses a PA66 housing with tin-plated brass terminal components.

Inquiry Now
PREV：ZT2618 5-Pole M5 PCB Screw Terminal Block NEXT：ZT2316 5-Pole M5 PCB Screw Terminal Block
  • Product Details
  • Parameter

Key Features

Five M5 terminals provide a single connection point for multiple conductors.

A 12mm pitch supports a compact five-pole arrangement.

The terminal block uses a long, board-mounted housing format.

PA66 housing material is specified for the body.

Brass terminals use a tin-plated finish.


Applications

PCB power-distribution modules. Five-pole industrial control connections.

Electrical equipment with grouped conductor terminals. Compact control-panel assemblies.


Ordering & Quotation Information

Please provide the required voltage range, conductor specification, PCB dimensions and order quantity. Confirm the five-pole pitch and mounting footprint before project approval.


FAQ

Q1: How many terminal positions are available?
A: ZT2240 provides five M5 connection positions.

Q2: What terminal pitch is used?
A: The terminal pitch is 12mm.

Q3: Is this a PCB-mounted terminal block?
A: Yes. The product is specified for a 1.6mm PCB.

Q4: What terminal material is listed?
A: The terminal is brass with a tin-plated finish.


Request a Quote

Send your conductor and board requirements to quote the ZT2240 5-Pole M5 PCB Screw Terminal Block.
