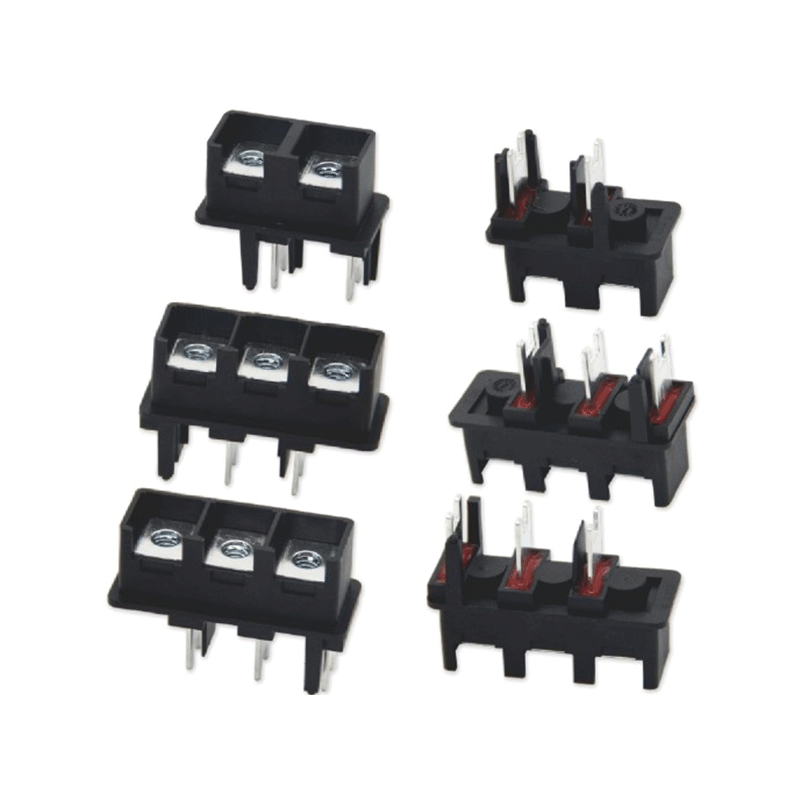

ZT2612 3-Pole M5 PCB Screw Terminal Block

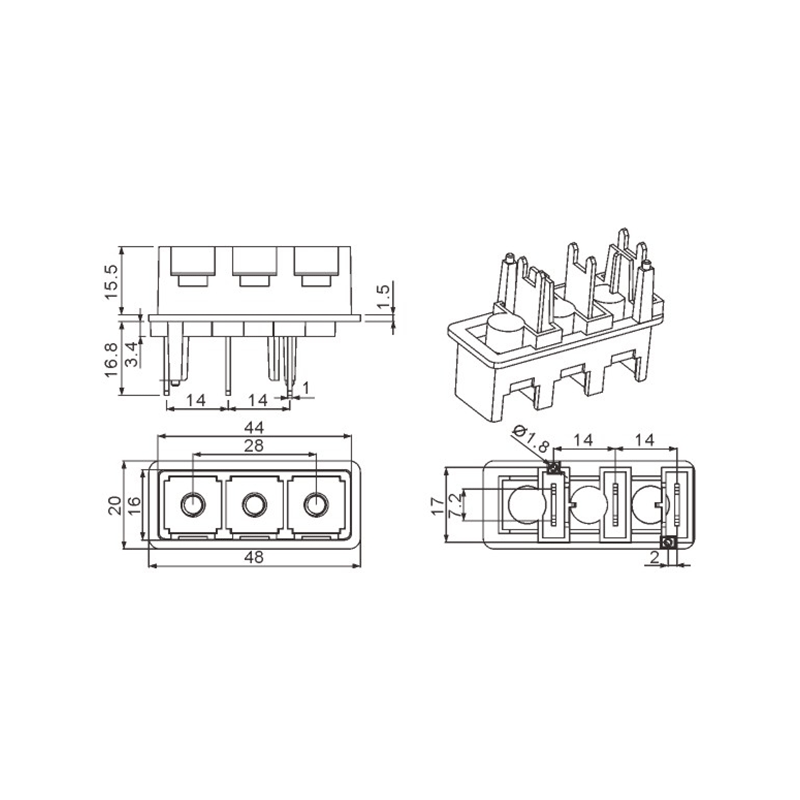

The ZT2612 3-Pole M5 PCB Screw Terminal Block is a three-position board terminal block for power and control connections that require screw-secured conductors. Its 14mm terminal pitch supports a compact three-pole layout on a 1.6mm PCB.

The ZT2612 3-Pole M5 PCB Screw Terminal Block uses a PA66 housing and tin-plated brass terminals for applications within the listed 40 to 1000V range.

Inquiry Now
PREV：ZT2628 3-Pole M5 PCB Screw Terminal Block NEXT：ZT2611 2-Pole M5 PCB Screw Terminal Block
  • Product Details
  • Parameter

Key Features

Three M5 terminal positions support separate conductor connections.

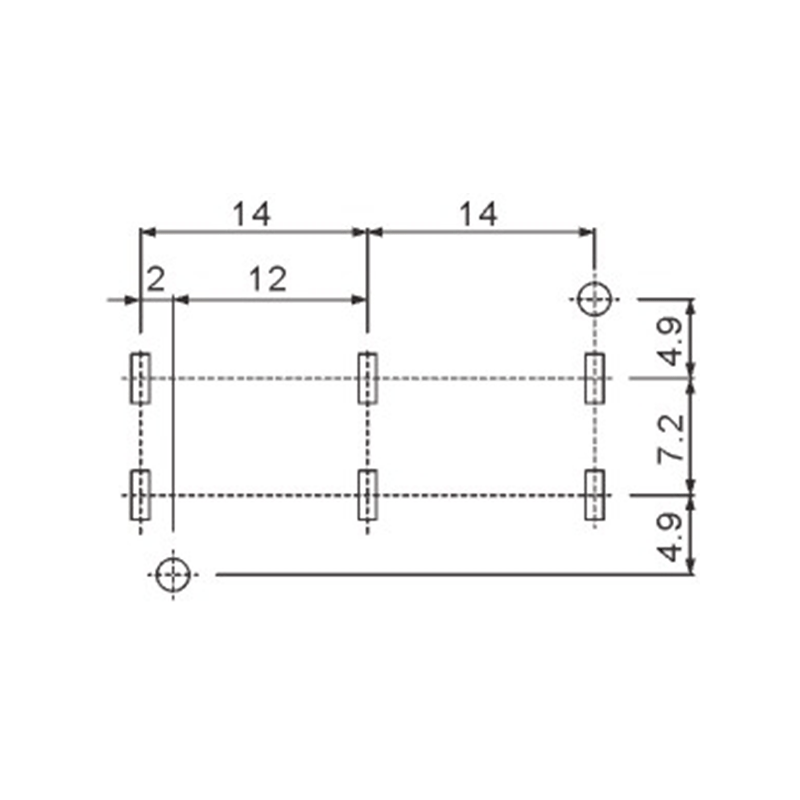

A 14mm pitch provides a compact three-pole arrangement.

The board-mount design is specified for 1.6mm PCBs.

PA66 housing material is listed for the terminal-block body.

Tin-plated brass terminals provide the specified connection interface.


Applications

Three-conductor PCB terminals. Control-board power connections.

Industrial electrical distribution points. Compact equipment wiring interfaces.


Ordering & Quotation Information

Please provide the required conductor specification, voltage range, PCB layout and order quantity. Confirm the 14mm pitch before using the product in an existing board design.


FAQ

Q1: How many connection positions are available?
A: ZT2612 provides three M5 terminal positions.

Q2: What terminal pitch does the model use?
A: The listed terminal pitch is 14mm.

Q3: Is the product designed for PCB mounting?
A: Yes. The applicable PCB thickness is 1.6mm.

Q4: What material is used for the terminals?
A: The terminals are brass with a tin-plated finish.


Request a Quote

Send your wiring and PCB requirements to quote the ZT2612 3-Pole M5 PCB Screw Terminal Block.
