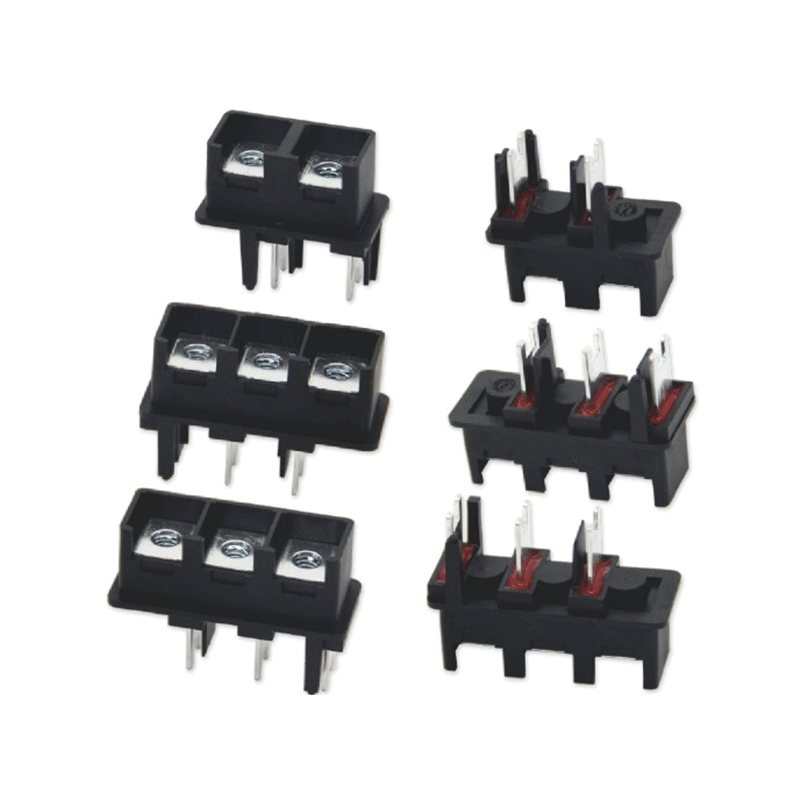

ZT2611 2-Pole M5 PCB Screw Terminal Block

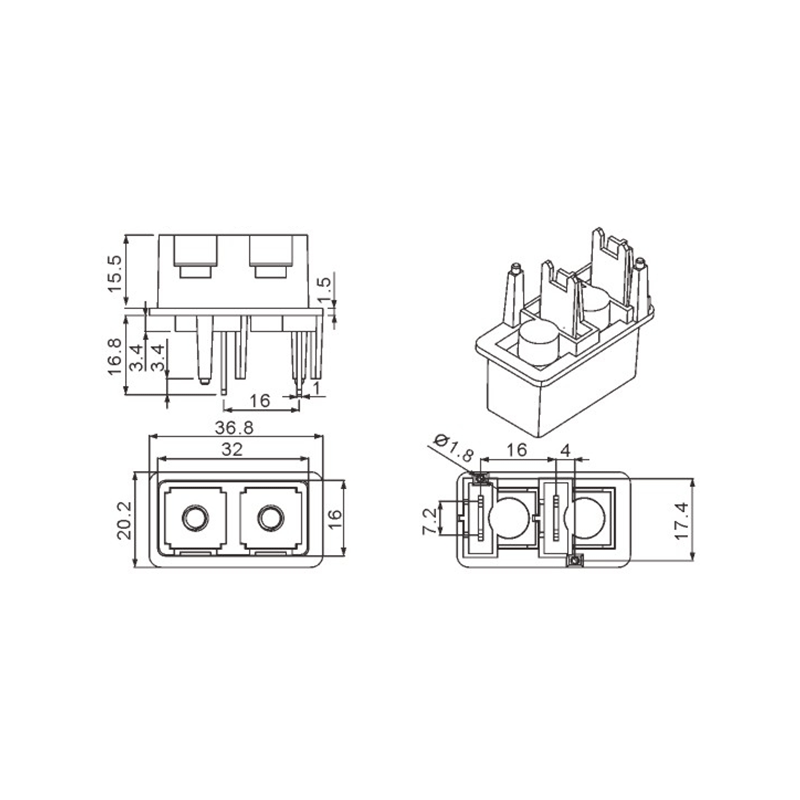

The ZT2611 2-Pole M5 PCB Screw Terminal Block is a two-position board-mounted terminal block for screw-connected power and control wiring. It uses an M5 nut interface, a 16mm terminal pitch and a distinct compact housing structure for 1.6mm PCB assembly.

The ZT2611 2-Pole M5 PCB Screw Terminal Block is designed for two-pole connections within the listed 40 to 1000V range.

Inquiry Now
PREV：ZT2612 3-Pole M5 PCB Screw Terminal Block NEXT：ZT2205-B1 3-Pole M5 Sealed PCB Screw Terminal Block
  • Product Details
  • Parameter

Key Features

Two M5 terminal positions provide a compact connection interface.

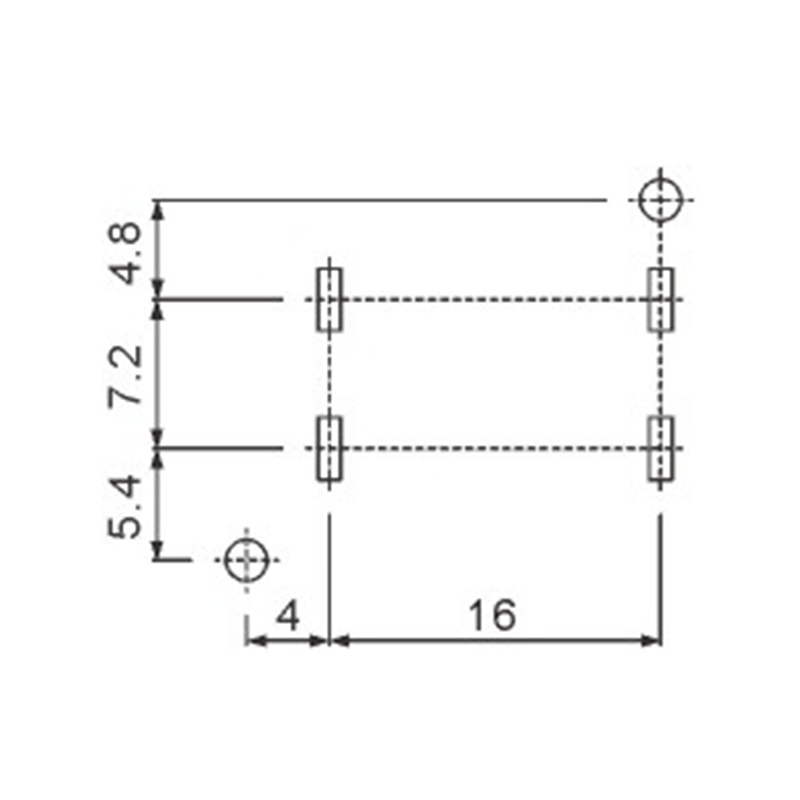

The 16mm pitch supports controlled spacing between poles.

A 1.6mm PCB mounting arrangement is specified.

PA66 housing material is used for the terminal-block body.

Tin-plated brass terminals provide the listed connection points.


Applications

Two-pole power-entry points. Industrial control boards.

PCB terminal connections in electrical equipment. Compact power and signal distribution modules.


Ordering & Quotation Information

Please provide the conductor specification, expected voltage range, PCB layout and order quantity. Confirm the M5 connection requirement before selecting the terminal block.


FAQ

Q1: How many poles does ZT2611 provide?
A: ZT2611 provides two terminal positions.

Q2: What nut size is used?
A: The terminal block uses an M5 nut interface.

Q3: What terminal pitch is specified?
A: The listed terminal pitch is 16mm.

Q4: Is the product suitable for a 1.6mm PCB?
A: Yes. The applicable PCB thickness is 1.6mm.


Request a Quote

Send your PCB and conductor requirements to quote the ZT2611 2-Pole M5 PCB Screw Terminal Block.
