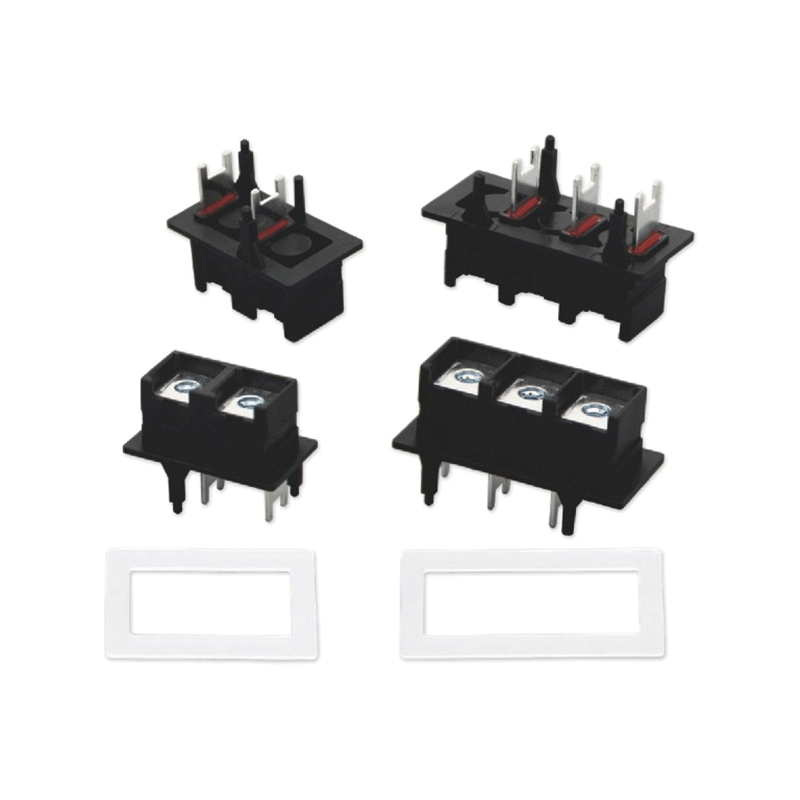

ZT2205-B1 3-Pole M5 Sealed PCB Screw Terminal Block

The ZT2205-B1 3-Pole M5 Sealed PCB Screw Terminal Block is a three-position PCB terminal block with M5 nuts and a matched waterproof-pad interface. The B1 configuration is intended for projects that need a compact three-pole board connection with a specified sealing component.

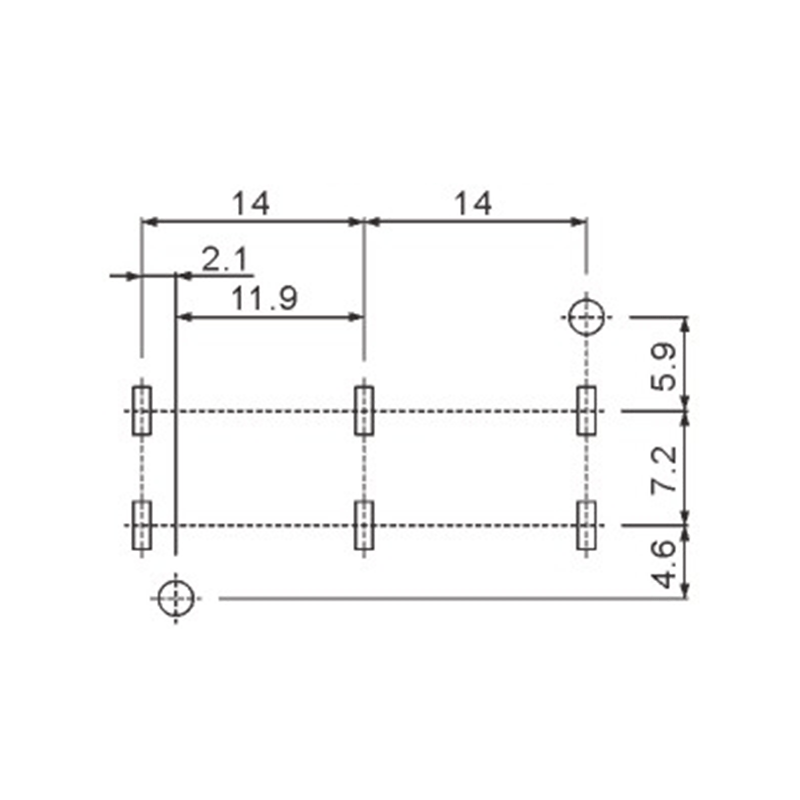

The ZT2205-B1 3-Pole M5 Sealed PCB Screw Terminal Block uses a 14mm terminal pitch and is suitable for mounting on a 1.6mm PCB.

Inquiry Now
PREV：ZT2611 2-Pole M5 PCB Screw Terminal Block NEXT：ZT2204-B1 2-Pole M5 Sealed PCB Screw Terminal Block
  • Product Details
  • Parameter

Key Features

Three M5 connection points provide separate termination positions.

The B1 configuration provides a dedicated three-pole mounting structure.

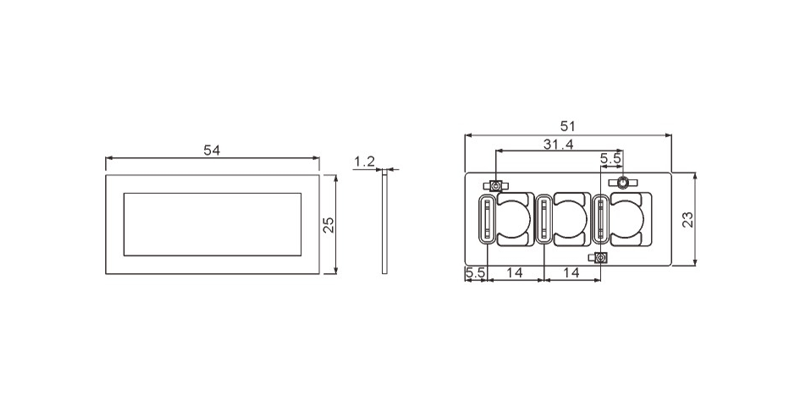

A matched waterproof pad supports protected PCB installation.

The 14mm terminal pitch supports a compact wiring layout.

PA66 housing and tin-plated brass terminals are specified.


Applications

Three-wire control-board terminals. Protected electrical distribution points.

Compact PCB power interfaces. Industrial equipment with three-pole connection requirements.


Ordering & Quotation Information

Please provide the model code, required quantity, conductor arrangement and PCB footprint. Confirm the ZTF4004-A waterproof pad if a sealed installation is required.


FAQ

Q1: What distinguishes the B1 version during ordering?
A: The model code ZT2205-B1 identifies this specific three-pole mounting configuration.

Q2: How many poles does the product provide?
A: The terminal block provides three M5 terminal positions.

Q3: Which waterproof pad is used?
A: The listed waterproof pad is ZTF4004-A.

Q4: What is the terminal pitch?
A: The terminal pitch is 14mm.


Request a Quote

Share your three-pole wiring information to quote the ZT2205-B1 3-Pole M5 Sealed PCB Screw Terminal Block.
