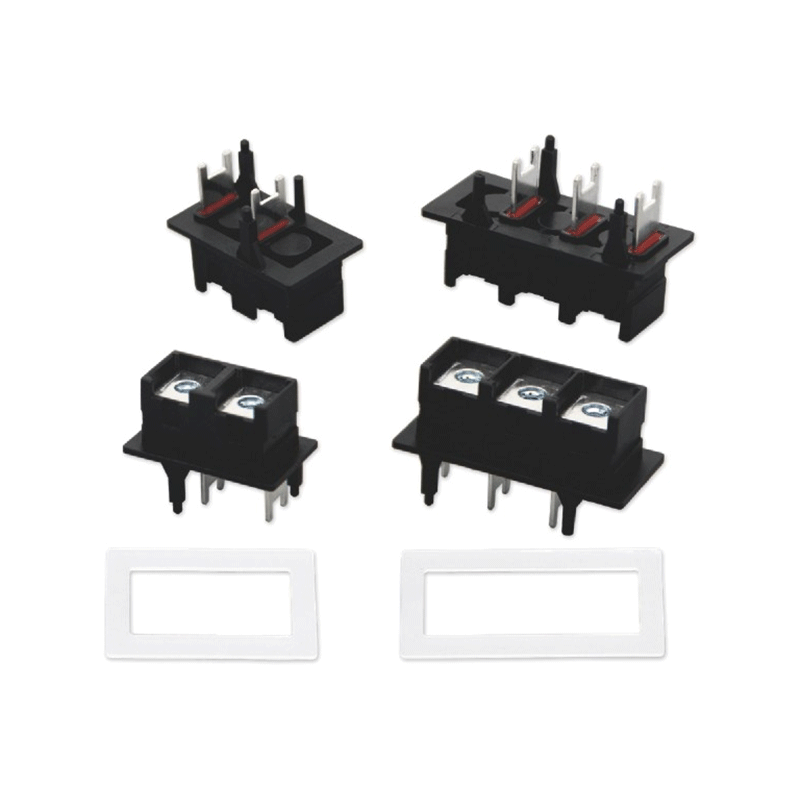

ZT2204-B1 2-Pole M5 Sealed PCB Screw Terminal Block

The ZT2204-B1 2-Pole M5 Sealed PCB Screw Terminal Block is a two-position terminal block with an M5 screw interface and a dedicated waterproof-pad arrangement. The B1 configuration provides a distinct PCB mounting structure for compact two-pole electrical connections.

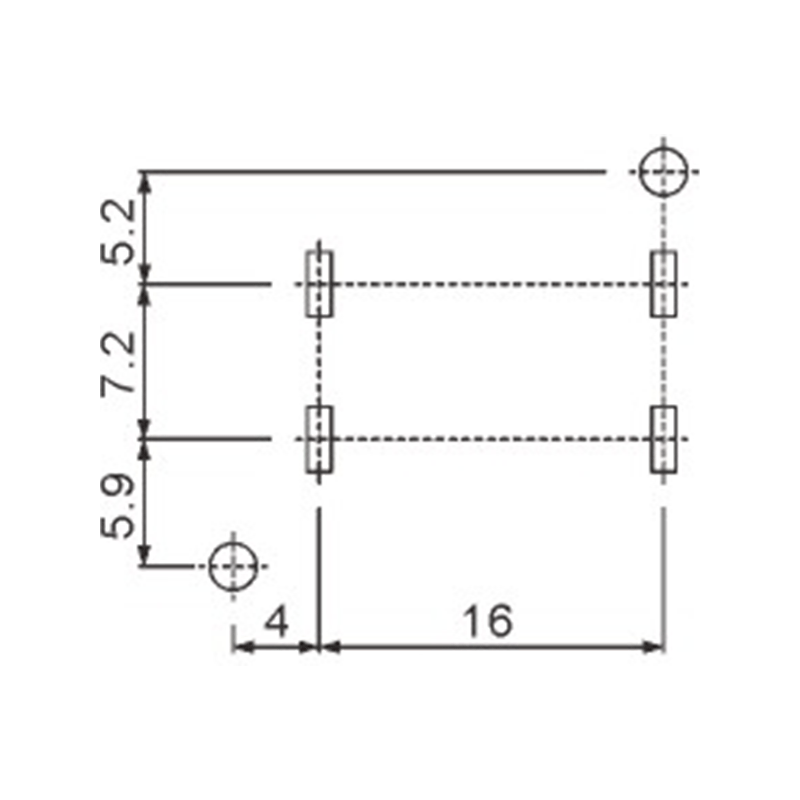

The ZT2204-B1 2-Pole M5 Sealed PCB Screw Terminal Block uses a 16mm terminal pitch and is specified for use on 1.6mm PCBs within a 40 to 1000V voltage range.

Inquiry Now
PREV：ZT2205-B1 3-Pole M5 Sealed PCB Screw Terminal Block NEXT：ZT2205-C 3-Pole M5 Sealed PCB Screw Terminal Block
  • Product Details
  • Parameter

Key Features

The B1 configuration provides a dedicated two-pole terminal-block structure.

Two M5 connection points support screw-secured conductor termination.

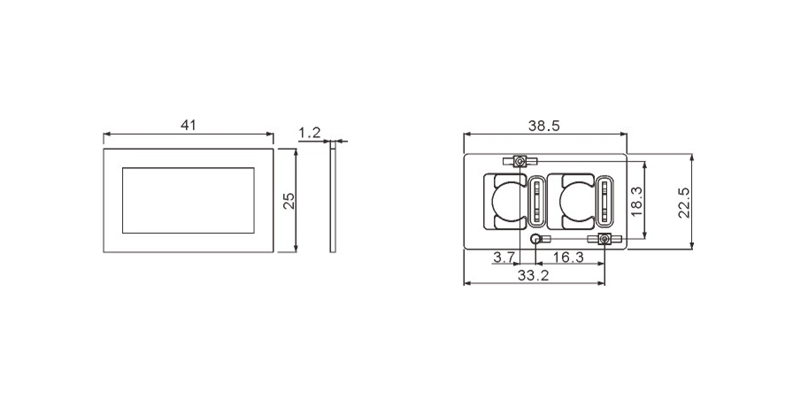

A matched waterproof pad supports the specified sealing arrangement.

The 16mm pitch maintains defined spacing between the two poles.

PA66 and tin-plated brass are specified for the housing and terminal components.


Applications

Two-pole PCB power interfaces. Industrial control-board assemblies.

Electrical terminals requiring a matched sealing component. Compact equipment power-entry connections.


Ordering & Quotation Information

Please specify the B1 model, conductor arrangement, PCB footprint and waterproof-pad requirement. This helps ensure the correct mounting configuration is quoted.


FAQ

Q1: What is the key ordering identifier for this version?
A: Specify model ZT2204-B1 to identify this two-pole configuration.

Q2: Does it use M5 connection points?
A: Yes. The product uses two M5 connection points.

Q3: What waterproof pad is used?

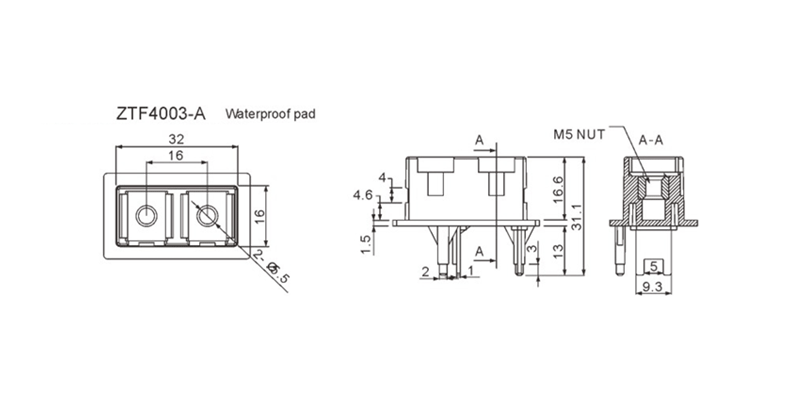

A: The listed matched waterproof pad is ZTF4003-A.

Q4: What PCB thickness is applicable?
A: The stated applicable PCB thickness is 1.6mm.


Request a Quote

Send the required quantity and PCB details to quote the ZT2204-B1 2-Pole M5 Sealed PCB Screw Terminal Block.
