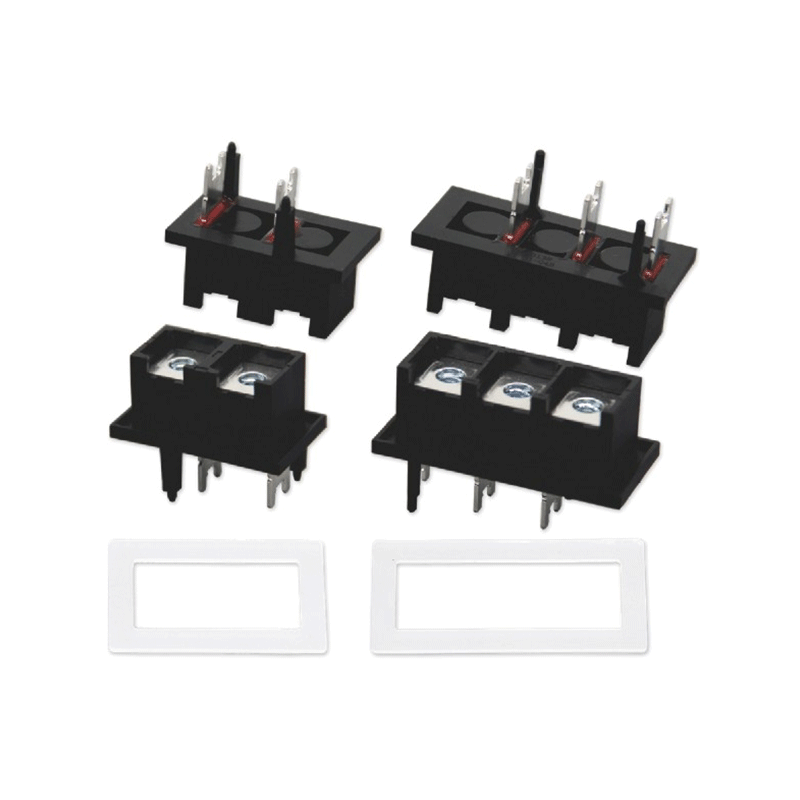

ZT2205-C 3-Pole M5 Sealed PCB Screw Terminal Block

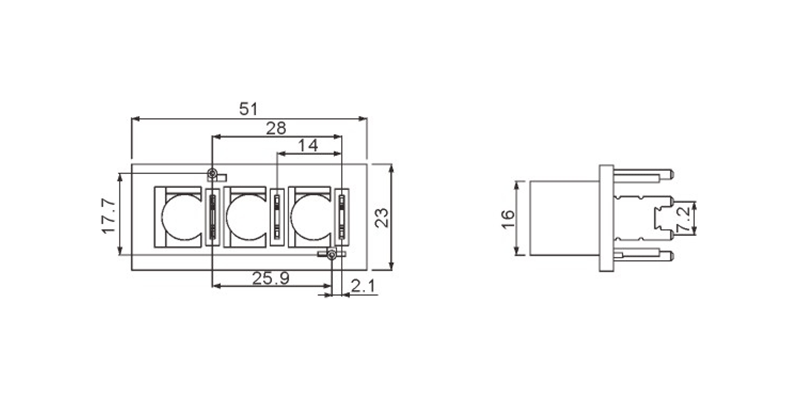

The ZT2205-C 3-Pole M5 Sealed PCB Screw Terminal Block is a three-position board terminal block for assemblies requiring a sealed three-pole screw connection. It uses M5 connection points and a 14mm terminal pitch for a compact PCB-mounted layout.

The ZT2205-C 3-Pole M5 Sealed PCB Screw Terminal Block is specified for 1.6mm PCBs and combines a PA66 housing, tin-plated brass terminals and a matched waterproof pad.

Inquiry Now
PREV：ZT2204-B1 2-Pole M5 Sealed PCB Screw Terminal Block NEXT：ZT2204-C 2-Pole M5 Sealed PCB Screw Terminal Block
  • Product Details
  • Parameter

Key Features

Three M5 connection points support three-conductor termination.

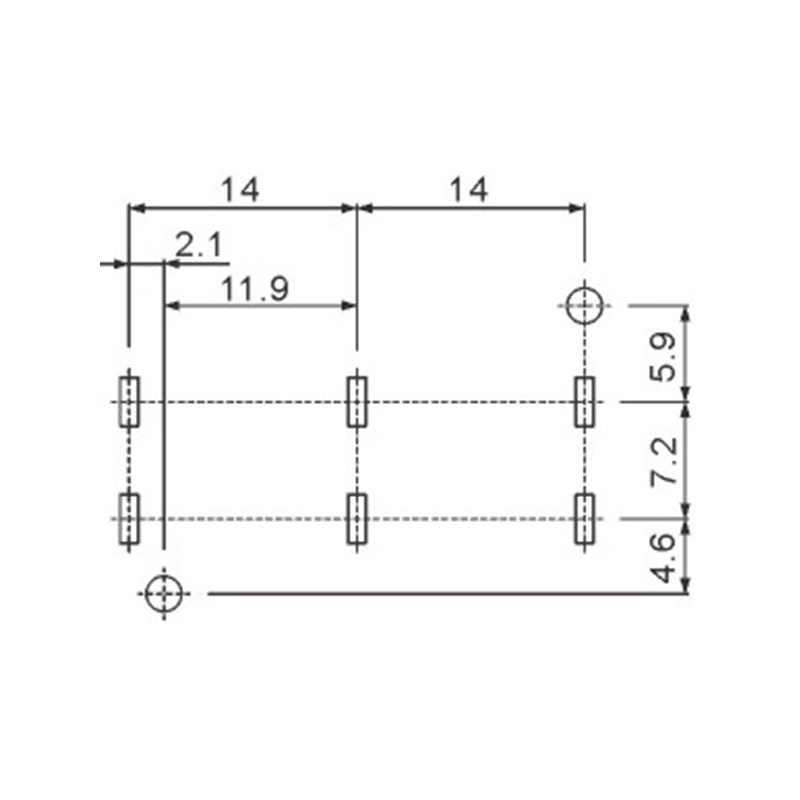

A 14mm terminal pitch provides a compact three-pole layout.

The matched waterproof pad supports protected board installation.

The PA66 body carries tin-plated brass terminal components.

The product is specified for a 40 to 1000V voltage range.


Applications

Three-pole control-board connections. Compact electrical distribution modules.

Protected industrial terminal interfaces. PCB-mounted multi-conductor wiring points.


Ordering & Quotation Information

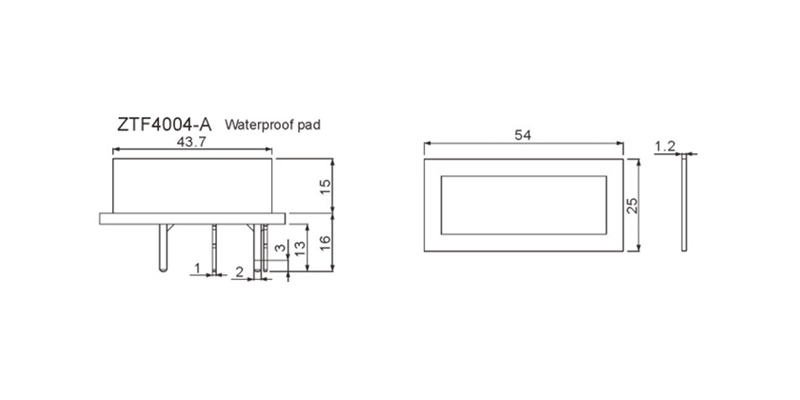

Please confirm the required conductor arrangement, board dimensions and waterproof-pad requirement. The ZTF4004-A pad should be selected together with the terminal block.


FAQ

Q1: Is this a two-pole or three-pole terminal block?
A: ZT2205-C is a three-pole terminal block.

Q2: What nut size is used?
A: The connection interface uses M5 nuts.

Q3: Which waterproof pad is matched to this model?
A: The listed waterproof pad is ZTF4004-A.

Q4: What terminal pitch does the product use?
A: The listed terminal pitch is 14mm.


Request a Quote

Provide your three-pole wiring requirements to quote the ZT2205-C 3-Pole M5 Sealed PCB Screw Terminal Block.
