ZT2204-C 2-Pole M5 Sealed PCB Screw Terminal Block

The ZT2204-C 2-Pole M5 Sealed PCB Screw Terminal Block is a two-position board terminal for screw-secured electrical connections with a matched waterproof pad. It is designed for a 1.6mm PCB and uses a 16mm terminal pitch.

The ZT2204-C 2-Pole M5 Sealed PCB Screw Terminal Block provides two M5 connection points for compact power or control wiring within the stated 40 to 1000V range.

Inquiry Now
PREV：ZT2205-C 3-Pole M5 Sealed PCB Screw Terminal Block NEXT：ZT2305 3-Pole M5 Sealed PCB Screw Terminal Block
  • Product Details
  • Parameter

Key Features

Two M5 terminal positions provide a compact two-pole connection layout.

A matched waterproof pad supports a protected PCB mounting interface.

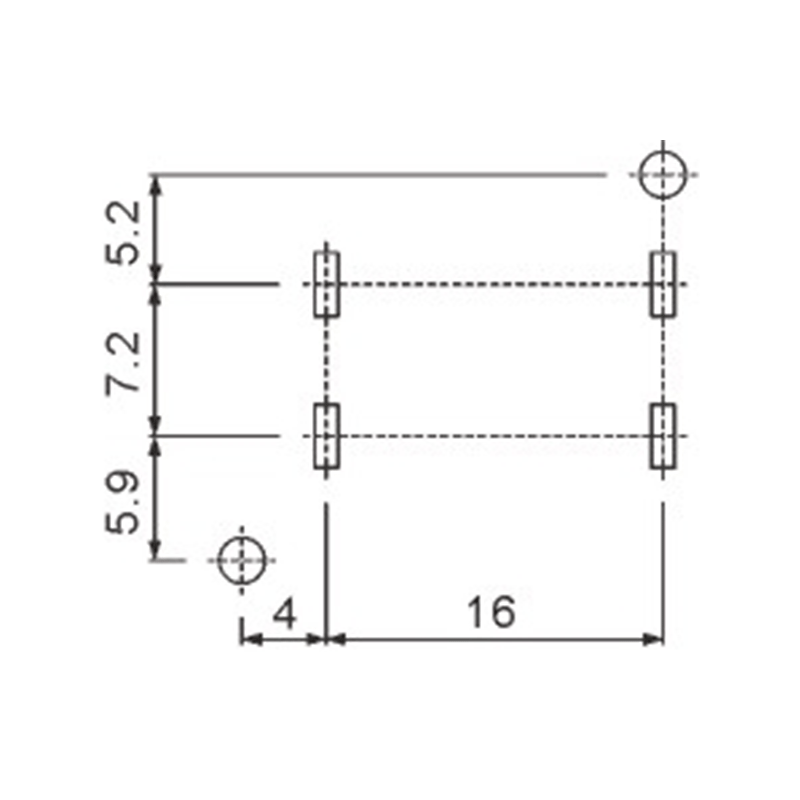

The 16mm pitch defines the spacing between terminal positions.

PA66 housing and tin-plated brass terminals are specified.

The product is designed for 1.6mm PCB mounting.


Applications

Compact PCB power terminals. Protected control-box connections.

Two-wire industrial electrical assemblies. Equipment requiring a sealed screw-terminal interface.


Ordering & Quotation Information

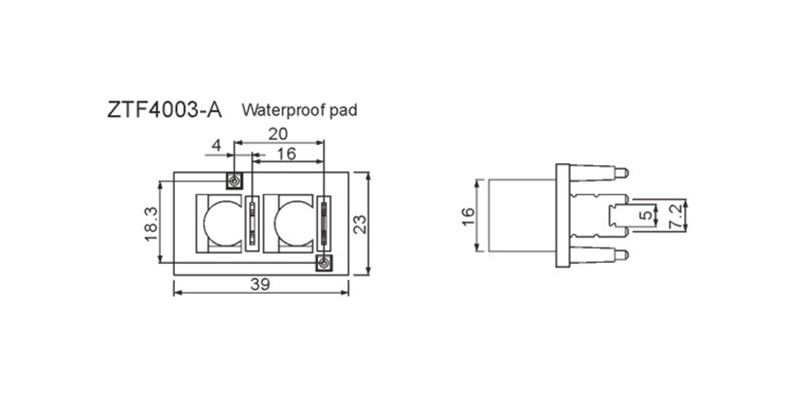

Please provide conductor details, PCB layout, required voltage range and the required sealing arrangement. Confirm the ZTF4003-A waterproof pad together with the terminal block.


FAQ

Q1: How many connection points does this model have?
A: ZT2204-C provides two M5 terminal positions.

Q2: Which waterproof pad is used?
A: The matched waterproof pad is ZTF4003-A.

Q3: What is the terminal pitch?
A: The listed terminal pitch is 16mm.

Q4: Is this product suitable for 1.6mm PCBs?
A: Yes. The applicable PCB thickness is 1.6mm.


Request a Quote

Send your conductor and PCB requirements to quote the ZT2204-C 2-Pole M5 Sealed PCB Screw Terminal Block.
