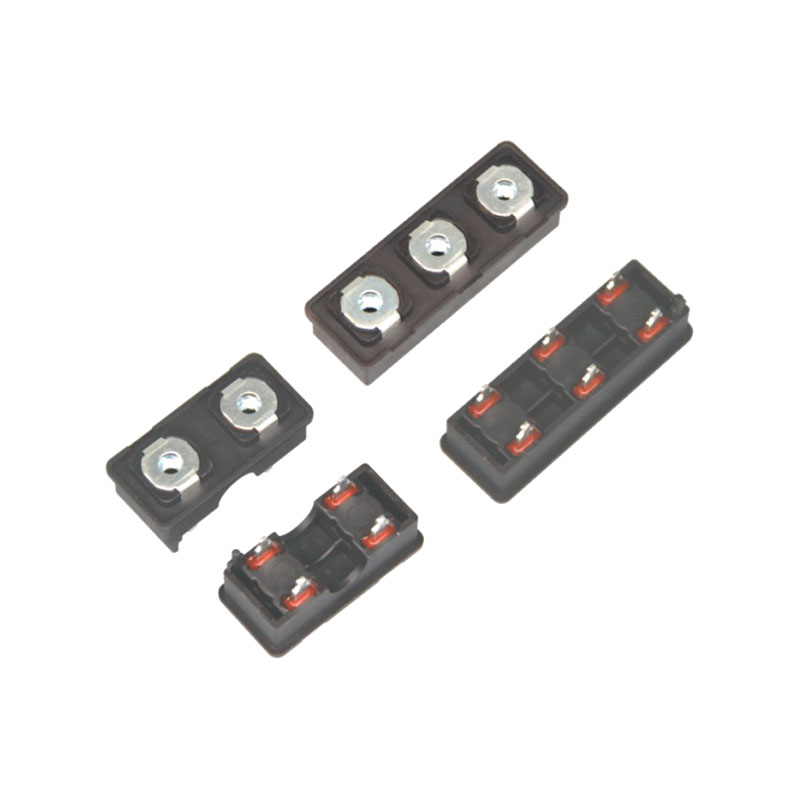

ZT2422 3-Pole M4 PCB Screw Terminal Block

Key Features

Three terminal positions support three-wire or multi-point board connections.

M4 threaded connection points allow screw-secured conductor termination.

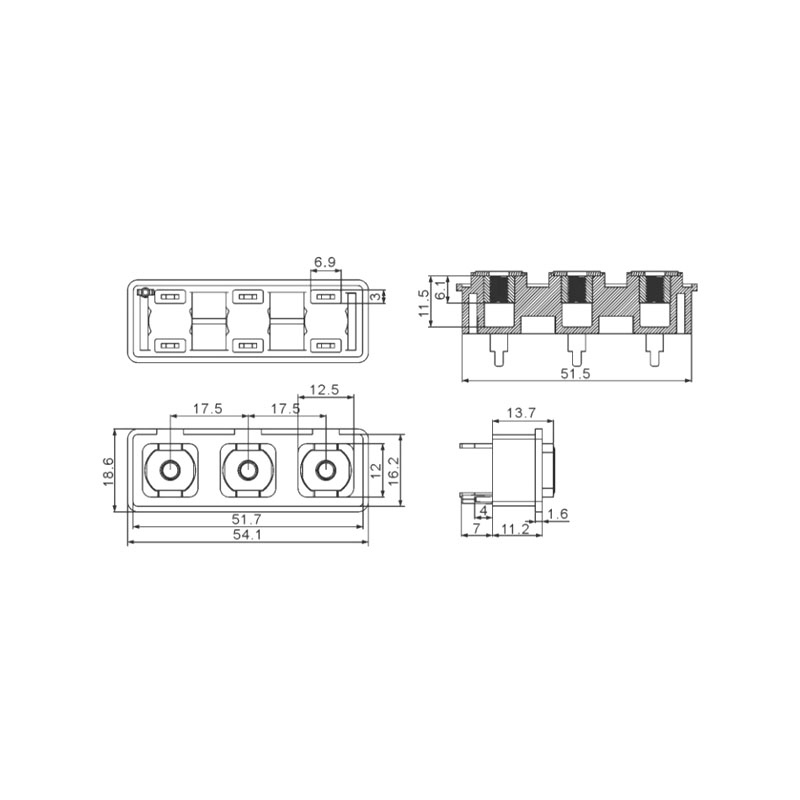

A 17.5mm pitch keeps the three poles arranged in a compact linear layout.

The terminal block is suitable for 1.6mm PCB mounting.

Tin-plated brass terminals provide the listed conductive interface.

Applications

Three-wire electrical control connections. PCB-mounted power terminals.

Industrial switching equipment. Control boards requiring separate three-pole screw connections.

Ordering & Quotation Information

Please provide the required voltage range, conductor arrangement and PCB layout. Confirm the 17.5mm terminal pitch before selecting the product for an existing board design.

FAQ

Q1: What is the difference between ZT2422 and a two-pole terminal block?
A: ZT2422 provides three terminal positions, allowing an additional conductor connection point.

Q2: What terminal pitch does this model use?
A: The listed terminal pitch is 17.5mm.

Q3: Is the screw interface M4?
A: Yes. The model uses M4 threaded connection points.

Q4: What PCB thickness is applicable?
A: The listed applicable PCB thickness is 1.6mm.

Request a Quote

Send your required pole count and PCB requirement to quote the ZT2422 3-Pole M4 PCB Screw Terminal Block.
