Wholesale ZT2421 2-Pole M4 PCB Screw Terminal Block

Home / Products / PCB Screw Terminal Blocks / ZT2421 2-Pole M4 PCB Screw Terminal Block

  • ZT2421 2-Pole M4 PCB Screw Terminal Block
  • ZT2421 2-Pole M4 PCB Screw Terminal Block

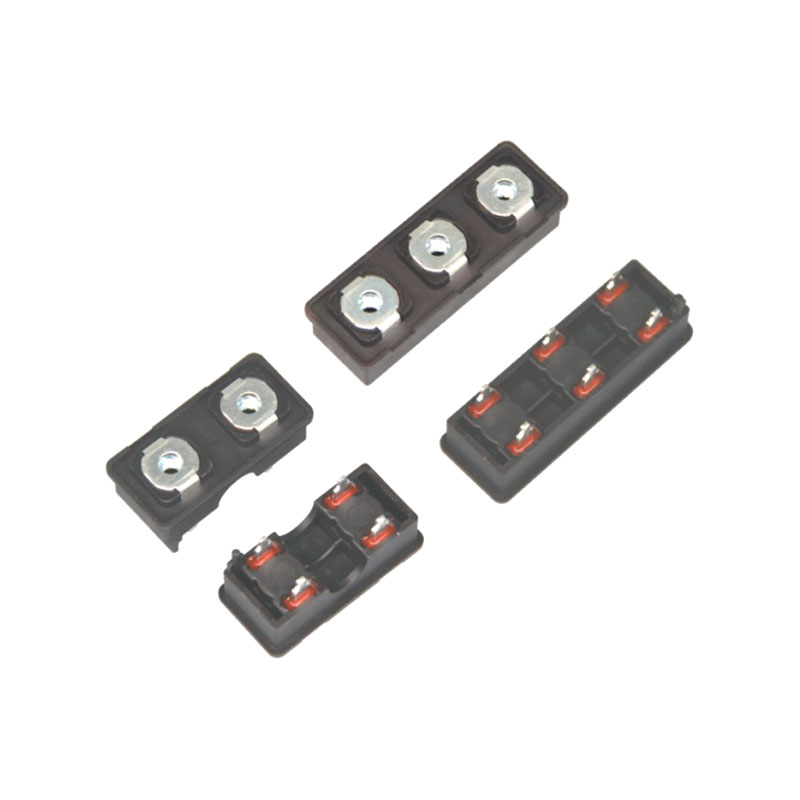

ZT2421 2-Pole M4 PCB Screw Terminal Block

The ZT2421 2-Pole M4 PCB Screw Terminal Block is a two-position board-mounted terminal block for screw-fastened electrical connections. Its M4 nut interface and 19.5mm terminal pitch suit PCB assemblies that require a compact two-pole connection point.

The ZT2421 2-Pole M4 PCB Screw Terminal Block uses a PA66 housing and tin-plated brass terminals for applications operating within its listed 40 to 1000V range.

Inquiry Now
PREV：ZT2422 3-Pole M4 PCB Screw Terminal Block NEXT：No next article
  • Product Details
  • Parameter

Key Features

Two terminals provide a simple two-pole connection layout.

An M4 nut interface supports screw-secured conductor connection.

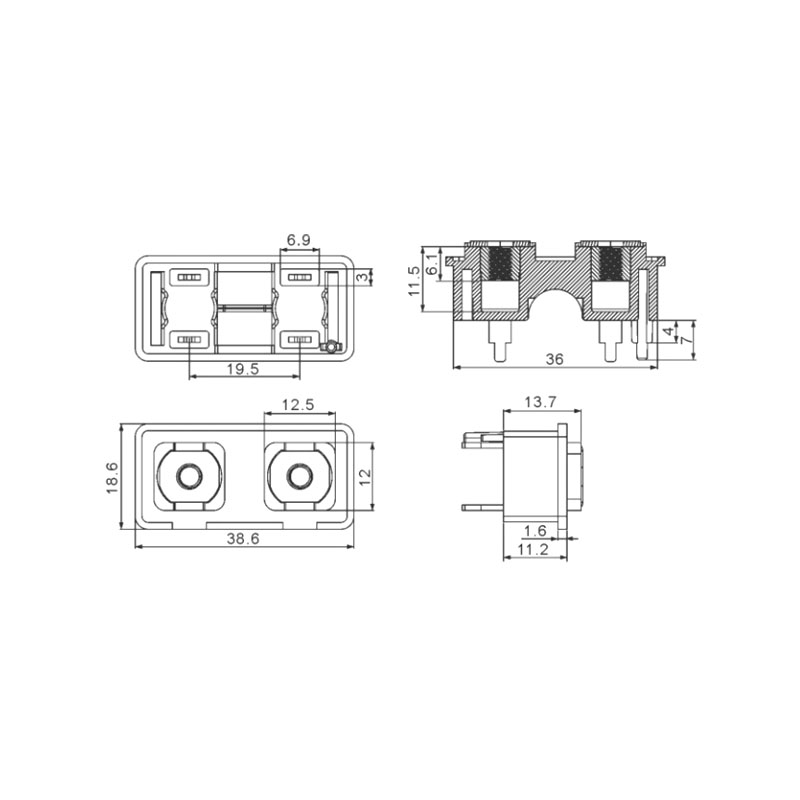

A 19.5mm pitch provides spacing between the two terminal positions.

The terminal block is designed for 1.6mm PCB mounting.

PA66 housing and tin-plated brass terminals are specified.


Applications

Power-entry points on industrial PCBs. Electrical control modules.

Two-wire power distribution connections. Equipment requiring a screw-fastened board terminal.


Ordering & Quotation Information

Please confirm the intended voltage range, conductor connection method, board thickness and purchasing quantity. The selected screw and conductor arrangement should be verified before sample approval.


FAQ

Q1: How many connection positions does this terminal block have?
A: ZT2421 is a two-pole terminal block.

Q2: What nut size is used?
A: This model uses an M4 nut interface.

Q3: Is it designed for PCB installation?
A: Yes. The listed applicable PCB thickness is 1.6mm.

Q4: What material is used for the terminal?
A: The terminal is brass with a tin-plated finish.


Request a Quote

Share your conductor and PCB requirements to quote the ZT2421 2-Pole M4 PCB Screw Terminal Block.
