ZT2304 2-Pole M5 Sealed PCB Screw Terminal Block

Key Features

A two-pole arrangement supports compact power-entry connections.

The M5 nut interface is suited to screw-fastened conductor termination.

A matched waterproof pad supports the sealed board mounting arrangement.

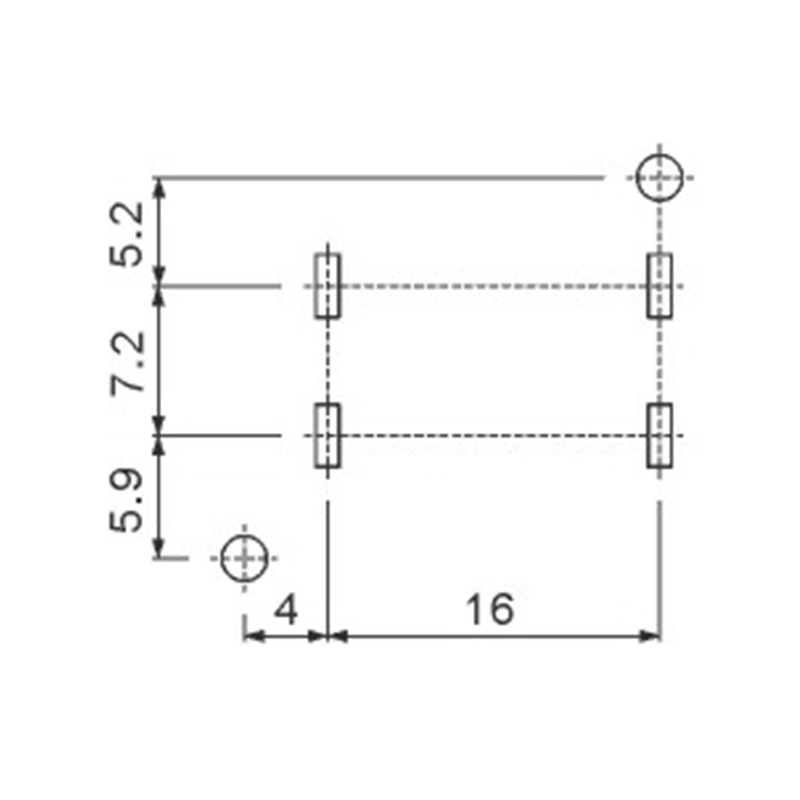

The 16mm pitch provides defined spacing between the two terminals.

PA66 housing and tin-plated brass terminals are specified.

Applications

Protected electrical control boxes. Industrial PCB power terminals.

Equipment requiring a two-pole sealed board connection. Power-entry interfaces with a waterproof-pad requirement.

Ordering & Quotation Information

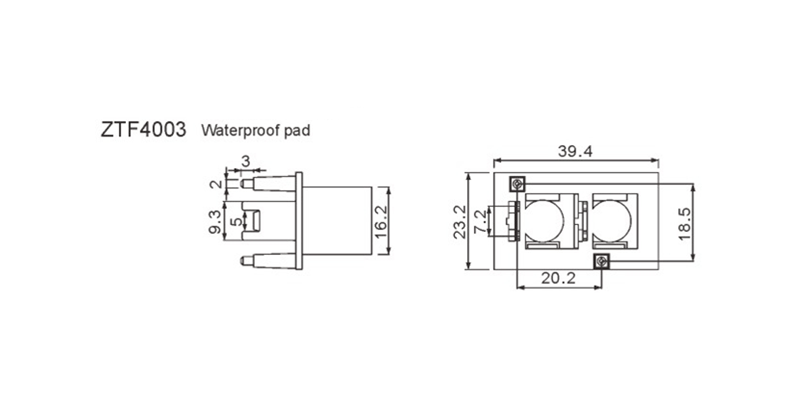

Please confirm conductor size, PCB layout, required sealing arrangement and purchasing quantity. The ZTF4003 waterproof pad should be specified with the terminal block for the intended sealed configuration.

FAQ

Q1: Does this product use an M4 or M5 connection?
A: ZT2304 uses an M5 nut interface.

Q2: Which sealing component is matched to this terminal block?
A: The listed matched waterproof pad is ZTF4003.

Q3: What is the terminal pitch?
A: The terminal pitch is 16mm.

Q4: Is it intended for PCB mounting?

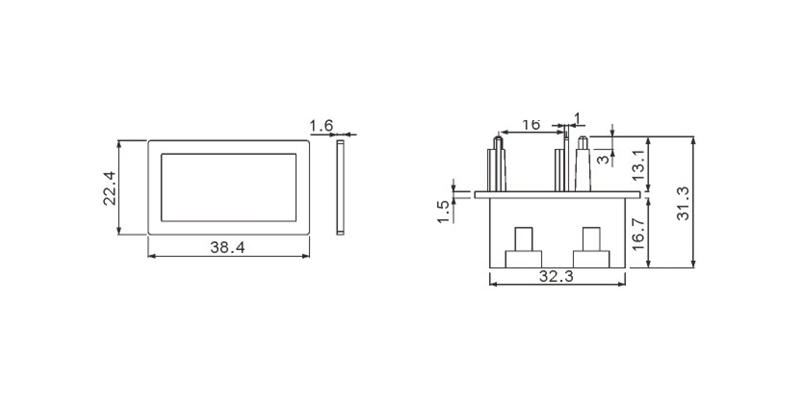

A: Yes. The listed applicable PCB thickness is 1.6mm.

Request a Quote

Provide your conductor and sealing requirements to quote the ZT2304 2-Pole M5 Sealed PCB Screw Terminal Block.
