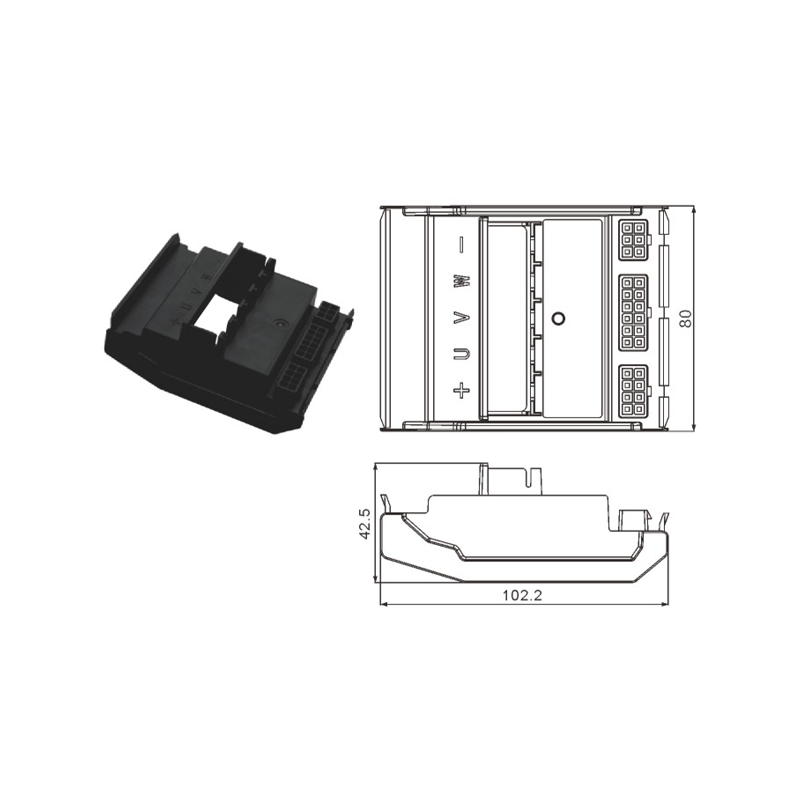

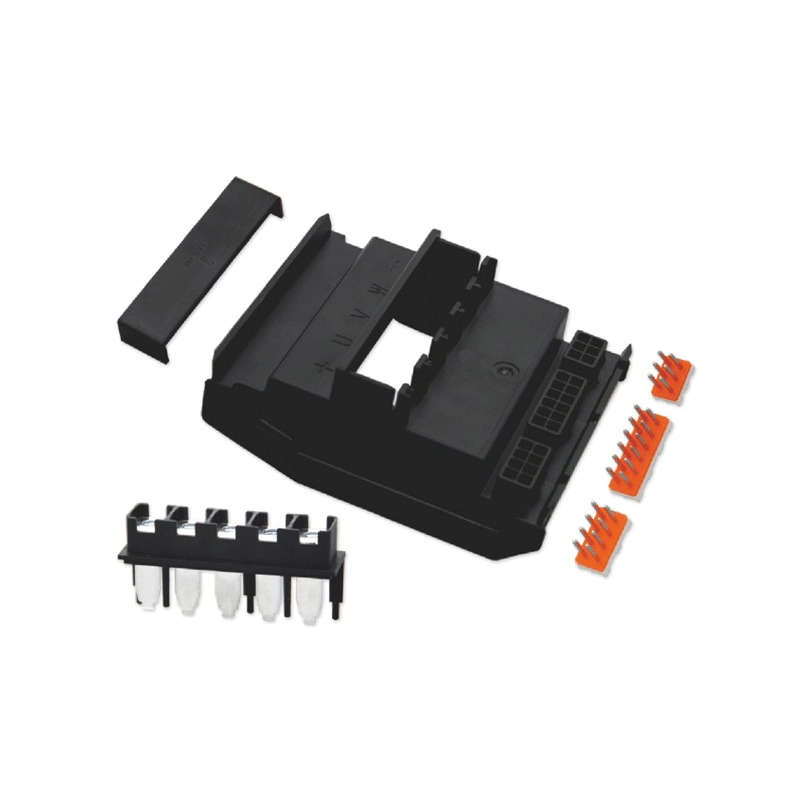

ZT2317 6-Tube Controller Connector System

Key Features

An 8+12+6 interface arrangement supports multiple controller connections within one coordinated system.

The system is rated for 24–60 V applications with a maximum current range of 17–20 A.

Flame-retardant V-0 housing materials support electrical safety requirements in enclosed equipment.

The supplied panel and sealing components help create a cleaner, more repeatable controller-side assembly.

Applications

Compact electric drive controllers Low-voltage motor control equipment Light electric vehicle controller assemblies Integrated electrical control modules

Ordering & Quotation Information

Please provide the controller drawing, cable list, interface assignment, and project quantity. We can confirm the appropriate ZT2317 component combination before quotation.

FAQ

Q1: What is included in the ZT2317 6-Tube Controller Connector System?

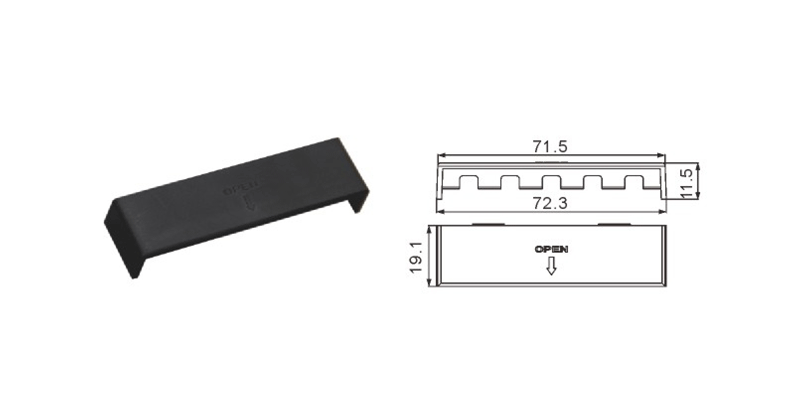

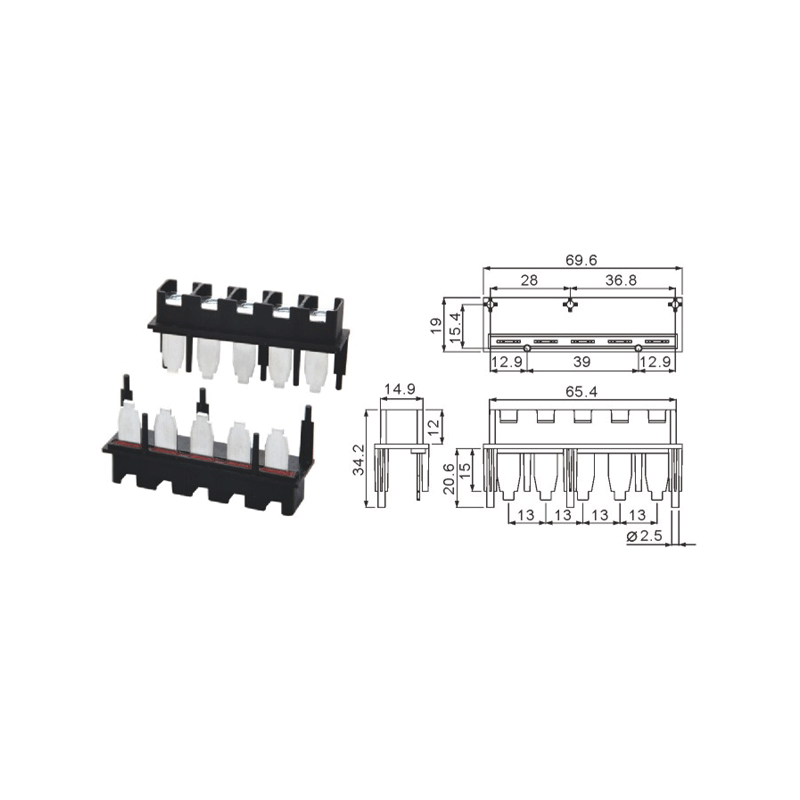

The system includes the controller-side panel arrangement and matching connection components shown for the model, including housing, panel parts, terminals, seals, and conductive elements as applicable.

Q2: What controller range is it designed for?
It is intended for 24–60 V controller applications with an applicable power range of 200–400 W.

Q3: What does the 8+12+6 interface mean?
It identifies the connection arrangement used by this motor controller connector system. Share your pin assignment so we can verify compatibility.

Q4: Can we request samples before production?
Yes. Please provide your application details and required configuration for sample evaluation.

Request a Quote

Send us your controller interface drawing for the ZT2317 6-Tube Controller Connector System. Our team will help verify the system configuration and provide a quotation.
