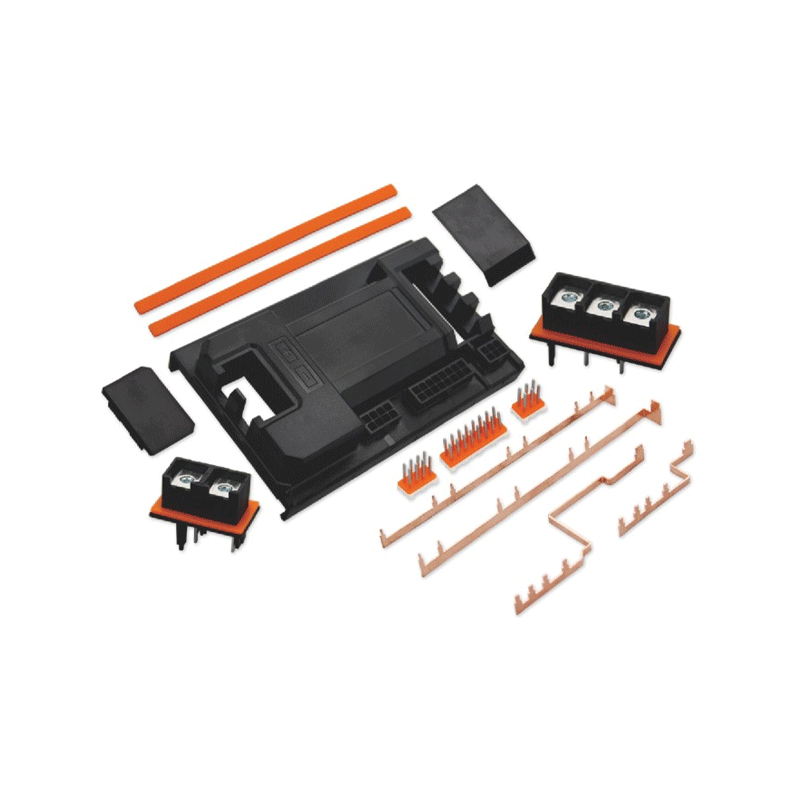

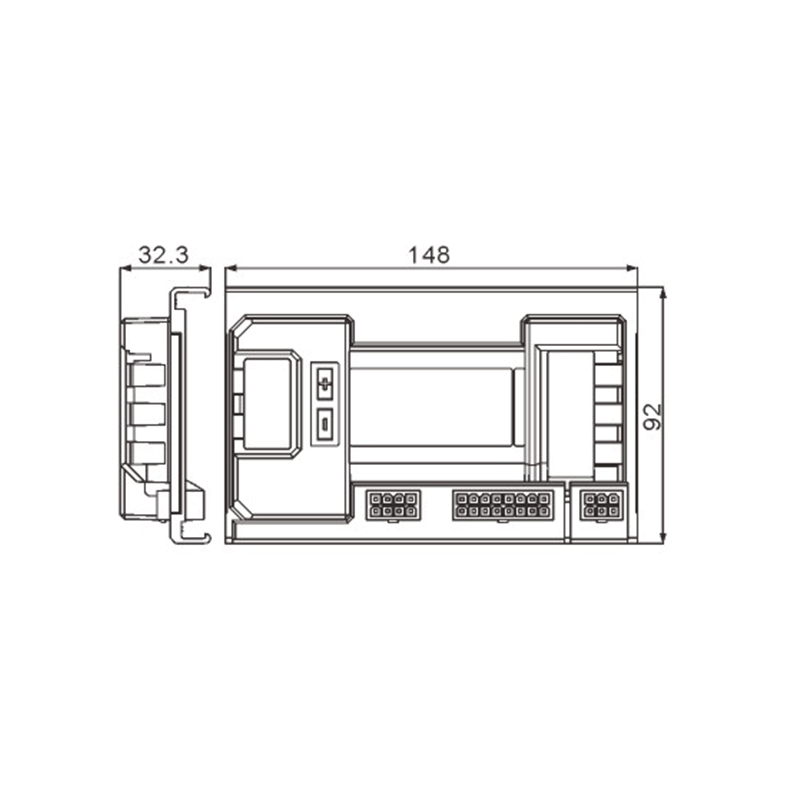

ZT2315 12-Tube Controller Connector System

Key Features

An 8+16+6 interface arrangement accommodates a broader set of controller-side circuits.

The system supports 48–96 V applications with a maximum current range of 30–32 A.

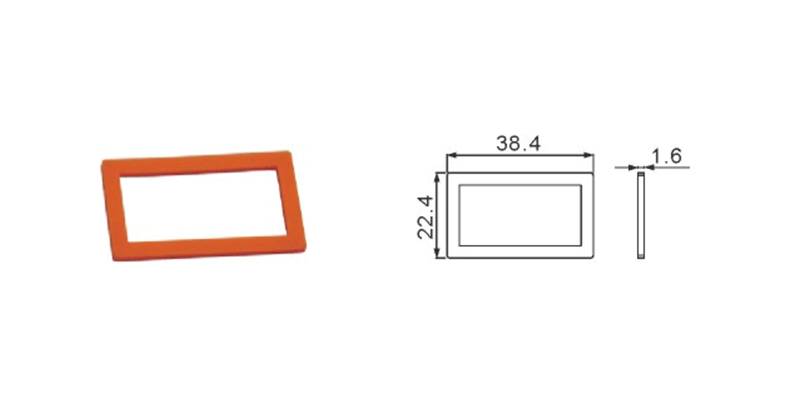

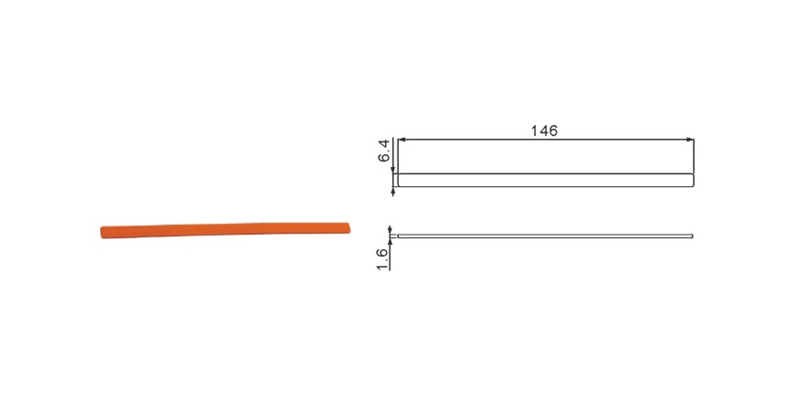

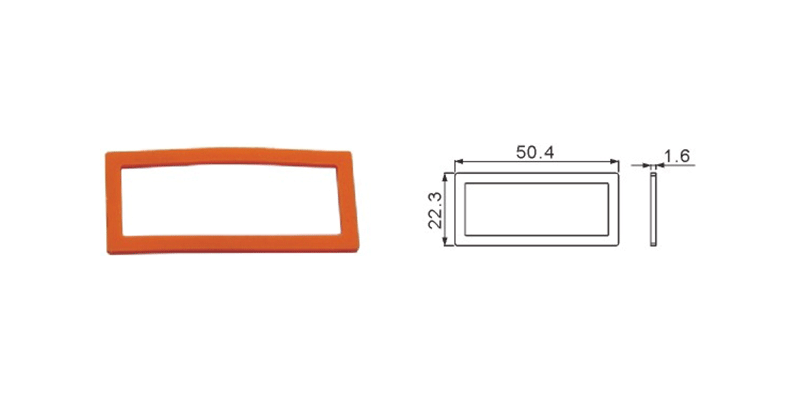

Orange silicone sealing strips help support a protected and orderly enclosure assembly.

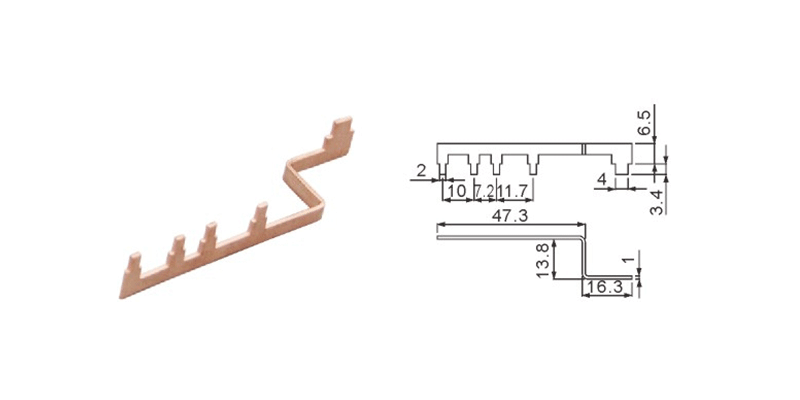

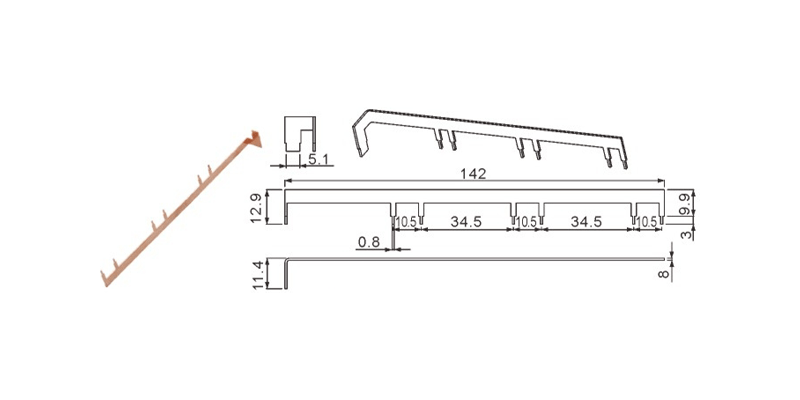

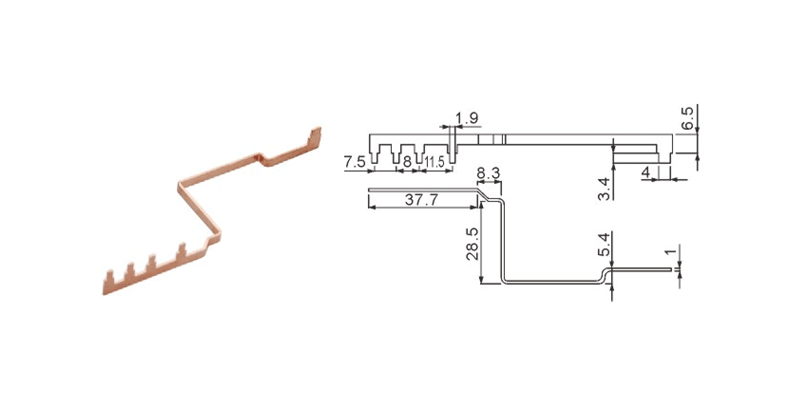

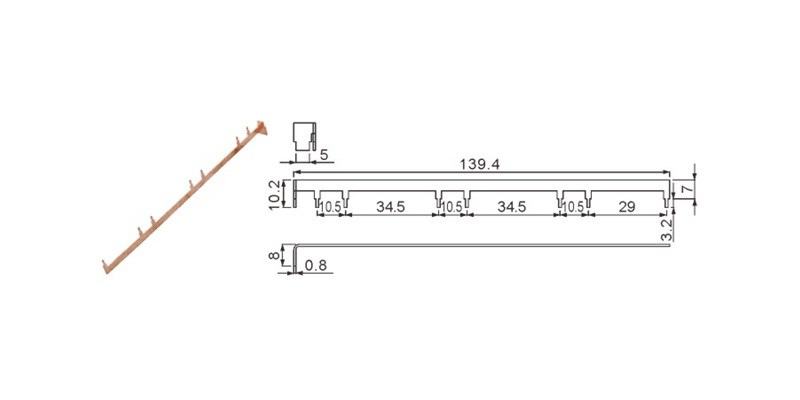

Multiple copper strip options allow the internal conductive layout to be matched to the required configuration.

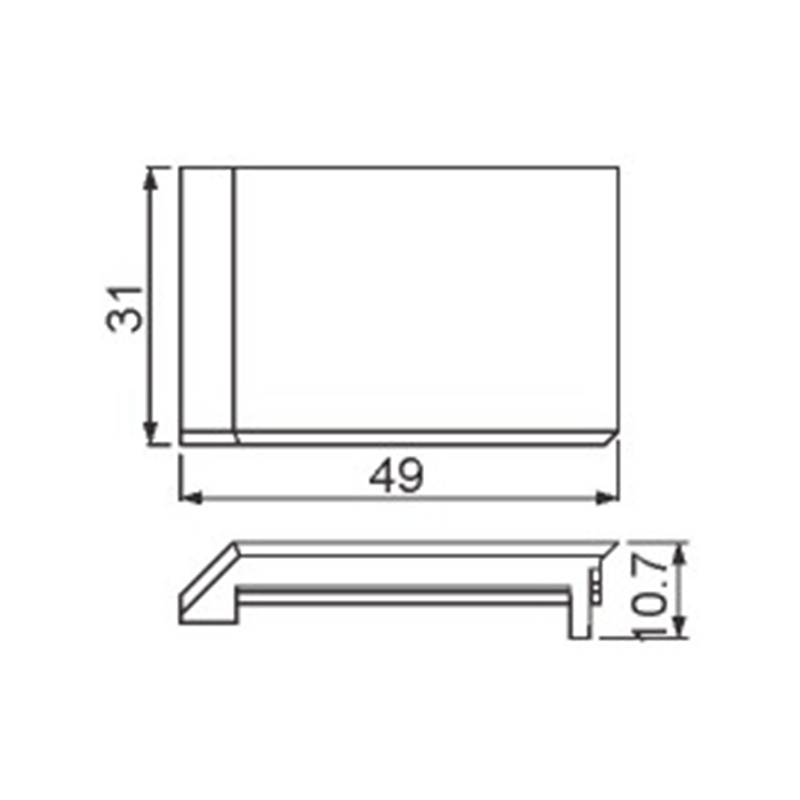

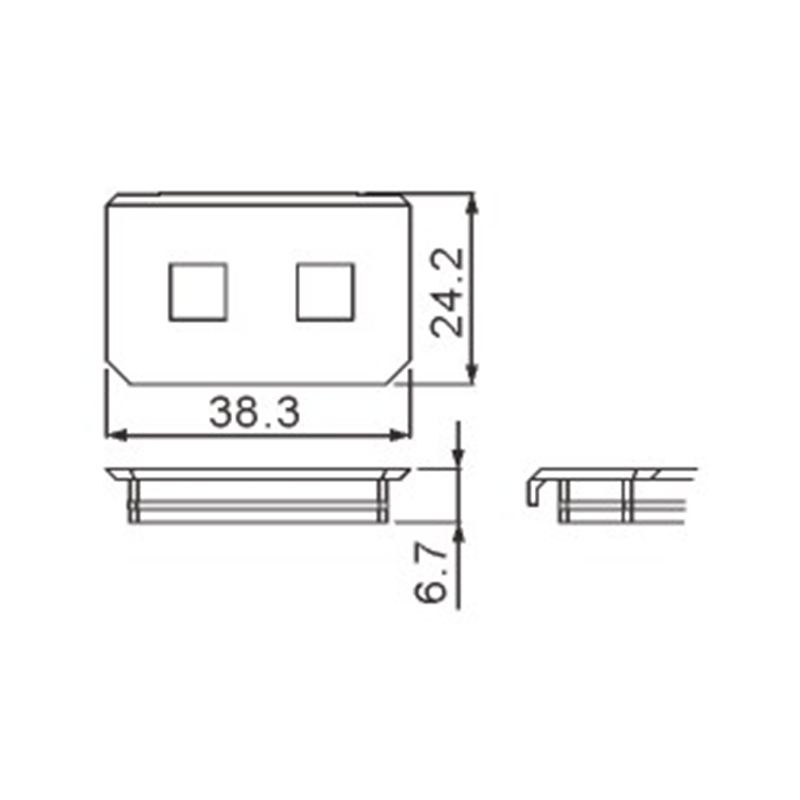

V-0 flame-retardant panel materials are used for the molded housing components.

Applications

Higher-power electric drive controllers Battery and motor control modules Electric vehicle controller assemblies Custom electrical control enclosures

Ordering & Quotation Information

Please send the controller layout, terminal assignment, voltage requirement, and expected quantity. We can review the panel, seal, and copper strip combination required for your project.

FAQ

Q1: What is the difference between the ZT2315 system and a simple connector housing?
It is a coordinated controller connection system with panel components, sealing parts, conductive strips, and connection elements rather than a single housing part.

Q2: What power range does this model support?
It is designed for 48–96 V applications with an applicable power range of 400–1000 W.

Q3: Can the copper strip arrangement be reviewed for our controller design?
Yes. Provide your internal layout and connection assignment so the suitable copper strip configuration can be checked.

Q4: Does the system include sealing components?
Yes. Orange silicone sealing strips are part of the listed ZT2315 12-Tube Controller Connector System configuration.

Request a Quote

Share your controller drawing and required interface arrangement for the listed product. We will help verify the component combination and prepare a quotation.
