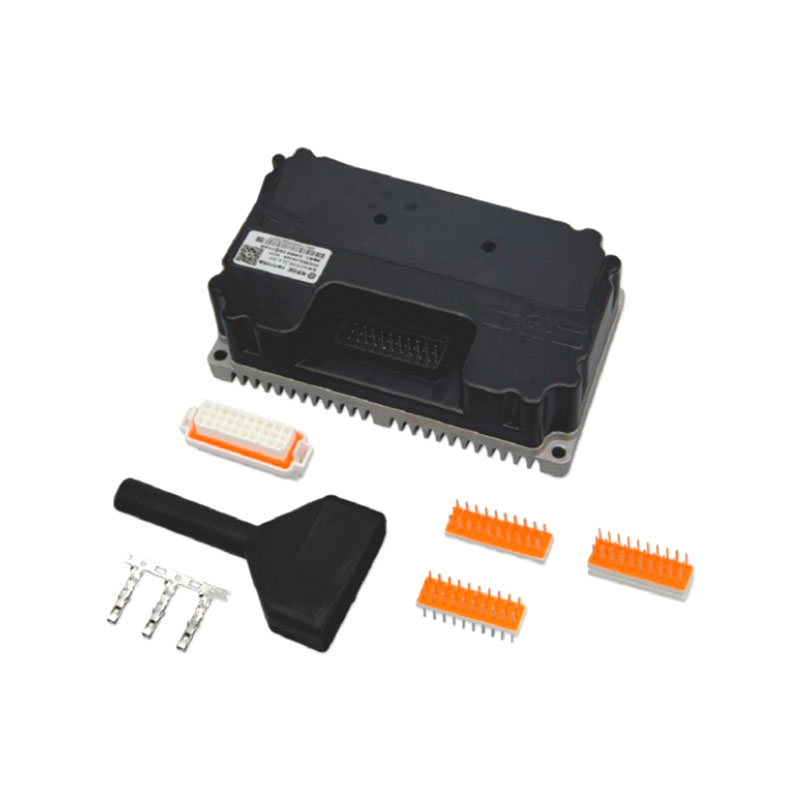

ZT2023 / ZT2024 30-Circuit Sealed Controller Connector System

Key Features

A 30-circuit layout supports dense controller and harness connections.

The cable-side plug and board-side header form a matched connector interface.

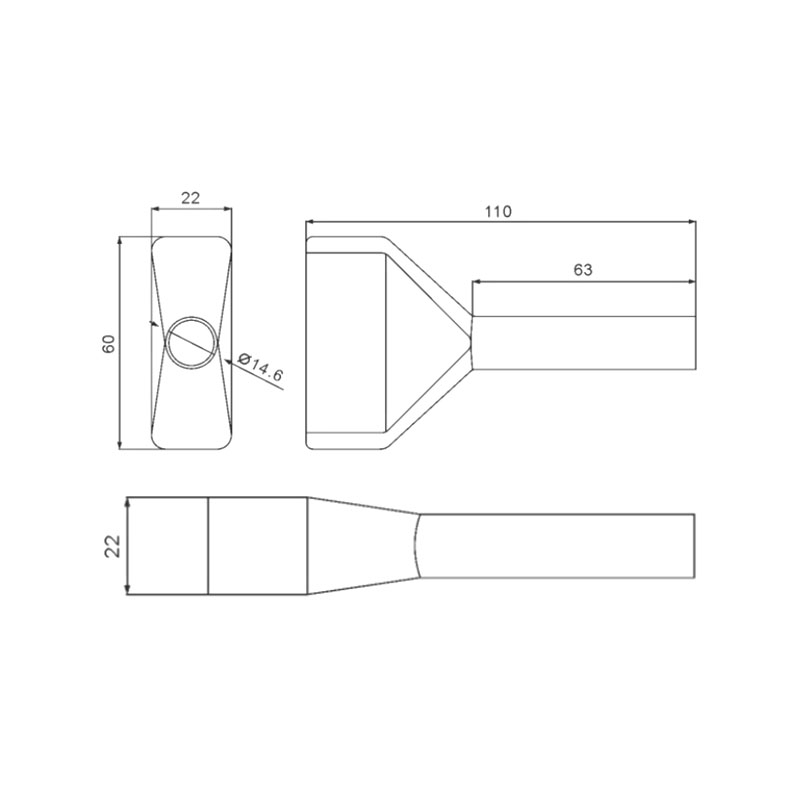

A silicone protective sheath provides cable-side coverage around the plug connection.

The terminal uses phosphor bronze with bright tin plating.

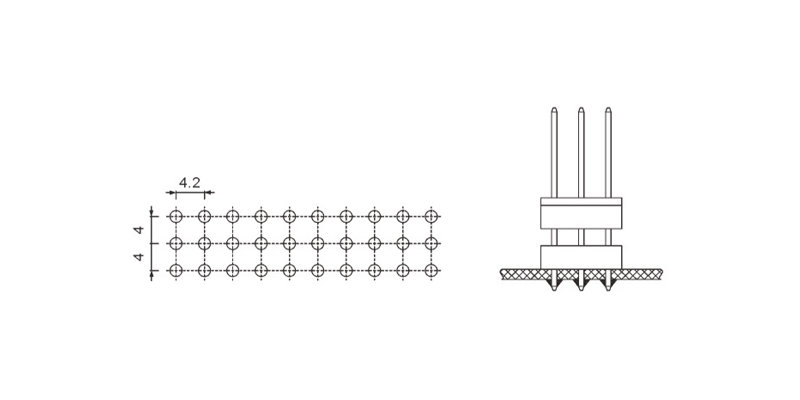

The board-side interface is designed for a 1.6mm PCB.

Applications

Motion-control electrical enclosures. Industrial controller modules.

Multi-circuit equipment harnesses. Electrical systems requiring a protected controller connector interface.

Ordering & Quotation Information

Please provide the required connector quantity, wire size, board-side configuration and protective-sheath requirement. A pin-assignment drawing is recommended for 30-circuit controller projects.

FAQ

Q1: Does this system include both cable-side and board-side components?
A: Yes. The connection system includes a plug, board-side header, terminal and related protective components.

Q1: What wire range is supported?
A: The listed crimp terminal supports 0.3 to 0.5 mm² wire, equivalent to AWG 22 to 20.

Q3: Is the silicone sheath included for cable protection?
A: A silicone protective sheath is available as part of the connector system configuration.

Q4: What information is needed for quotation?
A: Please provide the required quantity, wiring specification, PCB interface requirement and pin-assignment information.

Request a Quote

Send your controller layout and wiring requirements to request a quote the ZT2023 / ZT2024 30-Circuit Sealed Controller Connector System.
