RV Cold-Pressed PVC Pre-Insulated Ring Terminal Series

Key Features

The closed-ring structure is suitable for fixed mounting positions.

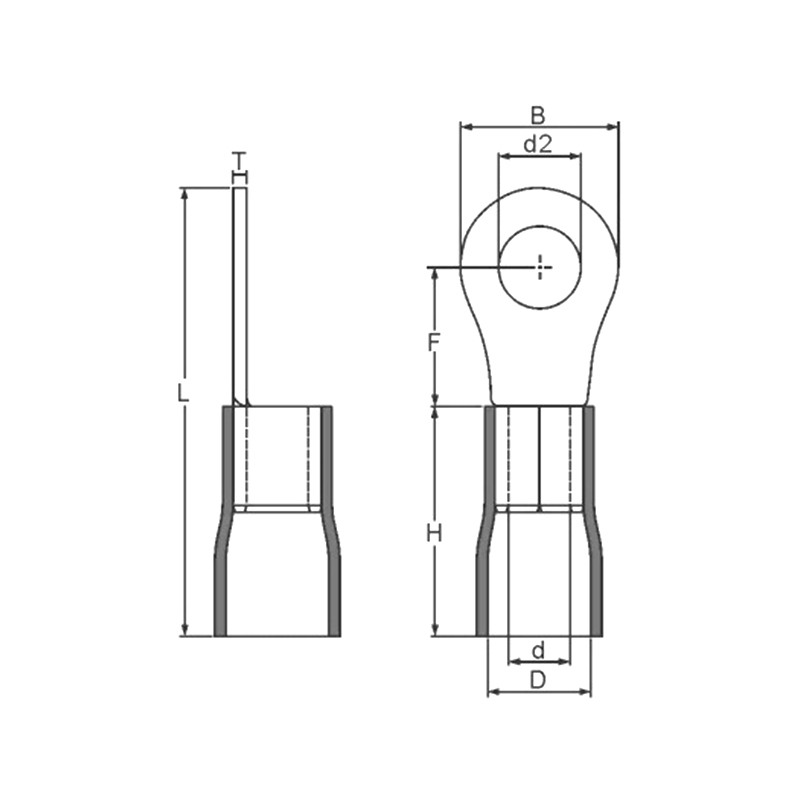

Multiple terminal sizes support different stud and mounting-hole requirements.

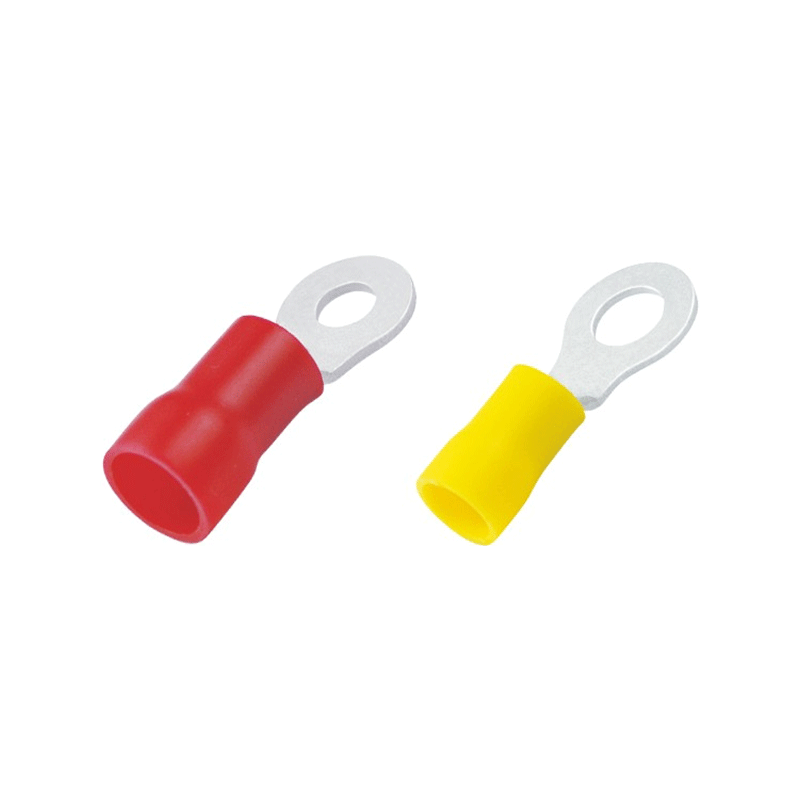

Color-coded versions identify the applicable conductor range.

The series covers light-duty, power, and larger cable connection requirements.

Applications

Electrical distribution equipment Battery and charger wiring Control-panel assembly Industrial machinery wiring Vehicle power connections.

Ordering & Quotation Information

Please provide the conductor size, required stud size, insulation color, selected RV part number, and quantity. We can identify the suitable PVC pre-insulated ring terminal version.

FAQ

Q1: What is the main purpose of an RV ring terminal?
It is used to create a crimped wire-to-stud or wire-to-screw connection with a closed-ring tongue.

Q2: What conductor range does the series cover?
The listed RV series covers 0.5–38 mm² conductors, depending on the part number.

Q3: Are different stud sizes available?
Yes. Multiple metric and American stud sizes are listed across the series.

Q4: What information is required for quotation?
Please provide the wire range, stud size, terminal model, color, and purchasing quantity.

Request a Quote

Send your cable and mounting requirements for the RV Cold-Pressed PVC Pre-Insulated Ring Terminal Series. We will confirm the required model and quotation.
