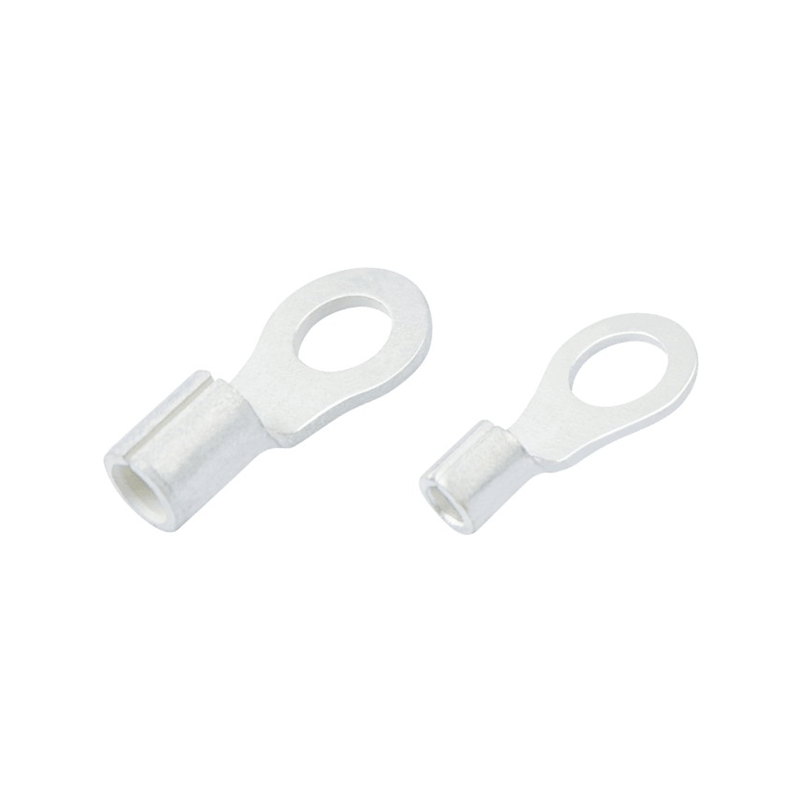

TO Cold-Pressed Uninsulated Ring Terminal Series-Zhejiang Zhente Technology Co., Ltd.

Product Details
Parameter

Key Features

The closed-ring construction supports fixed screw or stud connections.

Uninsulated terminal bodies are available for a wide range of conductor sizes.

Multiple ring-hole dimensions support different mounting requirements.

Tin plating is applied to the copper terminal body.

Applications

Battery cable assemblies Electrical distribution equipment Control-panel wiring Industrial machinery Vehicle power wiring.

Ordering & Quotation Information

Please provide the conductor size, required ring-hole or stud size, selected RNB part number, terminal dimensions, and quantity. We can identify the suitable uninsulated ring terminal version.

FAQ

Q1: Why choose a ring terminal for a fixed connection?
The closed ring remains captured beneath the fastener after tightening.

Q2: What wire range does the series cover?
The TO series covers 0.5–38 mm² conductors, depending on the selected version.

Q3: Is this terminal insulated?
No. The TO Cold-Pressed Uninsulated Ring Terminal Series is supplied without insulation.

Q4: What information is needed for quotation?
Please provide the wire size, stud requirement, part number, and purchasing quantity.

Request a Quote

Contact us with your mounting and wire requirements for the listed product. We will confirm the suitable version and quotation.

Item	Parameter
Series	RNB / TO type
Product type	Uninsulated ring terminal
Terminal body	Copper
Plating	Tin
Insulation	None
Applicable wire range	0.5–38 mm², variant-dependent
Applicable wire gauges	AWG 22–2, variant-dependent
Maximum current	19A–160A, variant-dependent
Stud sizes	Multiple metric and American sizes
Crimping tool	ZT-101 or ZT-38, variant-dependent
Supply quantity	50–1,000 pcs/pack, variant-dependent
Certifications	CE, cULus, RoHS, CQC, IATF 16949, ISO

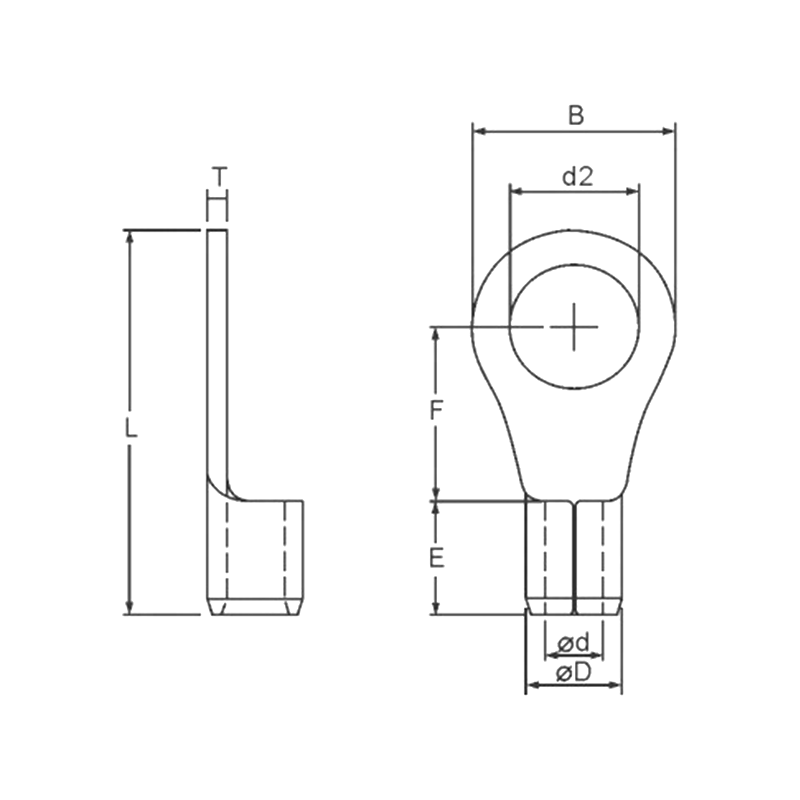

ITEM NO.	Studsize		Dimendion(mm)								PCS/PACK	CrimpingTool	EXPLANATION
	Metric	American	d2	B	F	L	E	D	d	T
RNB1.25-3	3	#4	3.2	5.7	5	12.8	5	3.4	1.9	0.75	1000	ZT-101	Wirerange:0.5-1.5mm² Maxcurrent:19A A.W.G:(22-16)
RNBS1.25-3.5	3.5	#6	3.7
RNBM1.25-3.5	3.5	#6	3.7	6.5	6.3	14.5
RNBS1.25-4	4	#8	4.3
RNBL1.25-4	4	#8	4.3	8	6.8	15.8
RNBS1.25-5	5	#10	5.3
RNBL1.25-5	5	#10	5.3	9.8	8	17.8
RNBS1.25-6	6	1/4"	6.4
RNB1.25-6	6	1/4"	6.4	11.6	11	21.8
RNB1.25-8	8	5/16"	8.4
RNB1.25-10	10	3/8"	10.5	13.6	14	25.5
RNB1.25-12	12	1/2"	13	19.2		30.5
RNB2-3	3	#4	3.2	6.6	4.6	13	5	4	24	0.8	1000	ZT-101	Wirerange:1.5-2.5mm² Maxcurrent:27A A.W.G:(16-14)
RNB2-3.5	3.5	#6	3.7
RNBM2-3.5	3.5	#6	3.7		6	14.3
RNBS2-4	4	#8	4.3
RNBL2-4	4	#8	4.3	8.5	7.7	17
RNBS2-5	5	#10	5.3
RNBL2-5	5	#10	5.3	9.5	7.2
RNB2-6	6	1/4"	6.4	12	11	22
RNB2-8	8	5/16"	8.4
RNB2-10	10	3/8"	10.5	13.6	14	25.5
RNB2-12	12	1/2"	13	19.2	16	30.4
RNB3.5-4	4	#8	4.3	8	8	18.3	6.3	5	3	1	1000	ZT-101	Wirerange:2.5-4mm² Maxcurrent:37A A.W.G:(14-12)
RNBS3.5-5	5	#10	5.3
RNBL3.5-5	5	#10	5.3	12	9.3	21.5
RNB3.5-6	6	1/4"	6.4
RNB3.5-8	8	5/16"	8.4	15	13.5	27.3
RNB3.5-10	10	3/8"	10.5
RNB3.5-12	12	1/2"	13	20	15.5	31.5

ITEMNO.	Studsize		Dimendion(mm)								PCS/PACK	CrimpingTool	EXPLANATION
ITEMNO.	Metric	American	d2	B	F	L	E	D	d	T	PCS/PACK	CrimpingTool	EXPLANATION
RNB5.5-3.5	3.5	#6	3.7	7.2	6	16.5	7.1	5.5	3.5	1	1000	ZT-101	Wirerange:4-6mm² Maxcurrent:48A A.W.G:(12-10)
RNBS5.5-4	4	#8	4.3	7.2	6	16.5
RNBL5.5-4	4	#8	4.3	9.5	8	19.8
RNB5.5-5	5	#10	5.3	9.5	8	19.8
RNB5.5-6	6	1/4"	6.4	12	10.5	23.5
RNB5.5-8	8	5/16"	8.4	15	13.3	28
RNB5.5-10	10	3/8"	10.5	15	13.3	28
RNB5.5-12	12	1/2"	13	19.2	16	32.5					500
RNB8-4	4	#8	4.3	8.8	10.5	23.5	8.7	7	4.6	1.2	500	ZT-38	Wirerange:6-10mm² Maxcurrent:62A A.W.G:(8)
RNBS8-5	5	#10	5.3	8.8	10.5	23.5
RNBM8-5	5	#10	5.3	12	9	23.7
RNBS8-6	6	1/4"	6.4	12	9	23.7
RNBL8-5	5	#10	5.3	15	14	30.2					250
RNBL8-6	6	1/4"	6.4
RNB8-8	8	5/16"	8.4
RNB8-10	10	3/8"	10.5
RNB8-12	12	1/2"	13	22	20	39.7					200
RNB14-4	4	#8	4.3	12	13	29.5	10.6	9	6.2	1.4	250	ZT-38	Wirerange:10-16mm² Maxcurrent:88A A.W.G:(62)
RNB14-5	5	#10	5.3
RNBS14-6	6	1/4"	6.4
RNBL14-6	6	1/4"	6.4	16	14	32.6
RNB14-8	8	5/16"	8.4
RNB14-10	10	3/8"	10.5
RNB14-12	12	1/2"	13	22	19.5	41					200
RNB14-16	16	5/8"	17	30	25.5	51					200

ITEMNO.	Studsize		Dimendion(mm)								PCS/PACK	CrimpingTool	EXPLANATION
	Metric	American	d2	B	F	L	E	D	d	T
RNBS 22-5	5	#10	5.3	12.1	14.5	32.7	12.2	11.5	8	1.7	250	ZT-38	Wirerange:16-25mm² Maxcurrent:115A A.W.G:(4)
RNBS 22-6	6	1/4"	6.4
RNBL 22-5	5	#10	5.3	16.5	13.7	34
RNBL 22-6	6	1/4"	6.4
RNB 22-8	8	5/16"	8.4
RNB 22-10	10	3/8"	10.5
RNB 22-12	12	1/2"	13	22	19.5	42.5					100
RNB 22-14	14	9/16"	15	30	25	52
RNB 22-16	16	5/8"	17
RNB 38-5	5	#10	5.3	15.3	18.5	39.8	14	13.5	9.5	1.8	100	ZT-38	Wirerange:38mm² Maxcurrent:160A A.W.G:(2)
RNBS 38-6	6	1/4"	6.4
RNBS 38-8	8	5/16"	8.4
RNBL 38-8	8	5/16"	8.4	22	17.5	42.5
RNBS 38-10	10	3/8"	10.5	15.5	18.5	40
RNBL 38-10	10	3/8"	10.5	22	17.5	42.7
RNB 38-12	12	1/2"	13
RNB 38-14	14	9/16"	15	30	24	52.5
RNB 38-16	16	5/8"	17
