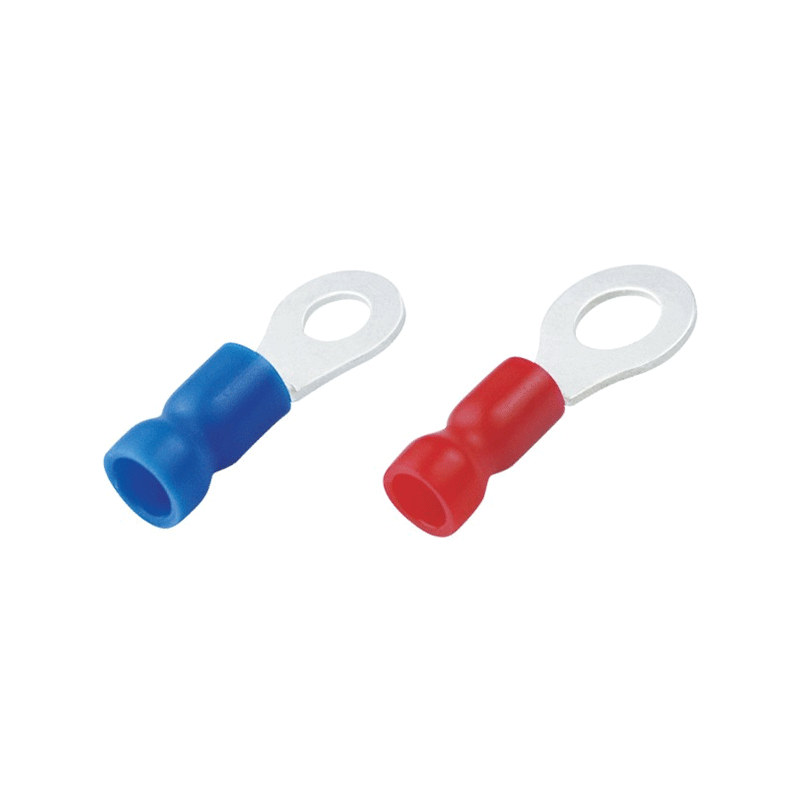

RVE Cold-Pressed Easy-Entry PVC Pre-Insulated Ring Terminal-Zhejiang Zhente Technology Co., Ltd.

Product Details
Parameter

Key Features

The easy-entry barrel supports direct conductor insertion during wire preparation.

A closed ring remains secured beneath the fastener after installation.

PVC insulation covers the crimp barrel after termination.

Multiple color options correspond to different listed conductor ranges and current ratings.

Applications

Control-cabinet wiring Electrical equipment assembly Power-distribution connections Vehicle electrical wiring Appliance wire harnesses.

Ordering & Quotation Information

Please provide the wire cross-section, required stud size, insulation color, selected RVE part number, and order quantity. We can confirm the correct easy-entry ring terminal version.

FAQ

Q1: What does “easy entry” mean?
It refers to the barrel structure designed to guide a stripped conductor into the terminal before crimping.

Q2: What wire sizes are available?
The RVE series covers 0.5–6.0 mm² conductors, depending on the selected version.

Q3: What temperature resistance is listed?
The PVC insulation versions are listed with a 75°C temperature resistance.

Q4: How should I select the correct terminal?
Please provide the wire range, stud size, color requirement, and part number.

Request a Quote

Contact us with your mounting and wire requirements for the RVE Cold-Pressed Easy-Entry PVC Pre-Insulated Ring Terminal. We will confirm the suitable version and quotation.

Item	Parameter
Series	RVE
Product type	Easy-entry PVC pre-insulated ring terminal
Terminal body	Copper
Plating	Tin
Insulation material	PVC
Applicable wire range	0.5–6.0 mm², variant-dependent
Applicable wire gauges	AWG 22–10, variant-dependent
Maximum current	19A, 27A, 37A, or 48A, variant-dependent
Temperature resistance	75°C
Stud sizes	Multiple metric and American sizes
Colors	Red, blue, black, yellow, variant-dependent
Crimping tool	ZT-30J
Supply quantity	500 or 1,000 pcs/pack, variant-dependent
Certifications	CE, cULus, RoHS, CQC, IATF 16949, ISO

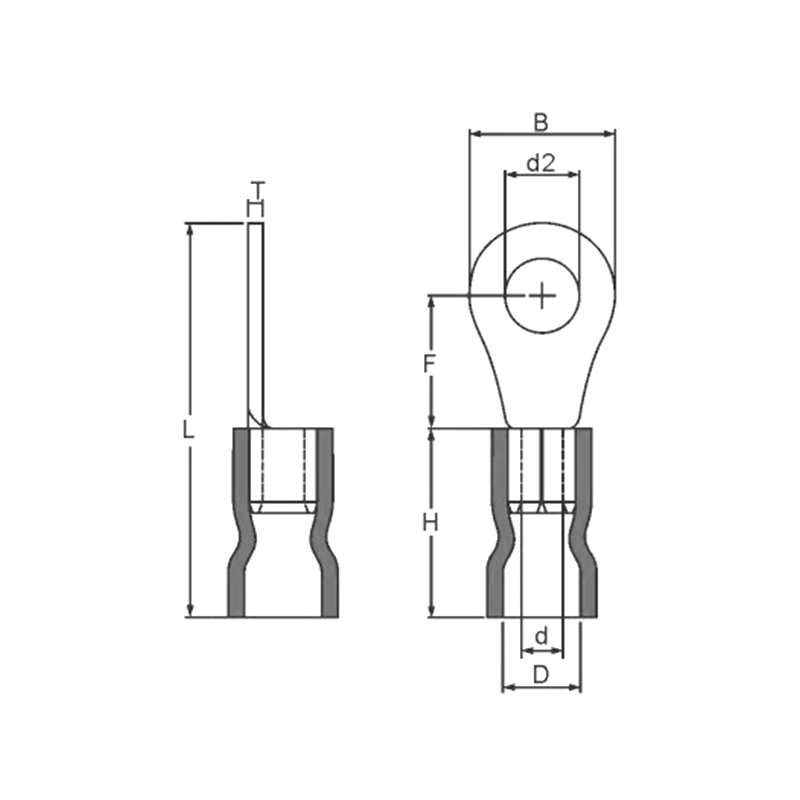

ITEM NO.	Stud size		Dimendion(mm)								PCS/PACK	COLOR	Crimping Tool	EXPLANATION
	Metric	American	d2	B	F	L	H	D	d	T
RVE1.25-3	3	#4	3.2	5.7	5	18.8	11	4	1.9	0.75	1000	Red	ZT-30J	Wire range: 0.5-1.5mm² Max 19A A.W.G: (22-16)
RVES1.25-3.5	3.5	#6	3.7
RVEM1.25-3.5	3.5	#6	3.7	6.5	6.3	20.5
RVES1.25-4	4	#8	4.3
RVEL1.25-4	4	#8	4.3	8	6.8	21.8
RVES1.25-5	5	#10	5.3
RVEL1.25-5	5	#10	5.3	9.8	8	23.8
RVES1.25-6	6	1/4"	6.4
RVE1.25-6	6	1/4"	6.4	11.6	11	27.8
RVE1.25-8	8	5/16"	8.4
RVE1.25-10	10	3/8"	10.5	13.5	14	31.5
RVE1.25-12	12	1/2"	13	16		36.5					500
RVE2-3	3	#4	3.2	6.6	4.6	19	11	4.5	2.4	0.8	1000	Blue	ZT-30J	Wire range: 1.5-2.5mm² Max 19A A.W.G: (16-14)
RVE2-3.5	3.5	#6	3.7
RVEM2-3.5	3.5	#6	3.7		6	20.3
RVES2-4	4	#8	4.3
RVEL2-4	4	#8	4.3	8.5	7.7	23
RVES2-5	5	#10	5.3
RVEL2-5	5	#10	5.3	9.5	7.2
RVE2-6	6	1/4"	6.4	12	11	28
RVE2-8	o	5/16"	6.4
RVE2-10	10	3/8"	10.5	13.6	14	31.5
RVE2-12	12	1/2"	13	19.2	13	36.4					500

ITEM NO.	Stud size		Dimendion(mm)								PCS/PACK	COLOR	Crimping Tool	EXPLANATION
	Metric	American	d2	B	F	L	H	D	d	T
RVE3.5-4	4	#8	4.3	8	8	25	13	6	3	1	1000	Black	ZT-30J	Wire range: 2.5-4mm² Max 37A A.W.G: (14-12)
RVES3.5-5	5	#10	5.3
RVEL3.5-5	5	#10	5.3	12	9.3	28.2					500
RVE3.5-6	6	1/4"	6.4
RVE3.5-8	8	5/16"	8.4	15	13.5	34
RVE3.5-10	10	3/8"	10.5
RVE3.5-12	12	1/2"	13	20	15.5	38.2
RVE5.5-3.5	3.5	#6	3.7	7.2	6	23.5	14	6	3.5	1	1000	Yellow	ZT-30J	Wire range: 4-6mm² Max 48A A.W.G: (12-10)
RVES5.5-4	4	#8	4.3
RVEL5.5-4	4	#8	4.3	9.5	8	26.7
RVE5.5-5	5	#10	5.3
RVE5.5-6	6	1/4"	6.4	12	10.5	30.5					500
RVE5.5-8	8	5/16"	8.4	15	13.3	34.8
RVE5.5-10	10	3/8"	10.5
RVE5.5-12	12	1/2"	13	19	16	39.5
