Cold-Pressed PVC Fully Insulated Female Disconnect Terminal Series

Key Features

The female terminal section is enclosed by a PVC insulation sleeve.

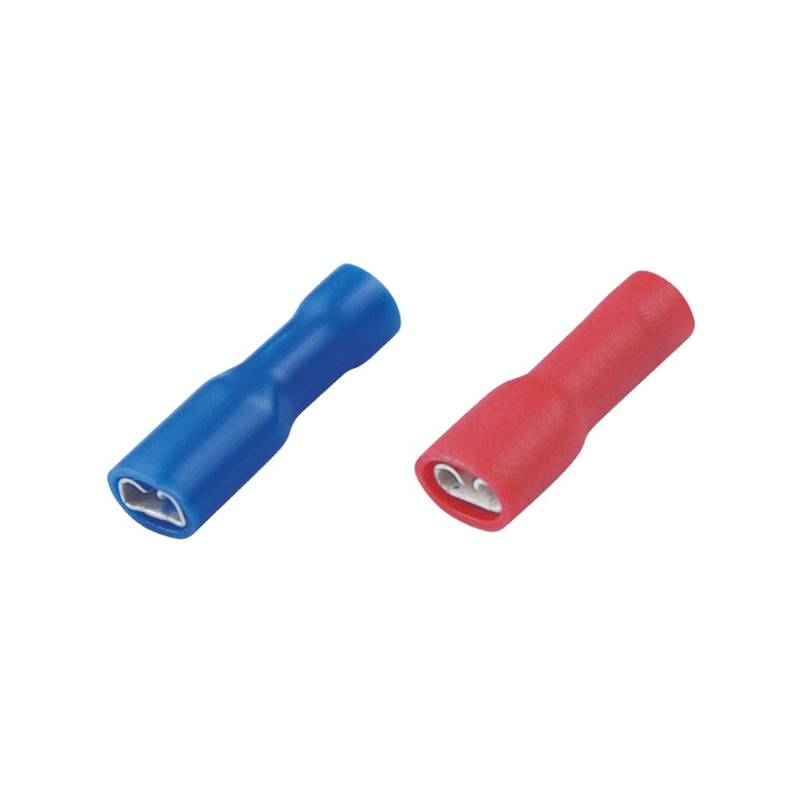

Red and blue versions identify the listed conductor-range groups.

Brass terminals with tin plating form the conductive connection section.

The listed versions are designed for crimping with ZT-125 tooling.

Applications

Control-panel wiring Electrical equipment assembly Appliance lead-wire connections Harness production Low-voltage service wiring.

Ordering & Quotation Information

Please provide the wire cross-section, required female-terminal size, insulation color, selected FDFD part number, and quantity. We can confirm the suitable fully insulated female disconnect terminal.

FAQ

Q1: What does “fully insulated” mean?
The female terminal section is enclosed by the PVC insulation sleeve after crimping.

Q2: Which wire ranges are available?
Red versions are listed for 0.5–1.5 mm² wire, while blue versions are listed for 1.5–2.5 mm² wire.

Q3: What is the maximum operating temperature?
The listed versions have a temperature resistance of 75°C.

Q4: Which crimping tool is specified?
ZT-125 is listed as the crimping tool.

Request a Quote

Contact us with your required part number and wire specification for the Cold-Pressed PVC Fully Insulated Female Disconnect Terminal Series. We will provide a quotation.
