Cold-Pressed PVC Pre-Insulated Male and Female Disconnect Terminal Series

Key Features

Male and female terminal types support detachable electrical connections.

PVC insulation covers the crimp barrel after wire termination.

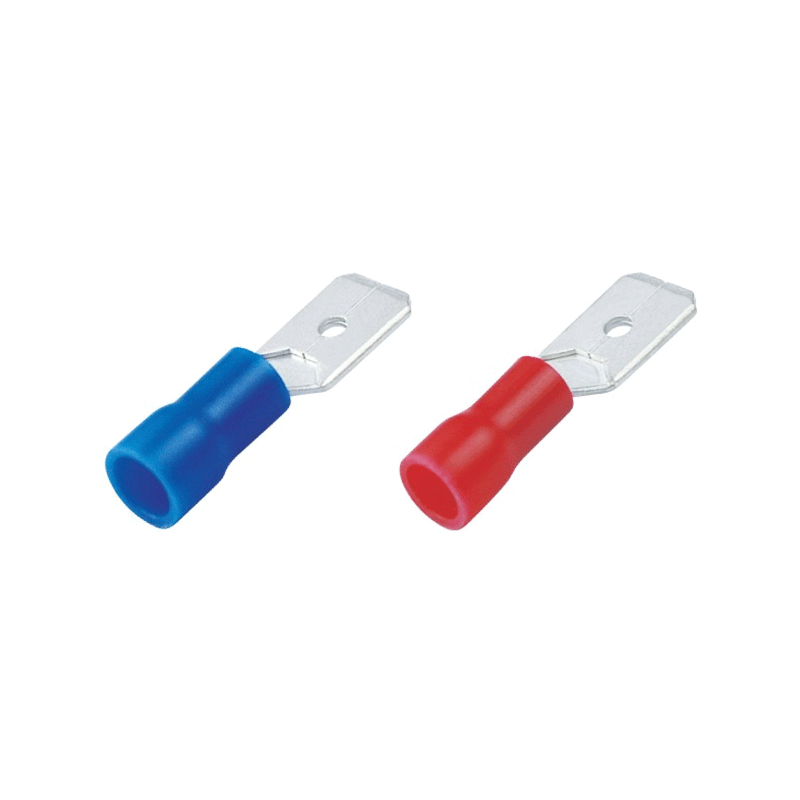

Red versions are listed for 0.5–1.5 mm² conductors, while blue versions are listed for 1.5–2.5 mm² conductors.

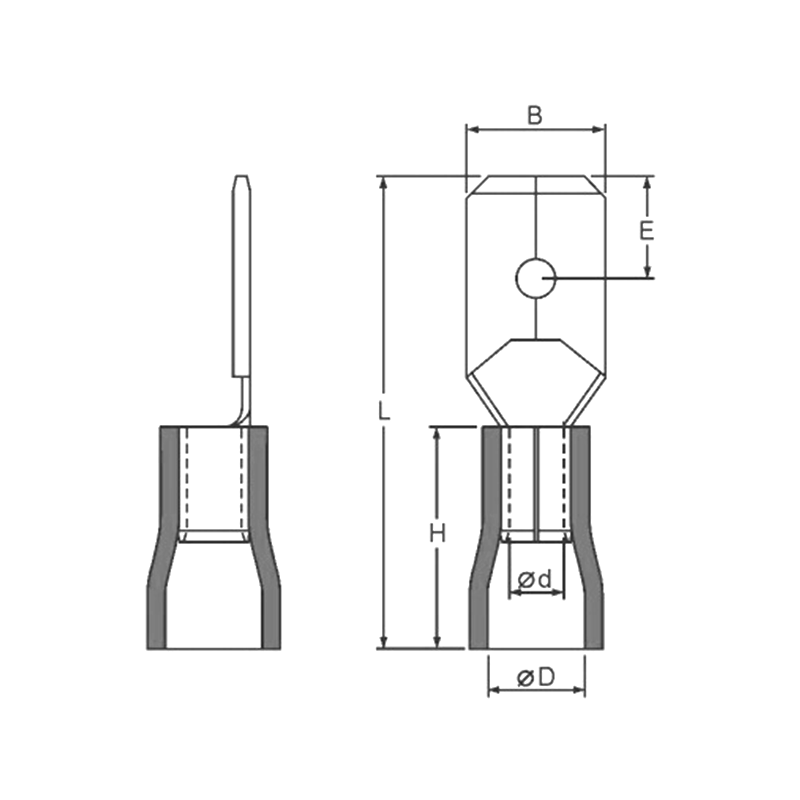

Multiple terminal dimensions are available for different connection layouts.

Applications

Electrical control cabinets Wire-harness assembly Appliance wiring Automotive electrical accessories Low-voltage maintenance wiring.

Ordering & Quotation Information

Please provide the required male or female terminal type, wire range, terminal width, insulation color, part number, and quantity. We can confirm the suitable disconnect-terminal version.

FAQ

Q1: What is the difference between MDD and FDD terminals?
MDD refers to the male terminal type, while FDD refers to the female terminal type.

Q2: Which wire ranges are available?
Red terminals cover 0.5–1.5 mm² wire, and blue terminals cover 1.5–2.5 mm² wire.

Q3: What insulation material is used?
The crimp barrel is covered with PVC insulation.

Q4: Can I select a specific terminal width?
Yes. Please provide the required terminal type, part number, and connection dimensions.

Request a Quote

Send your wire and terminal requirements for the Cold-Pressed PVC Pre-Insulated Male and Female Disconnect Terminal Series. We will confirm the suitable version and quotation.
