Cold-Pressed Nylon Pre-Insulated Male and Female Disconnect Terminal Series

Key Features

Male and female terminal options support detachable connection assemblies.

Nylon insulation is listed for applications requiring a 105°C temperature rating.

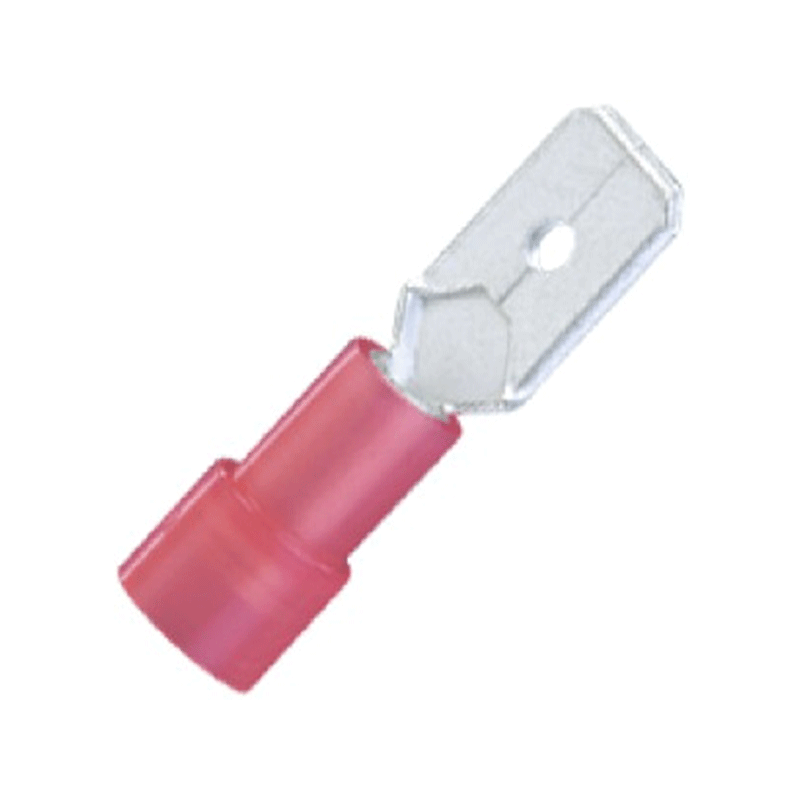

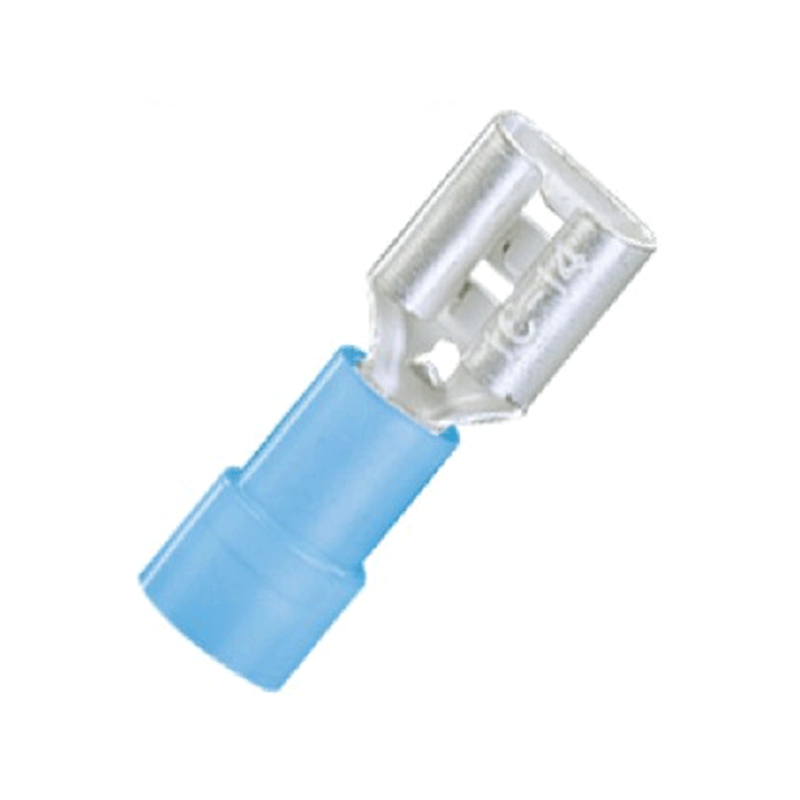

Red and blue versions distinguish the listed wire-range groups.

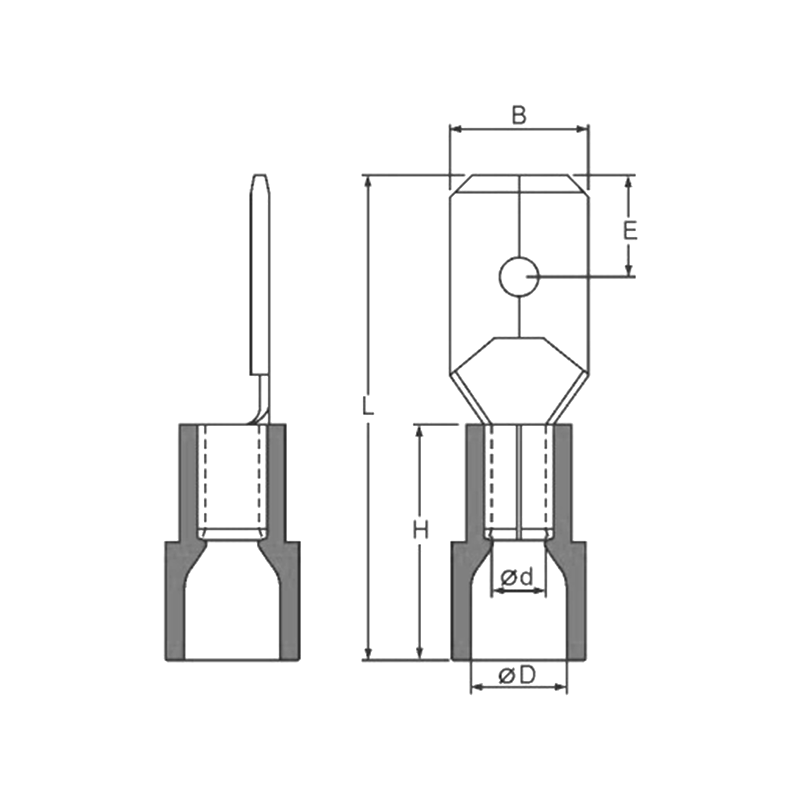

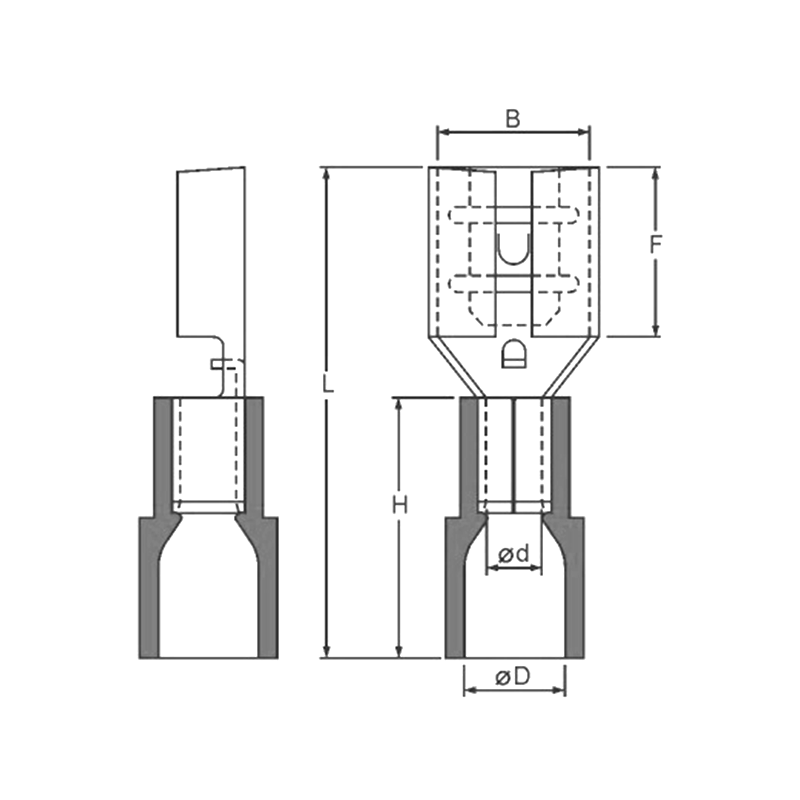

Multiple male and female terminal dimensions are available by part number.

Applications

Industrial control wiring Electrical wire-harness assembly Vehicle accessory wiring Power-distribution assemblies Appliance electrical connections.

Ordering & Quotation Information

Please provide the required male or female type, conductor range, terminal dimensions, insulation color, part number, and quantity. We can identify the correct nylon pre-insulated disconnect terminal version.

FAQ

Q1: What is the main difference between the PVC and nylon versions?
This series uses nylon insulation and is listed with a 105°C temperature resistance.

Q2: Which wire sizes are covered?
Red versions cover 0.5–1.5 mm² conductors, while blue versions cover 1.5–2.5 mm² conductors.

Q3: Are both male and female terminals available?
Yes. The series includes MDNY male and FDNY female terminal versions.

Q4: What information is needed for quotation?
Please provide the terminal type, wire size, part number, and purchasing quantity.

Request a Quote

Send your connection requirements for the Cold-Pressed Nylon Pre-Insulated Male and Female Disconnect Terminal Series. We will confirm the suitable version and quotation.
