Cold-Pressed Nylon Fully Insulated Male and Female Disconnect Terminal Series-Zhejiang Zhente Technology Co., Ltd.

Product Details
Parameter

Key Features

Male and female terminal types support detachable electrical connections.

Nylon insulation encloses the terminal connection section.

Red and blue versions correspond to different listed conductor ranges.

The series is listed with a 105°C temperature resistance.

Applications

Electrical control equipment Harness production Appliance wiring Vehicle electrical accessories Serviceable low-voltage connections.

Ordering & Quotation Information

Please provide the required male or female type, wire size, insulation color, part number, and order quantity. We can confirm the suitable nylon fully insulated disconnect terminal version.

FAQ

Q1: What makes this terminal fully insulated?
The nylon sleeve encloses the terminal connection section and crimped wire barrel.

Q2: Which wire ranges are available?
Red versions are listed for 0.5–1.5 mm² wire, while blue versions are listed for 1.5–2.5 mm² wire.

Q3: What temperature resistance is listed?
The series is listed with a 105°C temperature resistance.

Q4: Can male and female versions be ordered separately?
Yes. Please provide the required MDFN or FDFN part number.

Request a Quote

Send your terminal and wire requirements for the Cold-Pressed Nylon Fully Insulated Male and Female Disconnect Terminal Series. We will confirm the suitable version and quotation.

Company

Zhejiang Zhente Technology Co., Ltd.

Zhejiang Zhente Technology Co., Ltd. specializes in new energy components, with applications in energy storage batteries, new energy vehicles, cloud servers, aerospace, telecommunications and electrical fields.
As a national high-tech enterprise, we participated in drafting national standards for electric vehicle electrical safety, and hold provincial-level industrial design and technology research center status, as well as "Specialized, Refined, Differential, and Innovative" recognition. We operate independent mold design, automation equipment design, and experimental centers.

Certificate Of Honor

News

New website is online!
27 Jul, 2026
We are pleased to announce that the official website of Zhejiang Zhente Technology Co., Ltd. is now online. Here, you can find our latest product information, service introductions, industry trends, a...
READ MORE
2 Pin Waterproof Auto Connector Kit - Male & Female Plug with Terminals & Seals
27 Jul, 2026
This 2 Pin Waterproof Automotive Connector Kit is a complete, ready-to-use solution for secure, weatherproof electrical connections in automotive, motorcycle, marine, and outdoor machinery applicatio...
READ MORE
Principles of Electrical Connectors and Integrated Interconnect Components.
27 Jul, 2026
Electrical connectors and integrated interconnect components serve as the fundamental electromechanical backbone of modern electronic and electrical systems, undertaking the core function of establis...
READ MORE
Wide Applications of Terminal Blocks in Daily Life.
27 Jul, 2026
Introduction When we talk about electrical safety and circuit stability in daily life, terminal blocks are one of the most essential but easily overlooked components. As a core electrical connecting ...
READ MORE

Quick-Disconnect & Bullet Terminals Industry knowledge

Cooperate with us

Quick Links
Home Products Industry Support Company News Contact Us
Product Categories
Power Connectors Waterproof Wire-to-Wire Connectors Automotive Connectors Wire-to-Board Connectors Controller Connector Systems PCB Screw Terminal Blocks Fuse Holders Ring Tongue Terminals Cold-Pressed Terminals Connector Contacts
Contact Us

Telephone: +86-577-62965566

Email: sales@zeetzj.com

Add：No. 8 Panzhuyang Road, Yanjiang Industrial Park, Beibaixiang Town, Yueqing City, Zhejiang Province

X Facebook

Products News

Item	Specification
Series	MDFN / FDFN
Product type	Nylon fully insulated male and female disconnect terminals
Terminal body	Brass
Plating	Tin
Insulation material	Nylon
Red version wire range	0.5–1.5 mm², AWG 22–16
Blue version wire range	1.5–2.5 mm², AWG 16–14
Maximum current	10A for red versions; 15A for blue versions
Temperature resistance	105°C
Crimping tool	ZT-125
Supply quantity	500 or 1,000 pcs/pack, variant-dependent
Certifications	RoHS, CQC, IATF 16949, ISO

ITEM NO.	Dimension mm						Copper Thickness	COLOR	Crimping Tool	PCS/PACK	EXPLANATION

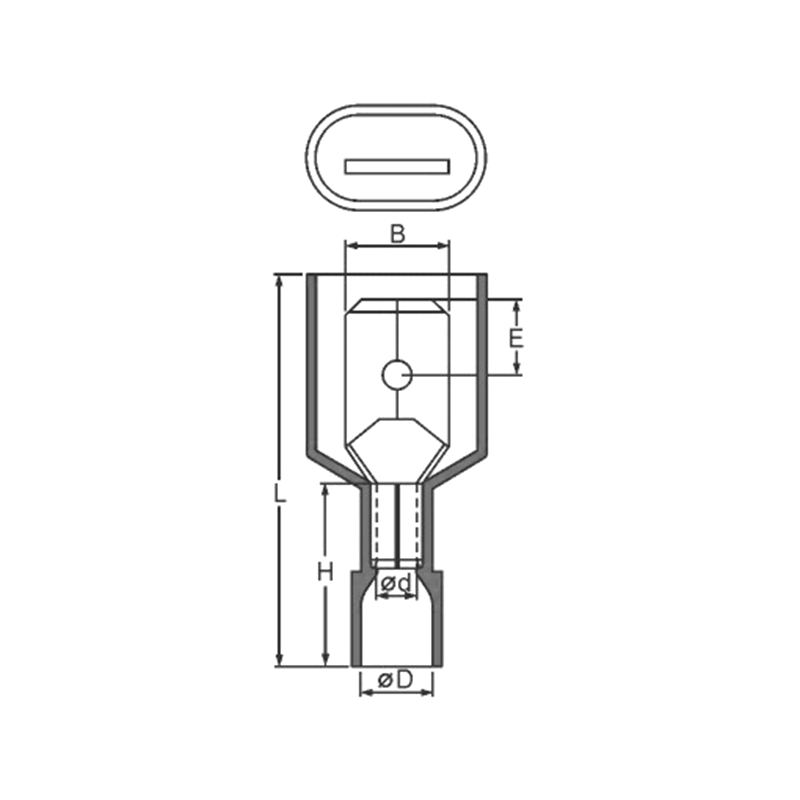

ITEM NO.	B	E	d	D	L	H	Copper Thickness	COLOR	Crimping Tool	PCS/PACK	EXPLANATION
MDFN1.25-250	6.3	4.6	2	4.5	24	11	2*0.4	Red	ZT-125	500	Wire range: 0.5-1.5mm² Max current:10A Max temp: 105℃ A.W.G: (22-16)
MDFN2-250	6.3	4.6	2.5	5	24	11.5	2*0.4	Blue	ZT-125	500	Wire range: 1.5-2.5mm² Max current:15A Max temp: 105℃ A.W.G: (16-14)

ITEM NO.	Dimension mm						Copper Thickness	COLOR	Crimping Tool	PCS/PACK	EXPLANATION

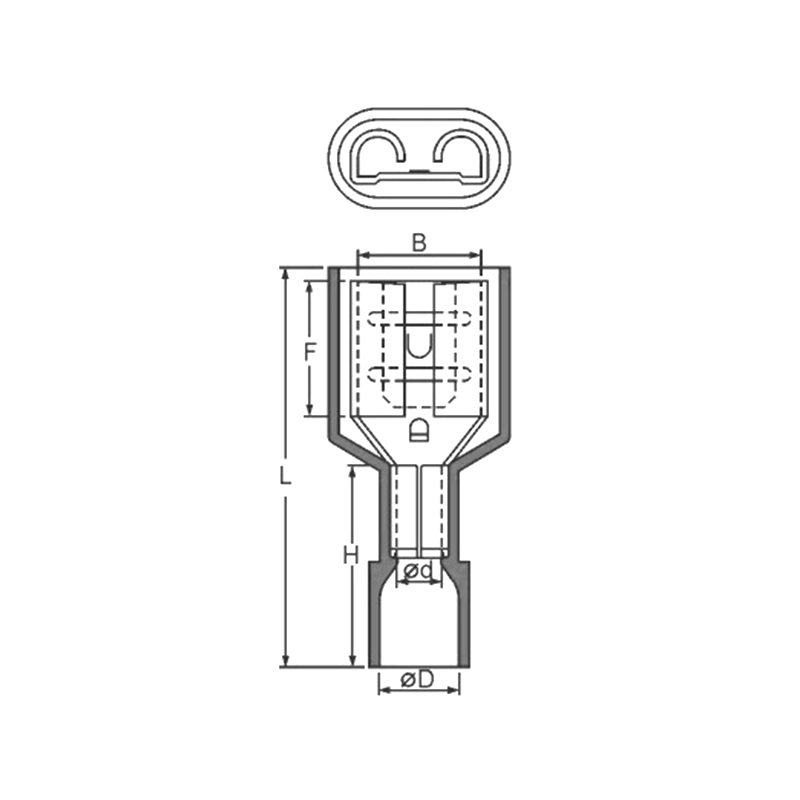

ITEM NO.	B	L	F	D	d	H	Copper Thickness	COLOR	Crimping Tool	PCS/PACK	EXPLANATION
FDFN1.25-250	6.8	22.5	7.5	4.5	21	11.5	0.4	Red	ZT-125	1000	Wire range: 0.5-1.5mm² Max current:10A Max temp: 105℃ A.W.G: (22-16)
FDFN2-250	6.8	22.5	7.5	5	26	11.5	0.4	Blue	ZT-125	1000	Wire range: 1.5-2.5mm² Max current:15A Max temp: 105℃ A.W.G: (16-14)
