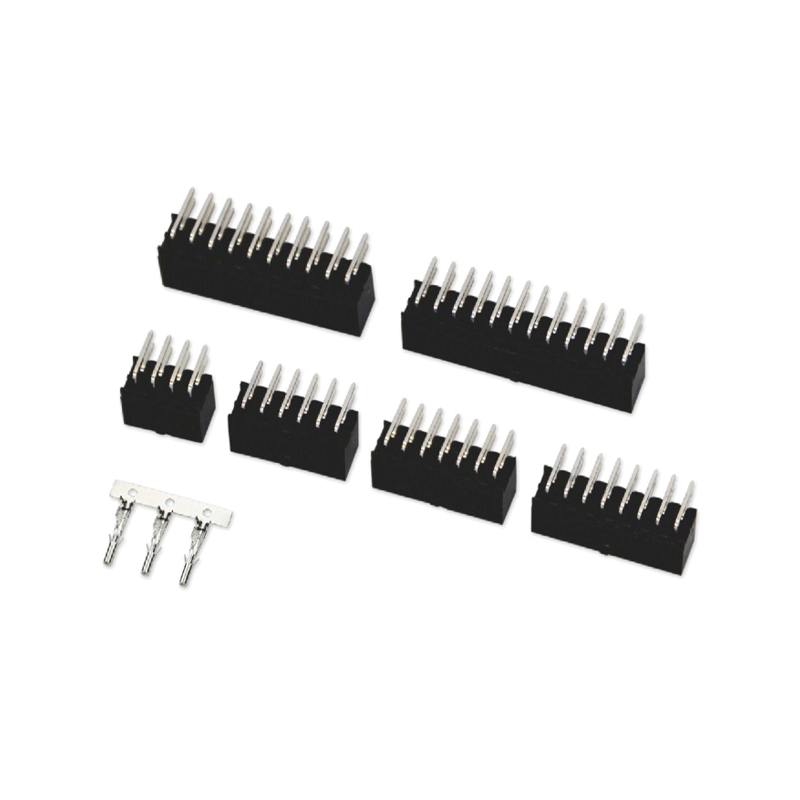

ZT32006-WA 3.0mm Pitch Right-Angle Pin Header

Key Features

Right-angle pins guide the cable-side connector along the board instead of directly above it.

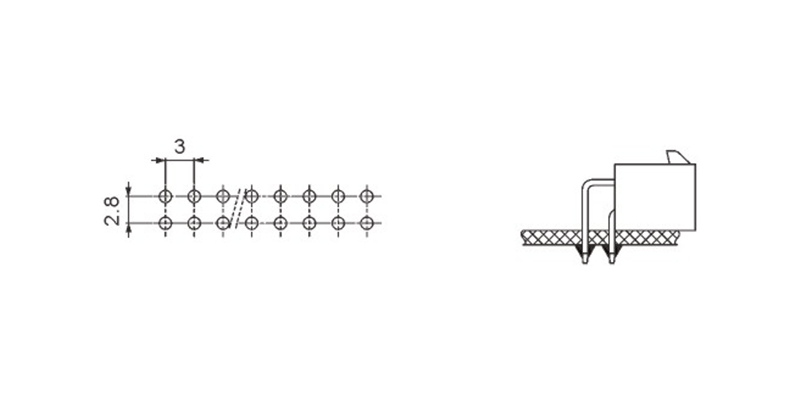

The range covers 8 to 24 circuits while maintaining a 3.0 mm two-row contact arrangement.

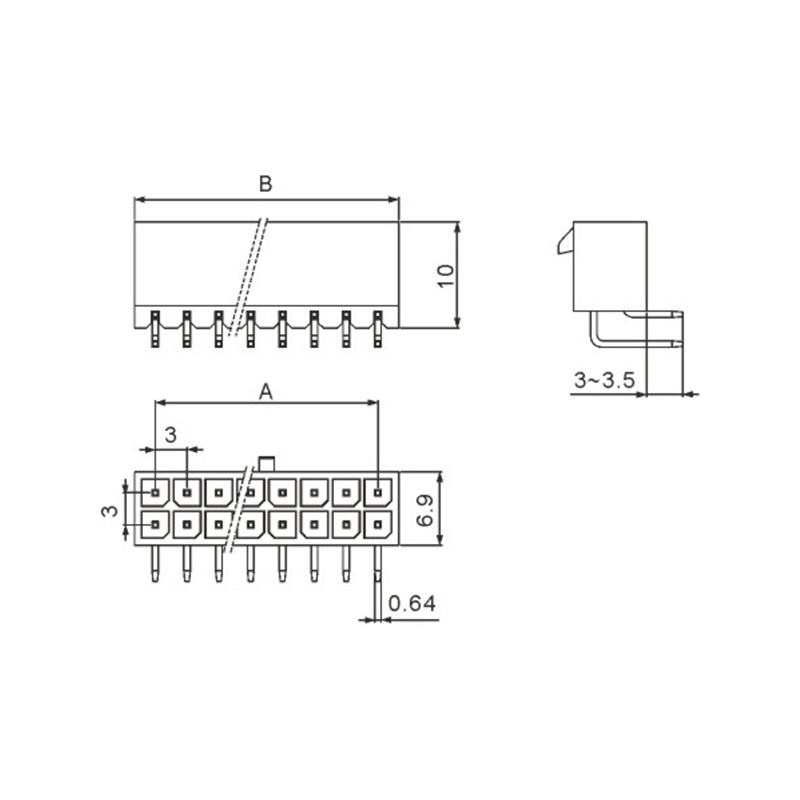

Model-dependent body dimensions range from 9 mm to 33 mm in A dimension and from 12.9 mm to 36.9 mm in B dimension.

The header supports 5A rated current and 250V AC/DC rated voltage.

Applications

The 3.0mm pitch right-angle pin header is used where the cable harness needs to exit along the PCB surface. It is suitable for compact electrical assemblies in which connector orientation affects enclosure clearance and harness routing.

Ordering & Quotation Information

Please provide the circuit count, required cable exit direction, PCB layout, mating receptacle, and quantity. Include enclosure clearance information if the connector sits close to a housing wall or other components.

FAQ

Q1: How is this model different from a straight pin header?
Its pins are bent at a right angle, so the mating connector is positioned parallel to the PCB.

Q2: Which circuit counts can be selected?
The range includes 8, 12, 14, 16, 20, and 24 circuits.

Q3: Can it be used on a 1.6 mm PCB?
Yes. The stated PCB thickness is 1.6 mm.

Q4: What information is needed for selection?
Confirm the circuit count, PCB space, cable routing direction, mating connector, and application voltage and current.

Request a Quote

For a ZT32006-WA 3.0mm Pitch Right-Angle Pin Header quotation, send your required circuit count and board layout information.
