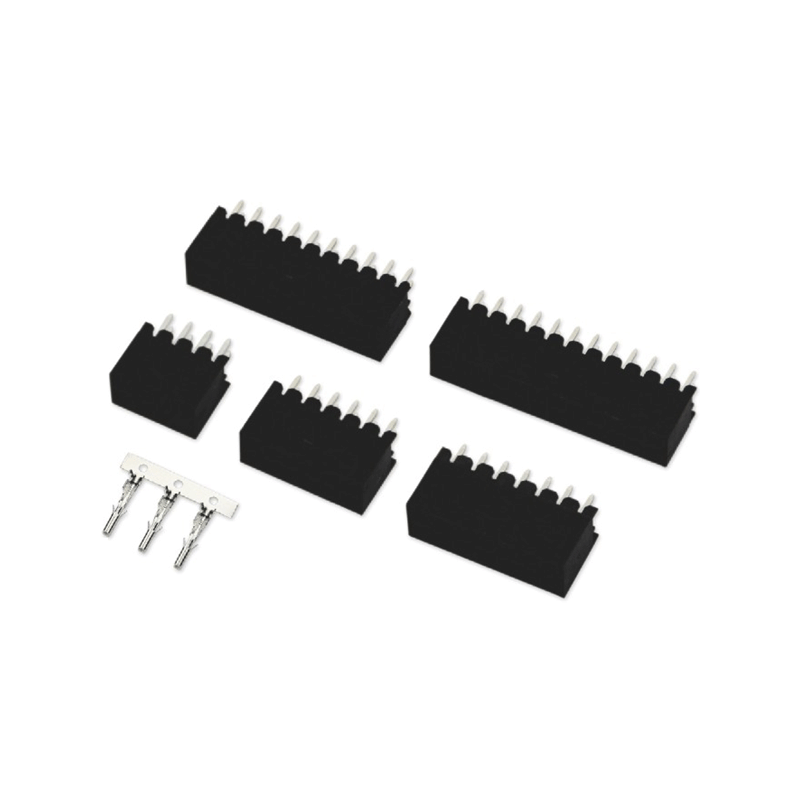

ZT32006-A 3.0mm Pitch Straight Pin Header

Key Features

Available circuit counts from 8 to 24 allow the interface size to be selected around the required wiring layout.

Straight pins support through-board mounting where the cable connector mates perpendicular to the PCB.

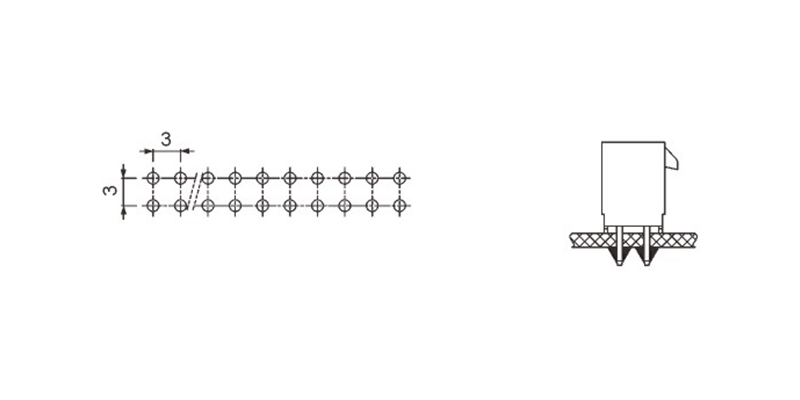

The two-row 3.0 mm layout provides a compact board-side connection for multi-circuit harnesses.

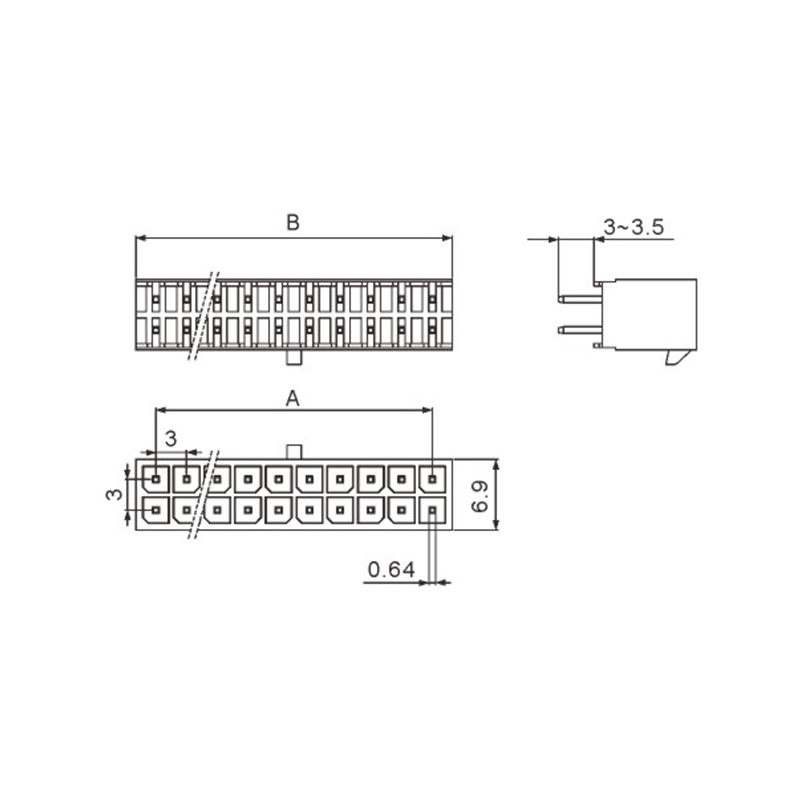

Model-dependent body dimensions range from 9 mm to 33 mm in A dimension and from 12.9 mm to 36.9 mm in B dimension.

Applications

The 3.0mm pitch straight pin header is suitable for control boards, electrical modules, and harness interfaces that require a fixed two-row connector layout. It is selected by circuit count, PCB mounting space, and the mating cable connector configuration.

Ordering & Quotation Information

Please provide the required circuit count, PCB thickness, mating receptacle details, pinout, and expected quantity. A board drawing is recommended when surrounding component clearance needs to be checked.

FAQ

Q1: Which circuit counts are available?
ZT32006-A is available in 8, 12, 14, 16, 20, and 24 circuits.

Q2: Is this a cable-side connector?
No. It is a straight PCB header that requires a compatible cable-side receptacle.

Q3: What PCB thickness is specified?
The product is designed for a 1.6 mm PCB.

Q4: Which details are required before ordering?
Confirm the circuit count, pinout, board space, mating connector, and required quantity.

Request a Quote

For a ZT32006-A 3.0mm Pitch Straight Pin Header quotation, send your circuit requirement and board-side connection details.
