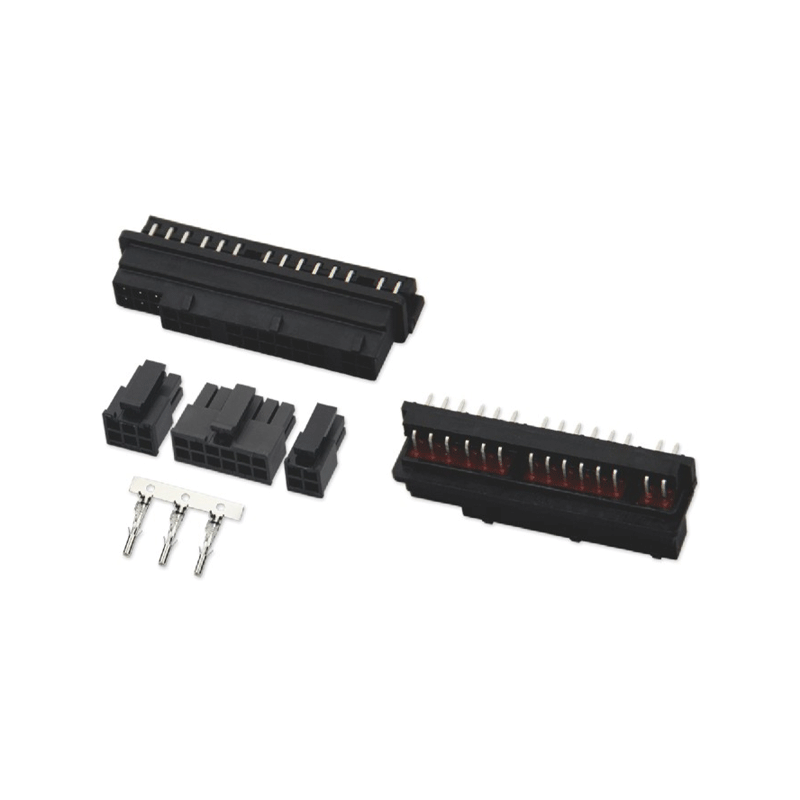

ZT32004 28-Pin 3.0mm Multi-Section Header

Key Features

The 28 contacts are arranged as 6+6+12+4 sections rather than as one undivided connector block.

Multiple contact groups help separate harness functions within one board-side interface.

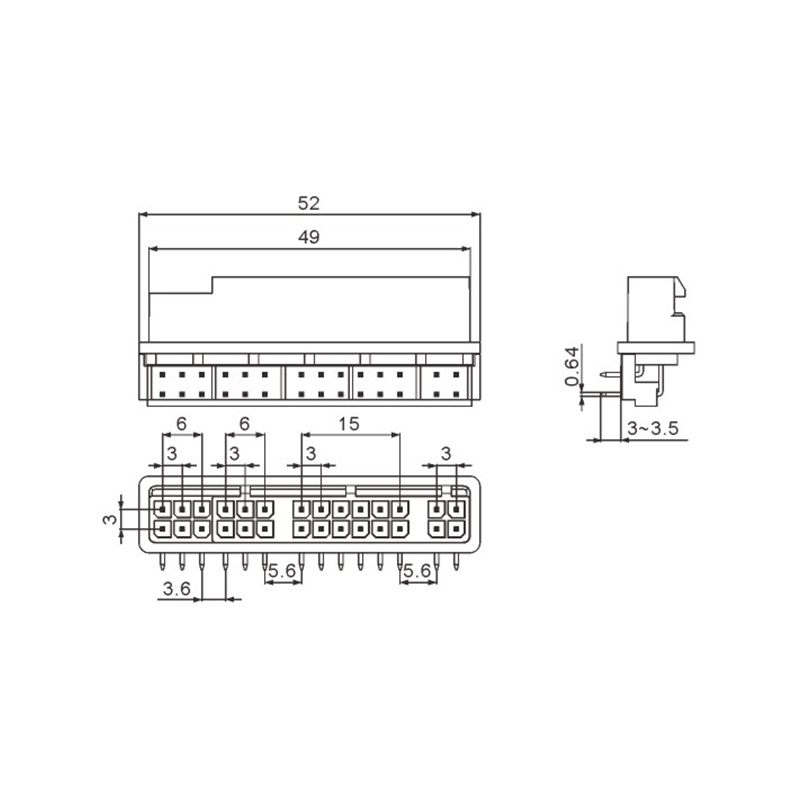

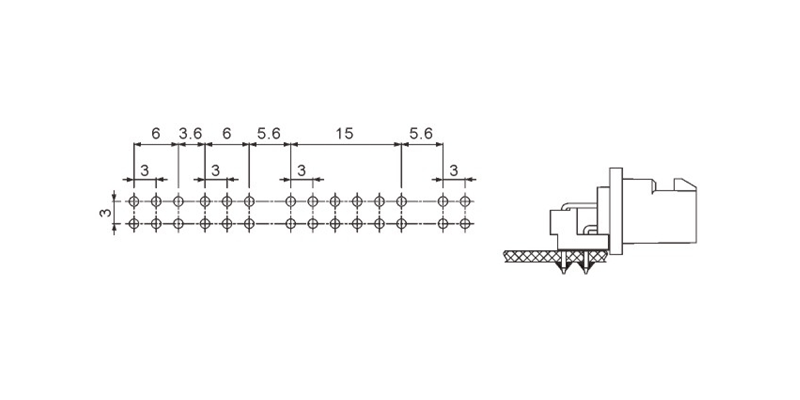

The header uses a 3.0 mm pitch and a 1.6 mm PCB mounting design.

Rated values are 250V AC/DC and 5A.

The interface is configured for compatible 4-, 6-, and 12-circuit cable-side receptacles.

Applications

This 28-pin multi-section header is suitable for control assemblies that need several independently organized cable interfaces on one PCB. It helps buyers specify a single board connector location while retaining separate 4-, 6-, and 12-circuit mating sections.

Ordering & Quotation Information

Please provide the complete circuit map, mating-section requirements, board layout, installation clearance, and quantity. The pin assignment should be checked before tooling or sample confirmation.

FAQ

Q1: Is ZT32004 one 28-pin connector or several separate interfaces?
It is one board header with four defined sections arranged as 6+6+12+4 circuits.

Q2: What cable-side connectors are required?
The matching cable interface is divided into 4-, 6-, and 12-circuit receptacle sections.

Q3: Can the four sections be used for different harness branches?
Yes. The separated structure is designed to organize multiple defined connections on the same board interface.

Q4: What should be supplied for a quotation?
Provide the pinout, mating-section arrangement, PCB drawing, installation space, and required quantity.

Request a Quote

For a ZT32004 28-Pin 3.0mm Multi-Section Header quotation, send the circuit allocation and matching harness requirements.
