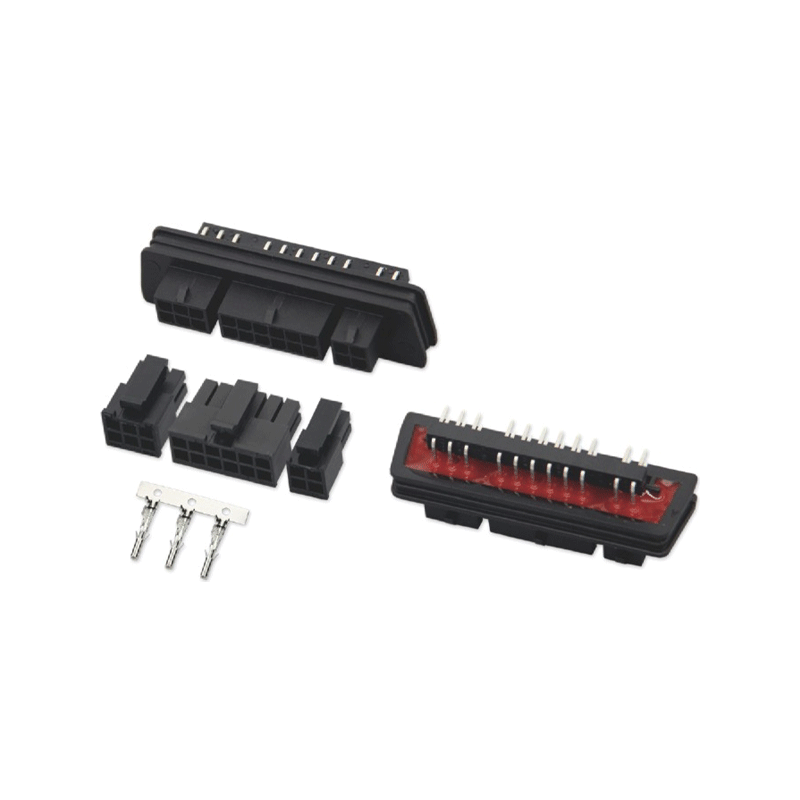

ZT32005 22-Pin 3.0mm Multi-Section Header

Key Features

The 22 contacts are divided into 6-, 12-, and 4-circuit connection sections.

Three sections reduce the need to place separate small headers across the PCB.

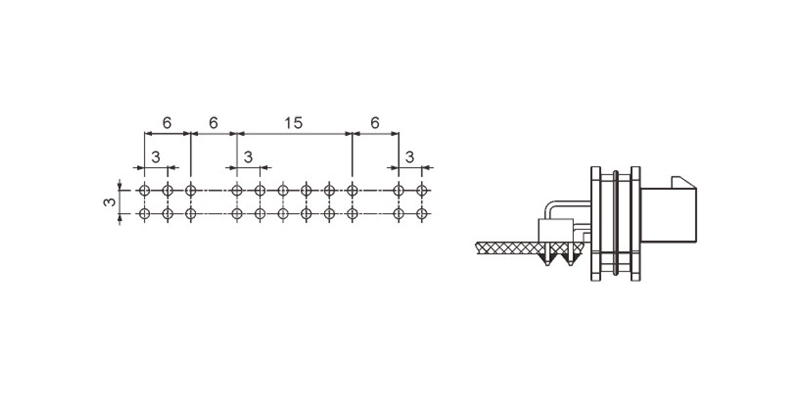

The connector uses a 3.0 mm pitch and is designed for 1.6 mm PCB mounting.

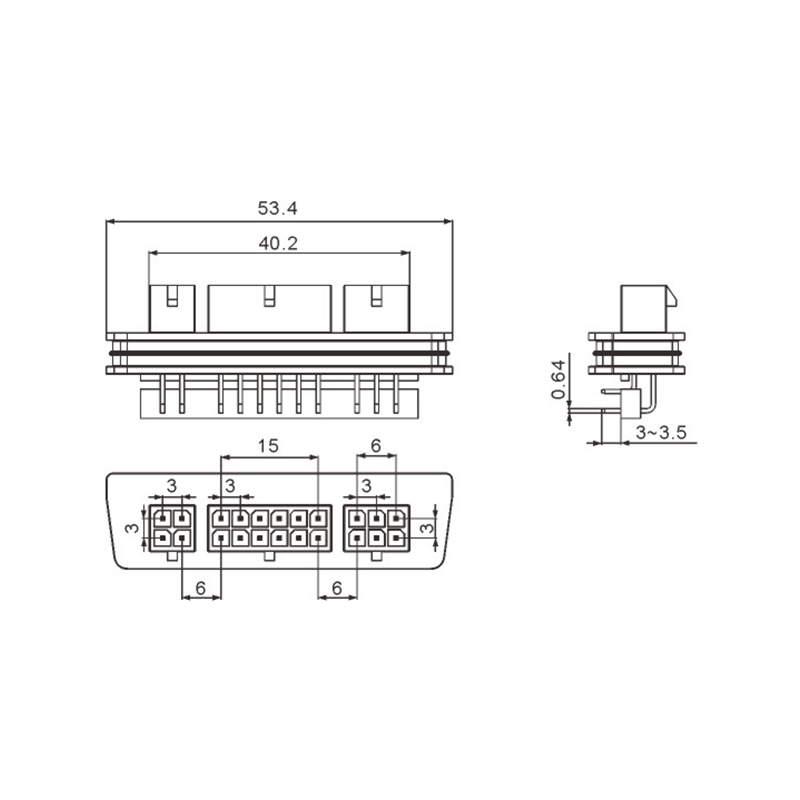

A 53.4 mm overall body length supports the defined multi-section layout.

Rated voltage is 250V AC/DC and rated current is 5A.

Applications

The 22-pin multi-section header is suitable for electrical equipment that needs three separately arranged cable branches at one board connection point. Its 6+12+4 layout is appropriate when the harness architecture requires clear section separation.

Ordering & Quotation Information

For technical confirmation, provide the 6+12+4 pin assignment, matching receptacle layout, PCB drawing, enclosure clearance, and quantity. This prevents section mismatch during harness and board assembly.

FAQ

Q1: What is the circuit arrangement of ZT32005?
This model has 22 circuits arranged as 6+12+4 sections.

Q2: Is it suitable for a single 22-pin receptacle?
No. The board header is structured around three separate 6-, 12-, and 4-circuit mating sections.

Q3: What PCB thickness is required?
The stated mounting condition is a 1.6 mm PCB.

Q4: What should buyers confirm before ordering?
Confirm the three-section pinout, mating connector arrangement, board layout, installation clearance, and purchase quantity.

Request a Quote

For a ZT32005 22-Pin 3.0mm Multi-Section Header quotation, send the 6+12+4 circuit map and mating-interface details.
