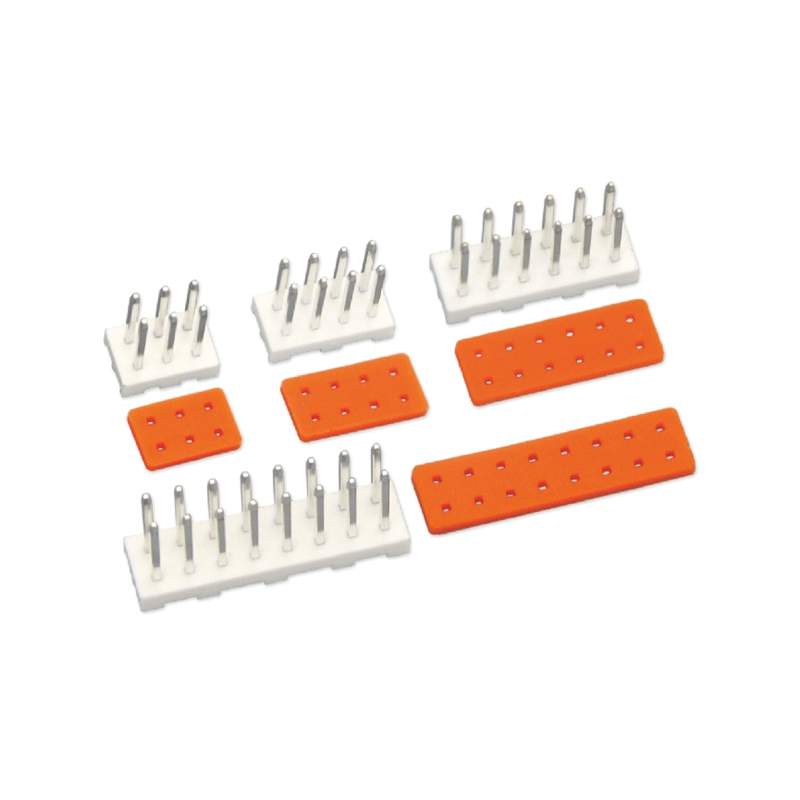

ZT31002 4.2mm Sealed Through-Hole Header

Key Features

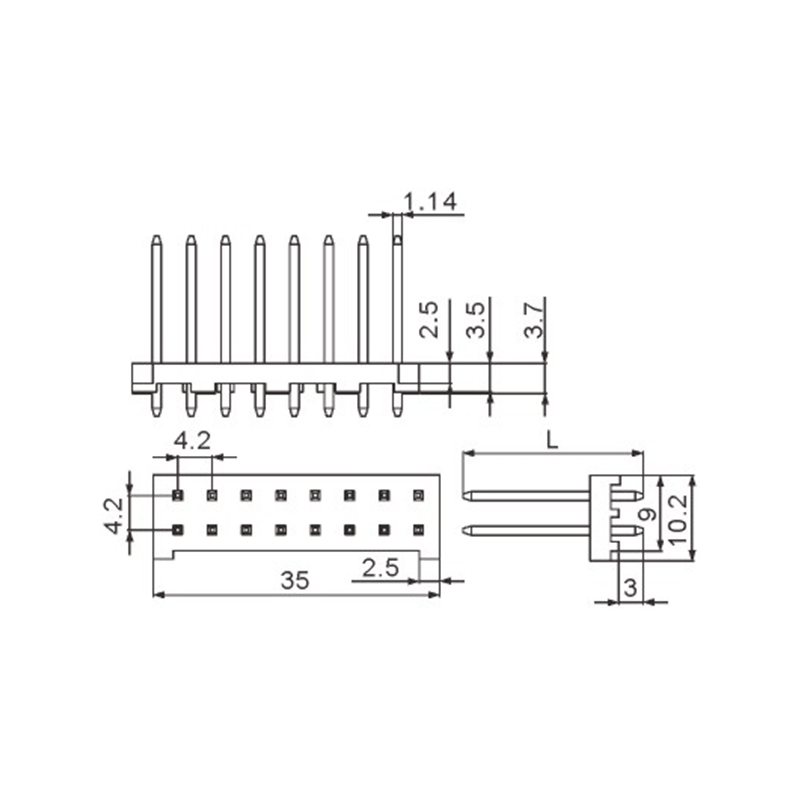

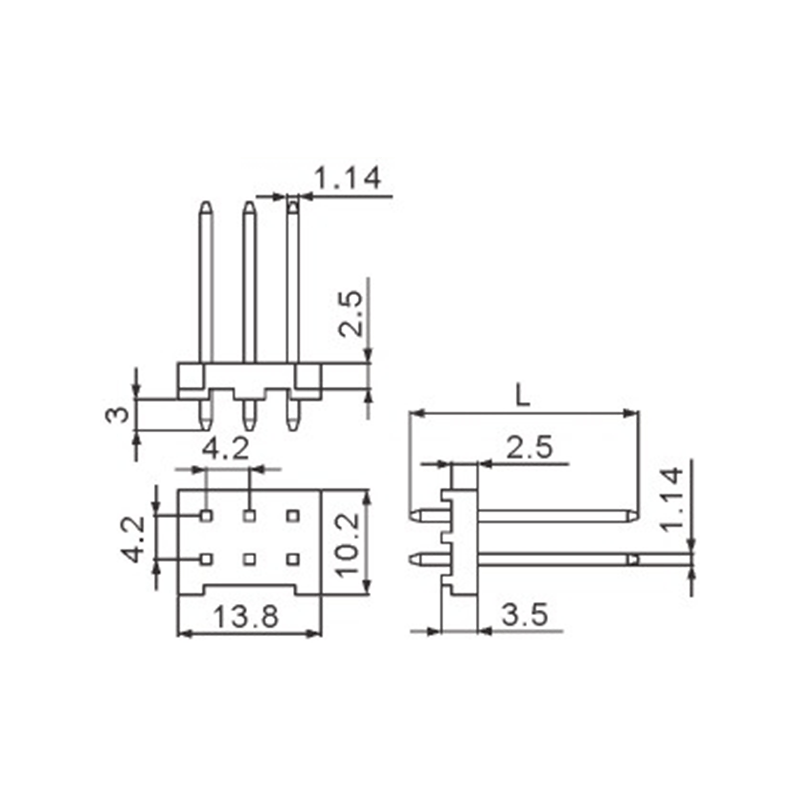

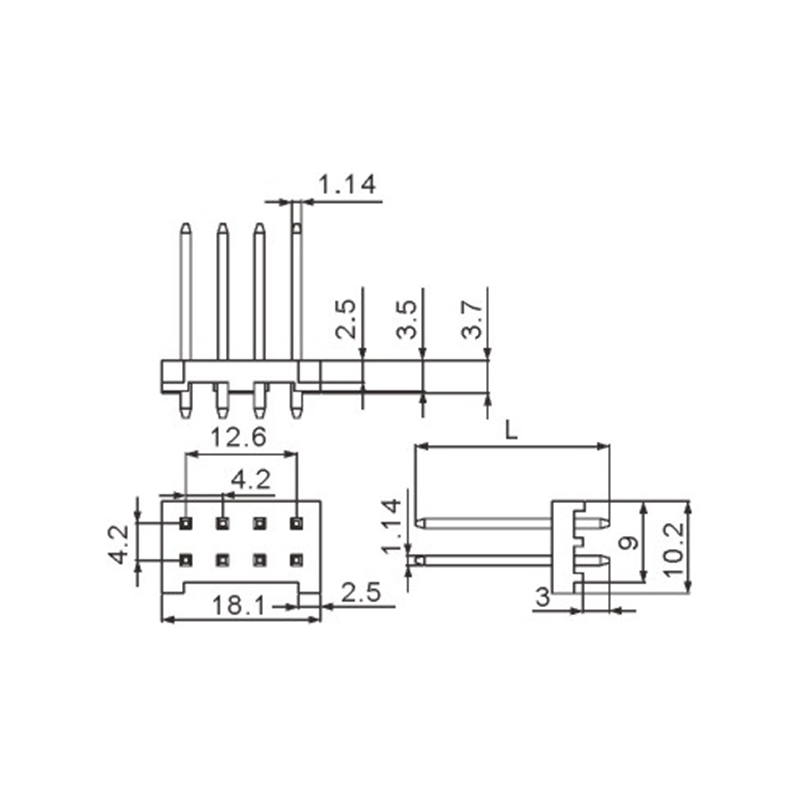

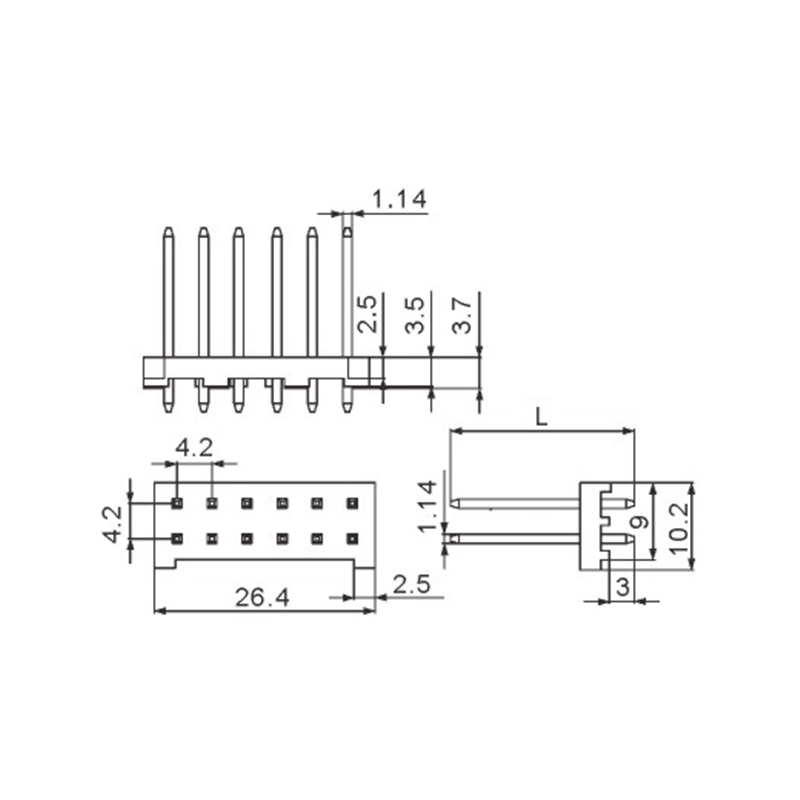

Vertical through-hole pins support secure PCB mounting.

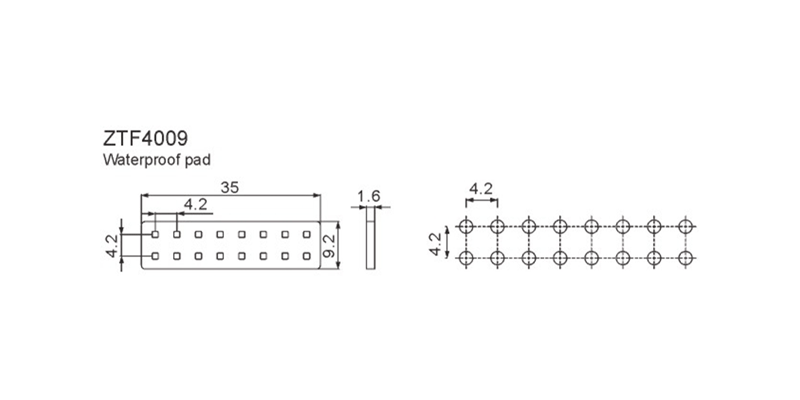

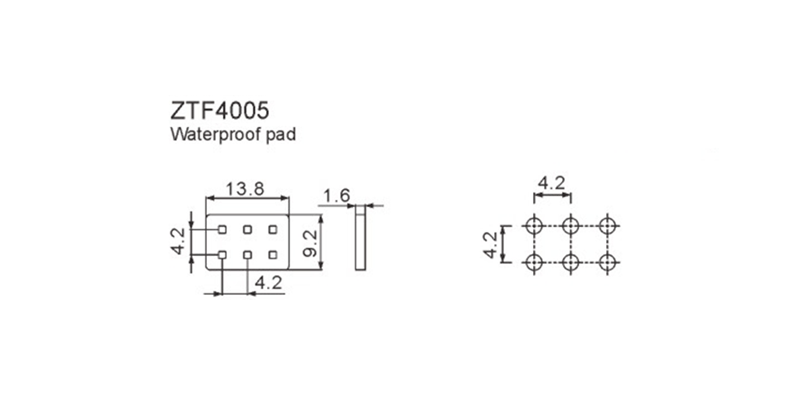

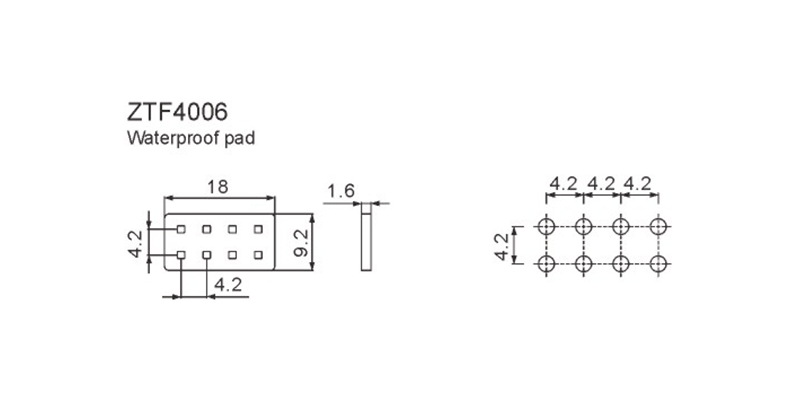

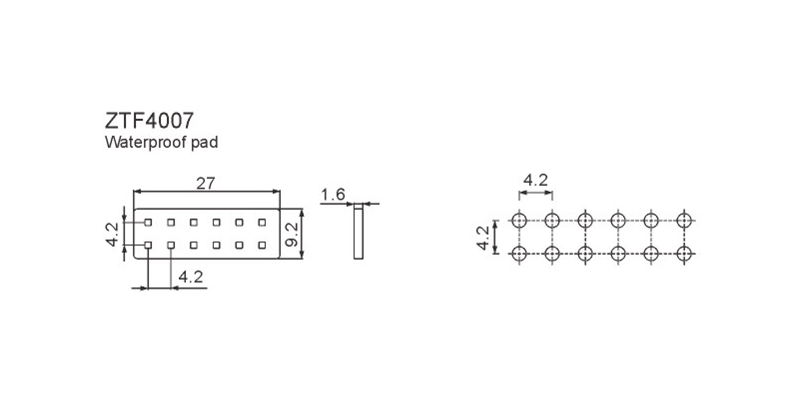

Matched waterproof pads are available for each circuit configuration.

6, 8, 12 and 16 circuit options cover several harness widths.

The 4.2mm pitch maintains consistent terminal spacing across the series.

White header bodies and orange waterproof pads provide clear component identification.

Applications

Industrial control PCBs. Power and signal distribution boards.

Electrical assemblies requiring sealed board mounting. Wire-to-board interfaces with 6 to 16 circuit requirements.

Ordering & Quotation Information

Please specify the required circuit count, pin length, PCB thickness and waterproof-pad requirement. Confirming the board footprint and selected pad together is important before sample production.

FAQ

Q1: Which circuit counts are available?
A: The header is available in 6, 8, 12 and 16 circuit versions.

Q2: Is this a surface-mount header?
A: No. This product uses vertical through-hole pins for PCB mounting.

Q3: Does each header use the same waterproof pad?
A: The waterproof pad should match the selected circuit configuration.

Q4: What PCB thickness is applicable?
A: The listed applicable PCB thickness is 1.6mm.

Request a Quote

Send your circuit count, pin-length requirement and PCB information to quote the ZT31002 4.2mm Sealed Through-Hole Header.
