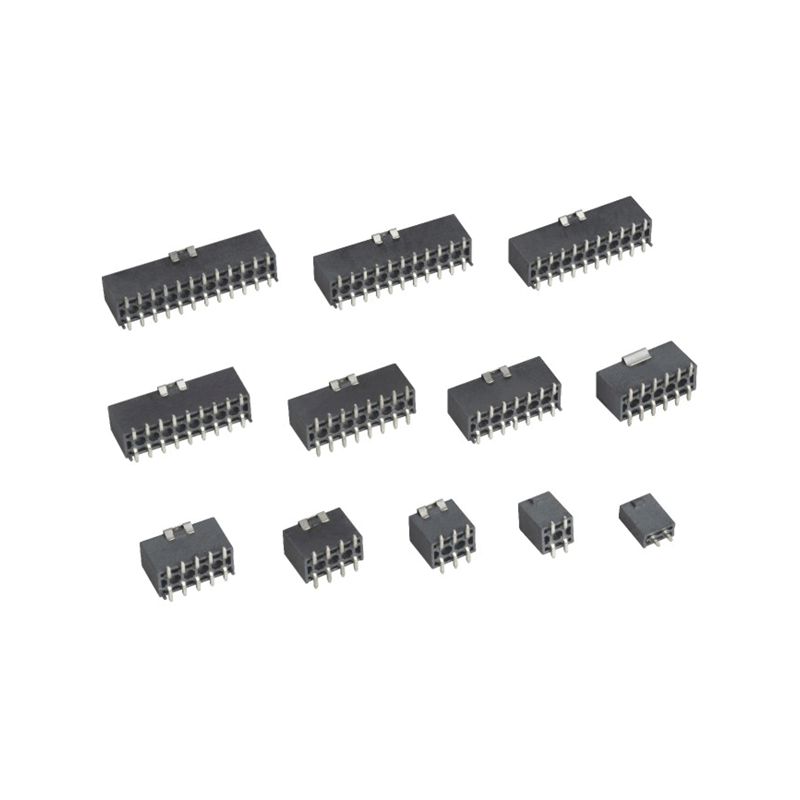

ZT31001 4.2mm Vertical SMT Header

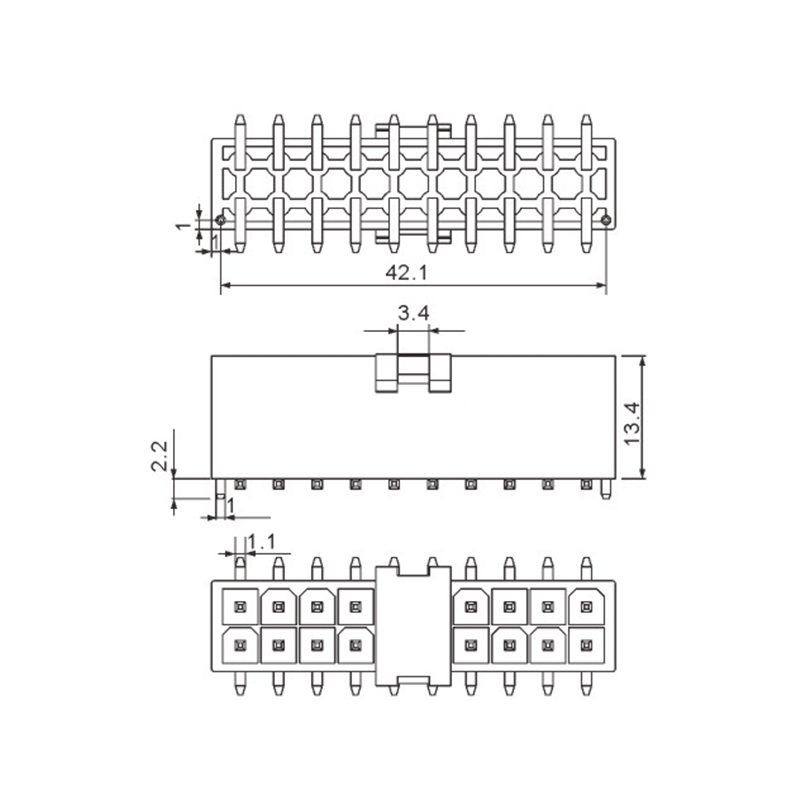

Key Features

Vertical surface-mount construction supports upright wire harness mating.

2 to 24 circuit options allow the same header platform to serve different PCB layouts.

The black LCP housing is specified with a 270°C temperature requirement.

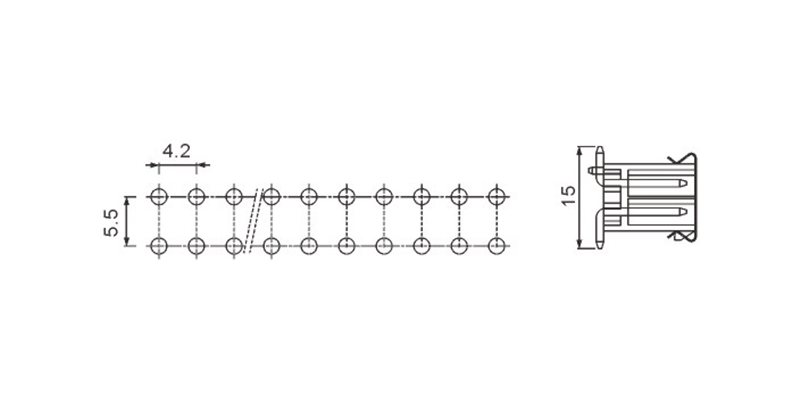

A 4.2mm pitch supports organized multi-position board connections.

The header is designed for 1.5mm PCB mounting.

Applications

Surface-mount control boards. Power electronics assemblies.

Compact industrial control modules. Multi-circuit wire-to-board interfaces.

Ordering & Quotation Information

Please provide the required circuit count, PCB footprint, assembly process and planned order quantity. Sample production uses the specified SMT pad layout.

FAQ

Q1: Is this a through-hole header?
A: No. This product is a surface mount header for SMT PCB assembly.

Q2: What circuit counts are available?
A: The series is available from 2 to 24 circuits.

Q3: Why is LCP used for the housing?
A: The product uses an LCP housing and lists a 270°C temperature requirement.

Q4: What should be checked before ordering?
A: Confirm the circuit count, board footprint, mating direction and SMT assembly process.
