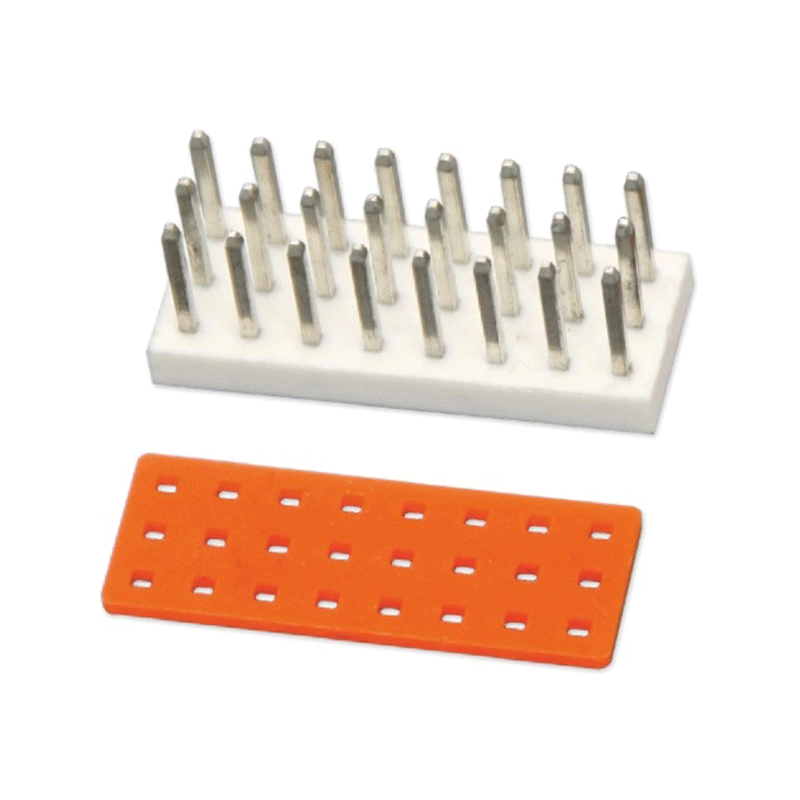

ZT2053 24-Circuit Sealed Through-Hole Header

Key Features

A 24-circuit layout supports high-density harness connections.

Vertical through-hole pins provide a stable PCB-mounted interface.

A matched waterproof pad supports a sealed mounting arrangement.

White and black PBT housing options are listed.

Two pin-length options allow selection for different board and enclosure requirements.

Applications

High-circuit-count control modules. Industrial electrical cabinets.

Multi-wire power and signal harnesses. Sealed PCB interfaces with 24-position requirements.

Ordering & Quotation Information

Please confirm the required housing color, pin length, PCB thickness and connector orientation. For 24-circuit applications, a board-layout or pin-assignment reference helps verify the selected version.

FAQ

Q1: Is this header available in more than one pin length?
A: Yes. The listed pin-length options are 16.8mm and 17.6mm.

Q2: Can I choose white or black housing?
A: Yes. Both white and black PBT housing options are listed.

Q3: Is this suitable for a 24-wire harness?
A: The header provides 24 circuit positions. Final harness suitability should be checked against the wire specification and system layout.

Q4: What waterproof component is used?
A: The matched waterproof pad is ZTF4059.

Request a Quote

Send your pin-length, housing-color and PCB requirements for the ZT2053 24-Circuit Sealed Through-Hole Header.
