ZT2023 30-Circuit Sealed Through-Hole Header

Key Features

A 30-circuit layout supports complex harness and controller connections.

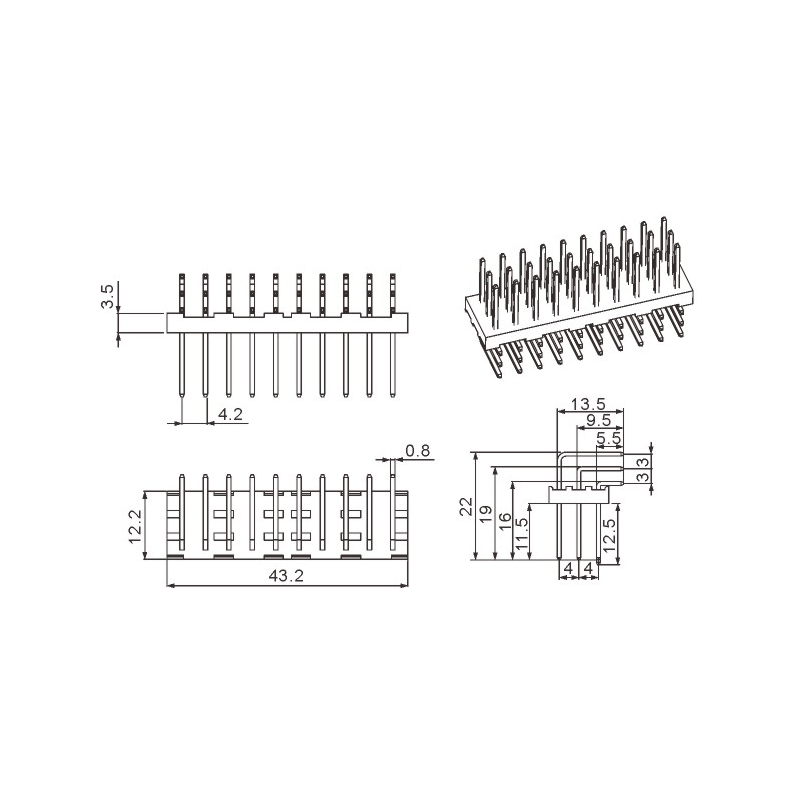

Vertical and right-angle header configurations are available.

Selected versions provide different pin lengths and board profiles.

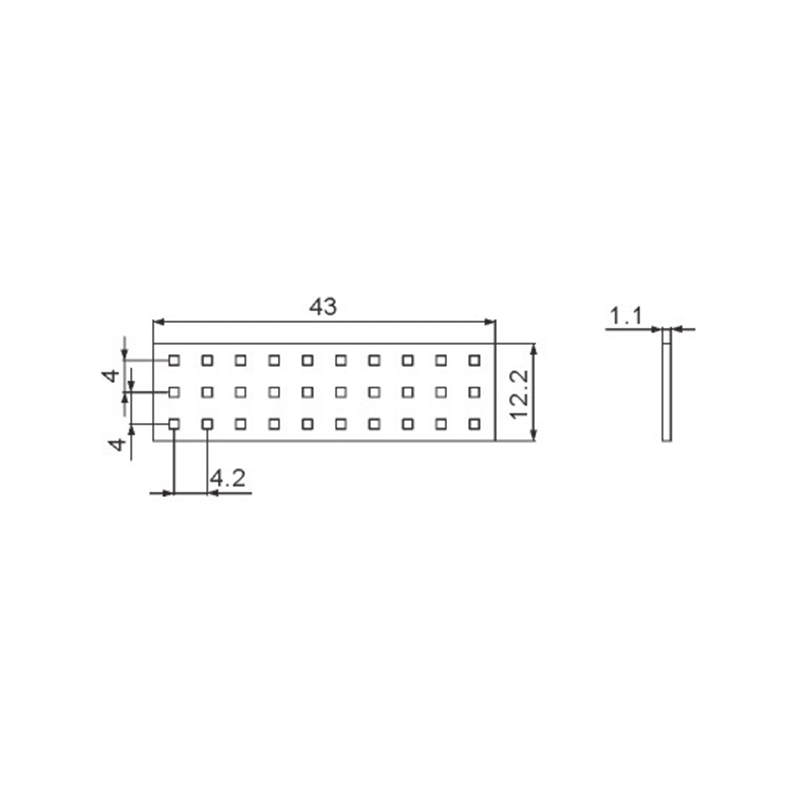

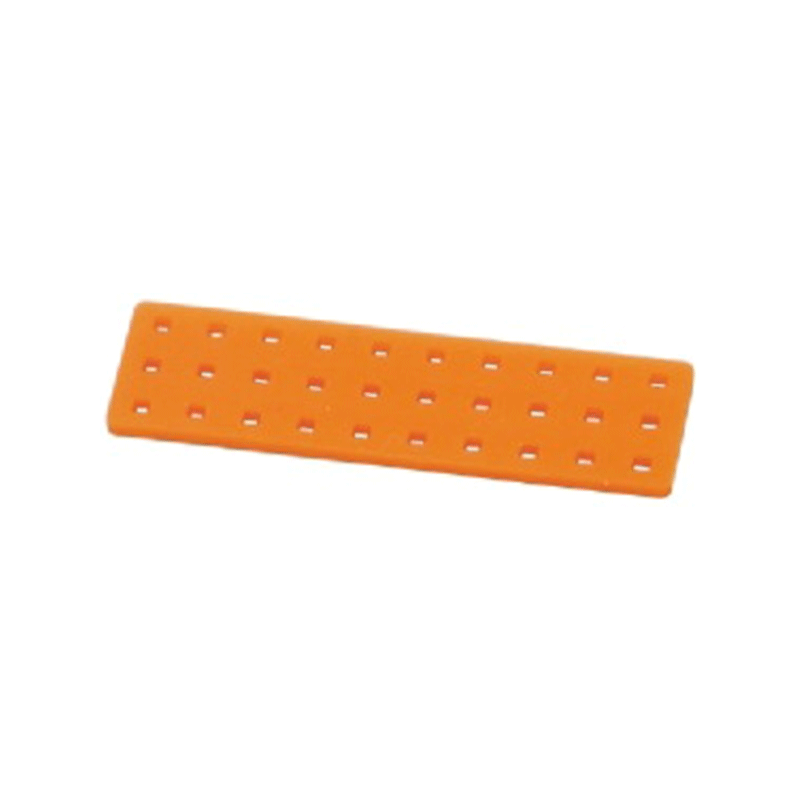

The orange silicone waterproof pad is matched to the 30-circuit header interface.

White PBT housings are listed for the header versions.

Applications

Motion-control assemblies. High-circuit-count electrical cabinets.

Industrial controller boards. Wire-to-board systems requiring alternative pin orientations.

Ordering & Quotation Information

Please provide the required pin orientation, pin length, PCB layout and quantity. For 30-circuit applications, confirm whether the harness exits vertically or at a right angle before sample selection.

FAQ

Q1: What is the main difference between the available versions?
A: The series includes different pin orientations and pin lengths to suit different board layouts and enclosure clearances.

Q2: Is a sealing part available for this header?
A: Yes. The header uses the ZT2028 silicone waterproof pad.

Q3: Which PCB thickness is supported?
A: The listed PCB thickness is 1.6mm.

Q4: Which details are required before placing an order?
A: Confirm the header orientation, pin length, board footprint, waterproof-pad requirement and purchasing quantity.

Request a Quote

Share your board layout and selected orientation to quote the ZT2023 30-Circuit Sealed Through-Hole Header.
