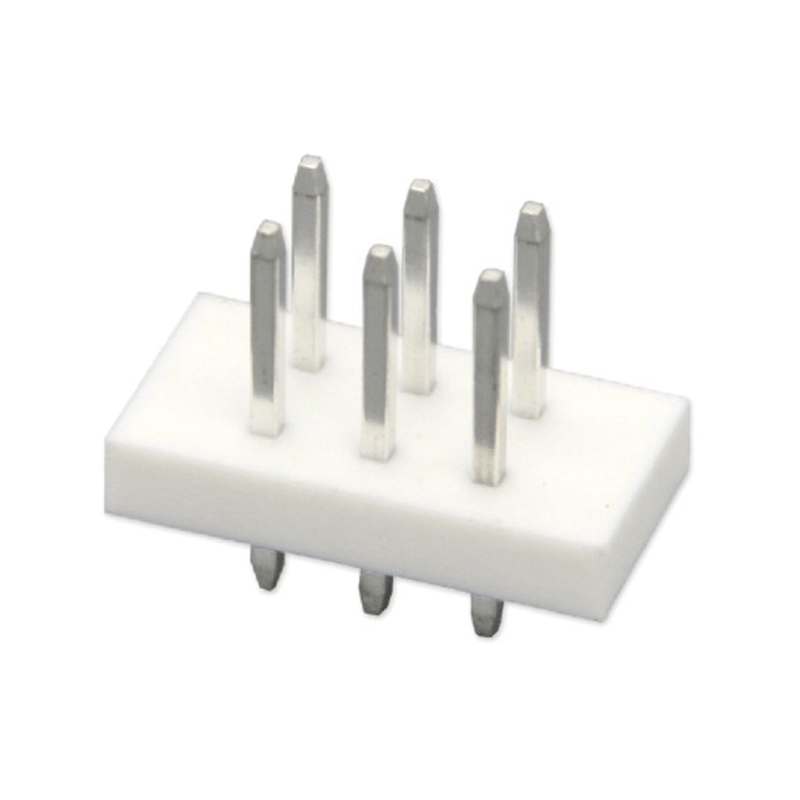

ZT2046 4.5mm Pitch 6-Circuit Through-Hole Header

The ZT2046 4.5mm Pitch 6-Circuit Through-Hole Header is a six-position vertical PCB header for wire-to-board connections requiring a wider 4.5mm terminal pitch. It is designed for 1.6mm PCBs and provides a 300V, 7A board-level connection.

This 6-circuit header is available with several pin-length options, allowing buyers to match the ZT2046 4.5mm Pitch 6-Circuit Through-Hole Header to board clearance and connection-depth requirements.

Inquiry Now
PREV：No previous article NEXT：ZT2023 30-Circuit Sealed Through-Hole Header
  • Product Details
  • Parameter

Key Features

A 4.5mm pitch provides wider spacing than the adjacent 4.2mm header series.

Six circuit positions suit compact power and signal connections.

Vertical through-hole pins support standard PCB insertion mounting.

PBT housing material and white color are listed for the product.

Multiple pin lengths support different mounting-depth requirements.


Applications

Compact industrial PCB assemblies. Power distribution interfaces.

Control boards with six-position wire harnesses. Equipment requiring wider 4.5mm contact spacing.


Ordering & Quotation Information

Please specify the required pin length, PCB thickness, mating terminal requirement and expected order quantity. Confirm the 4.5mm pitch before selecting this header for an existing board layout.


FAQ

Q1: How many circuits does this header provide?
A: This product provides six circuit positions.

Q2: Is the pitch 4.2mm or 4.5mm?
A: The ZT2046 header uses a 4.5mm pitch.

Q3: Can the pin length be selected?

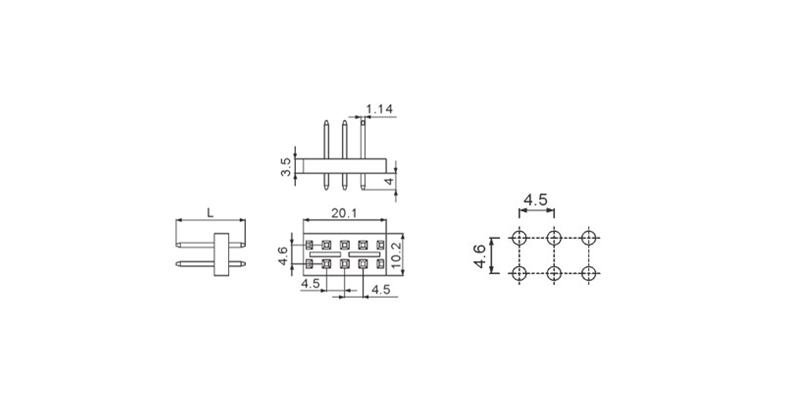

A: Yes. Listed pin lengths are 16.8mm, 19.3mm, 20mm and 22mm.

Q4: Is this designed for a 1.6mm PCB?
A: Yes. The listed applicable PCB thickness is 1.6mm.


Request a Quote

Provide your pin-length and PCB requirements to request pricing for the ZT2046 4.5mm Pitch 6-Circuit Through-Hole Header.
