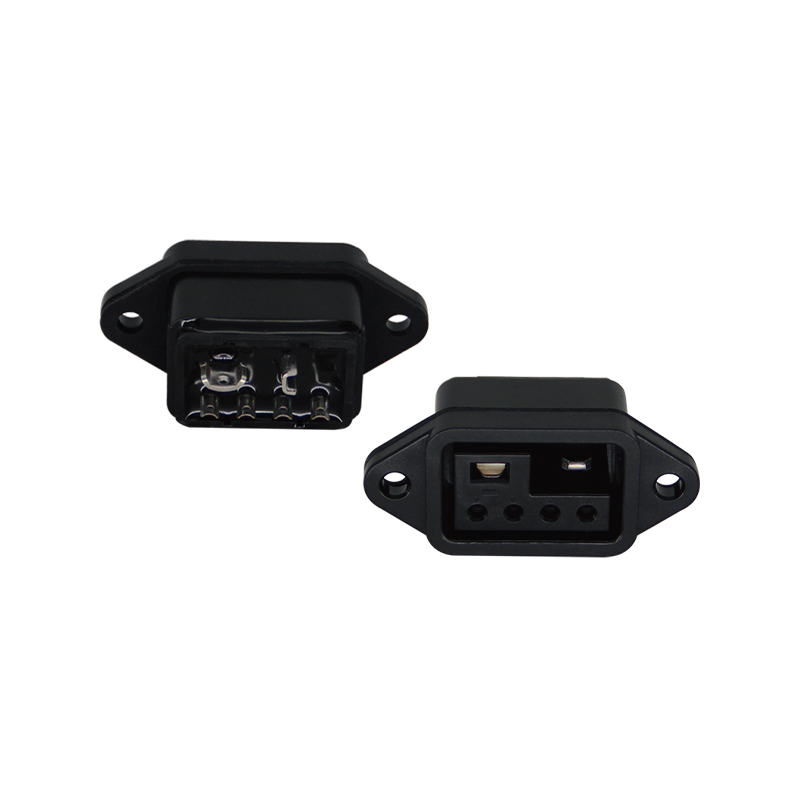

ZTC7224 1+1+4 Panel-Mount Power Socket with Protective Cap

Key Features

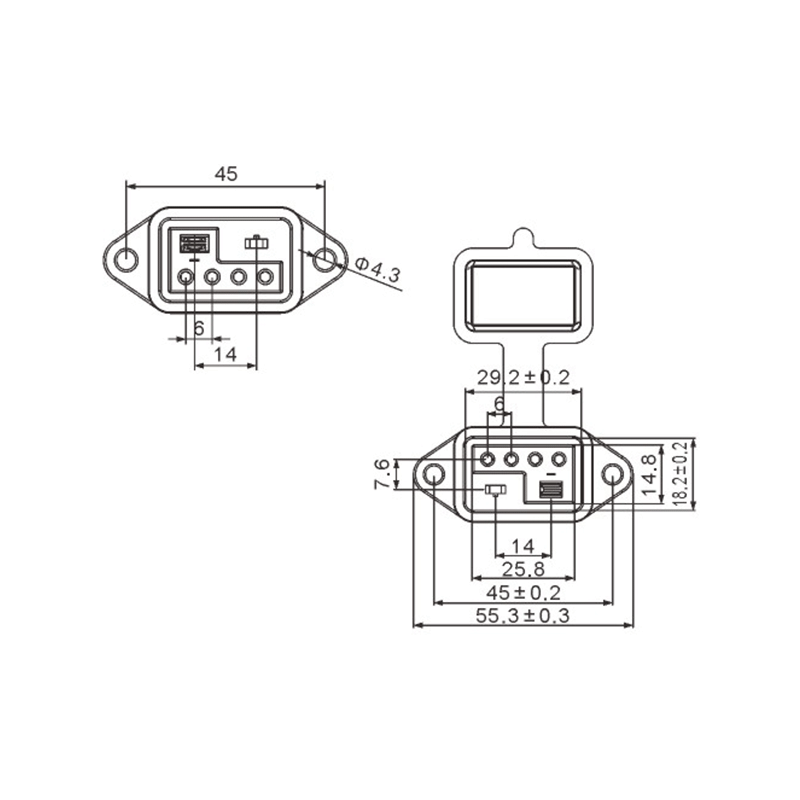

This Panel-Mount Power Socket with Protective Cap has an enclosure-facing flange with fixing holes for defined equipment installation.

Its attached cap can cover the contact area when the connector is not in use.

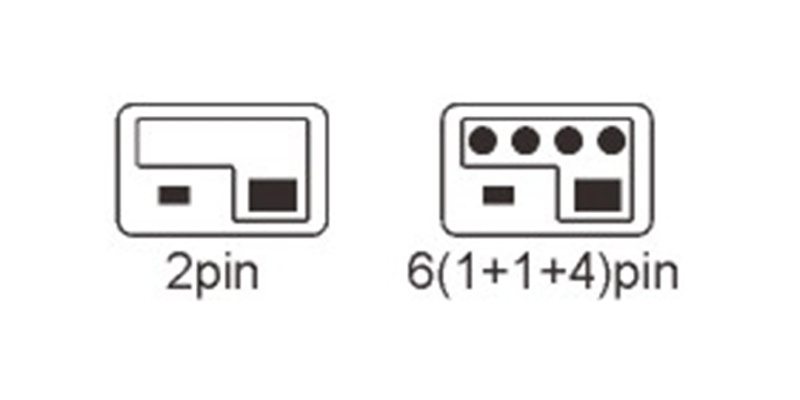

The socket integrates two-pin and six-pin contact interfaces in one housing, helping keep power and signal wiring at one panel connection point.

The quick plug structure supports practical installation and replacement.

Applications

The Panel-Mount Power Socket with Protective Cap is suitable for lithium battery packs, portable energy-storage equipment, charging equipment, industrial electrical housings, and other systems requiring a fixed 1+1+4 Power Socket. The protective cap is especially relevant where the external connector interface may be left disconnected during transport, storage, or service.

Ordering & Quotation Information

For the ZTC7224 1+1+4 Panel-Mount Power Socket with Protective Cap, Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: What is the role of the protective cap?
It covers the socket contact face when the connector is not in use.

Q2: Can this product be installed on an equipment enclosure?
Yes. Its flange structure is designed for panel or enclosure installation.

Q3: Can it support combined power and signal wiring?
Yes. It has separate two-pin and six-pin contact interfaces in one socket housing.

Q4: Does the ZTC7224 use a quick plug connection?
Yes. It uses a quick plug connection structure.

Request a Quote

Send your panel drawing, wire specifications, required quantity, and application details for model confirmation and quotation.
