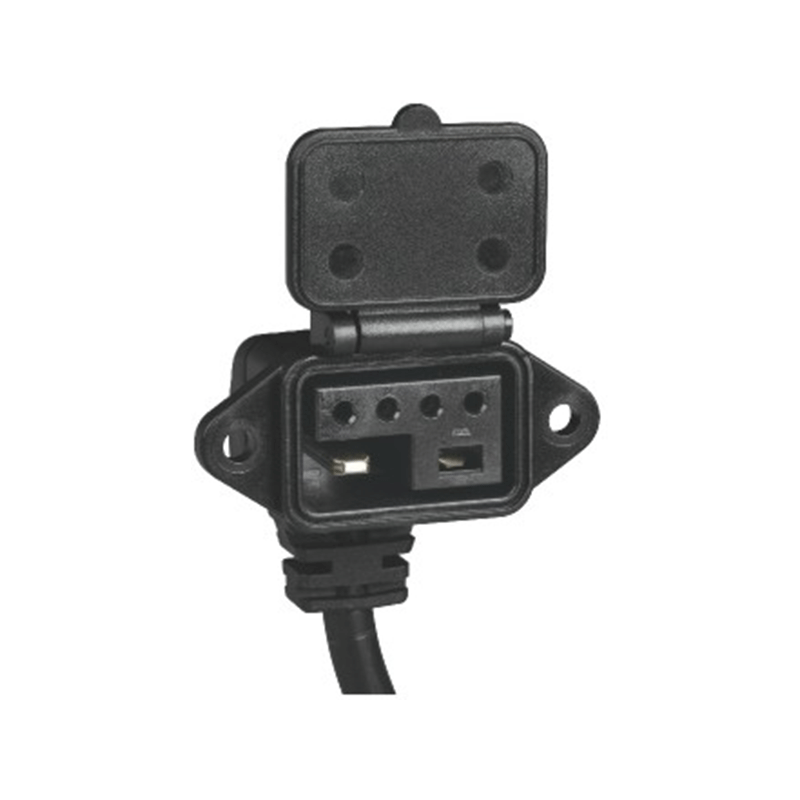

ZTC7226 1+1+4 Panel-Mount Power Socket with Hinged Protective Cover

Key Features

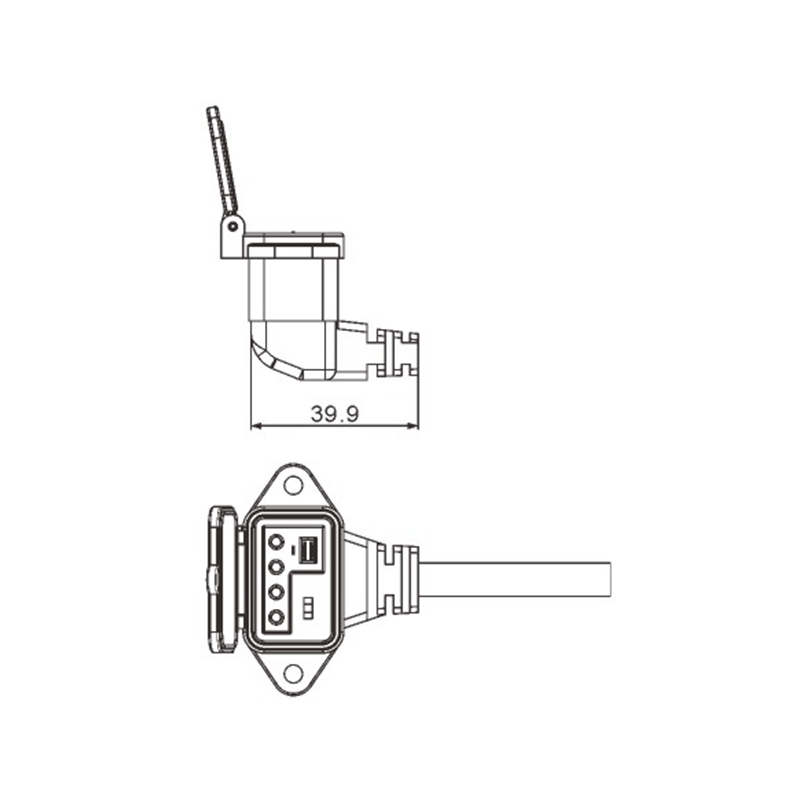

The panel-mount flange with fixing holes provides a defined installation position on an equipment housing.
The hinged protective cover remains attached to the socket, avoiding the need to handle a separate cap during use or service.

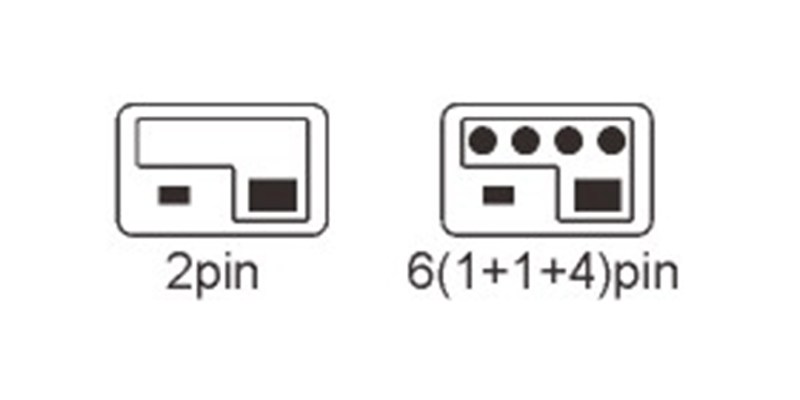

Separate two-pin and six-pin contact interfaces combine power and signal wiring in one panel connection point.
The wire-lead outlet supports direct integration into an internal harness or electrical assembly.
The quick plug connection structure supports straightforward connection and replacement work.

Applications

This Panel-Mount Power Socket with Hinged Protective Cover is suitable for compact electrical equipment, battery-related devices, portable energy units, and control enclosures where a protected external power and signal interface is needed. It is particularly useful when the panel connection may remain unplugged during transport, storage, or maintenance.

Ordering & Quotation Information

For the ZTC7226 1+1+4 Panel-Mount Power Socket with Hinged Protective Cover, Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: What does panel-mount mean for the ZTC7226?
It means the socket is designed to be fixed onto an equipment panel or enclosure through its mounting flange and fixing holes.

Q2: What is the purpose of the hinged protective cover?
It covers the contact face while the socket is disconnected and remains attached to the housing for convenient handling.

Q3: Can the ZTC7226 combine power and signal wiring?
Yes. It includes separate two-pin and six-pin contact interfaces within one socket body.

Q4: Does this socket use a quick plug connection?
Yes. The ZTC7226 uses a quick plug connection structure.

Request a Quote

Send your panel drawing, wire specifications, required quantity, and application details for model confirmation and a quotation.
