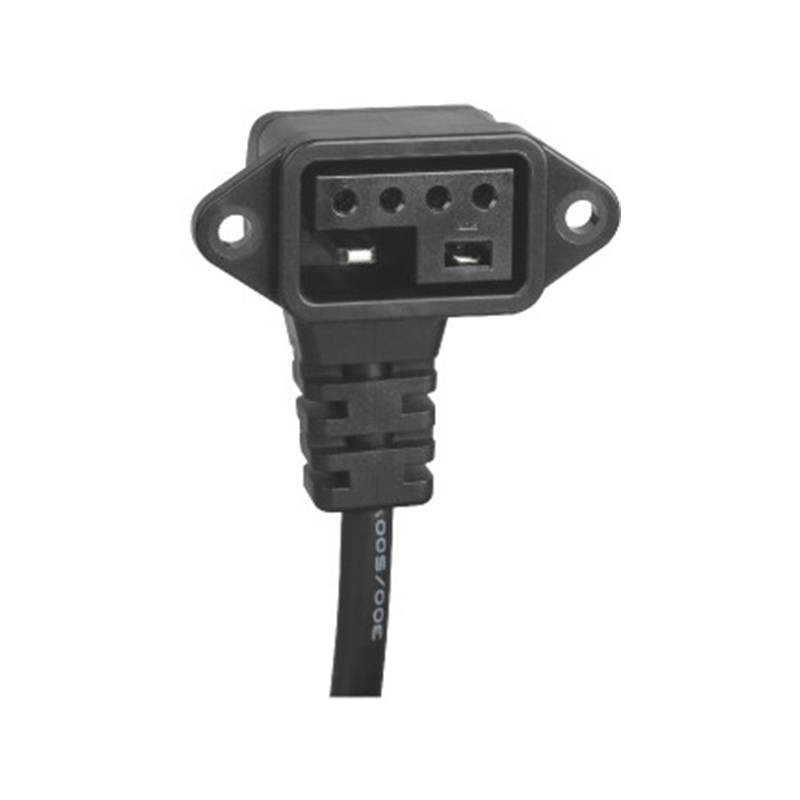

ZTC6015 1+1+4 Panel-Mount Power Socket

Key Features

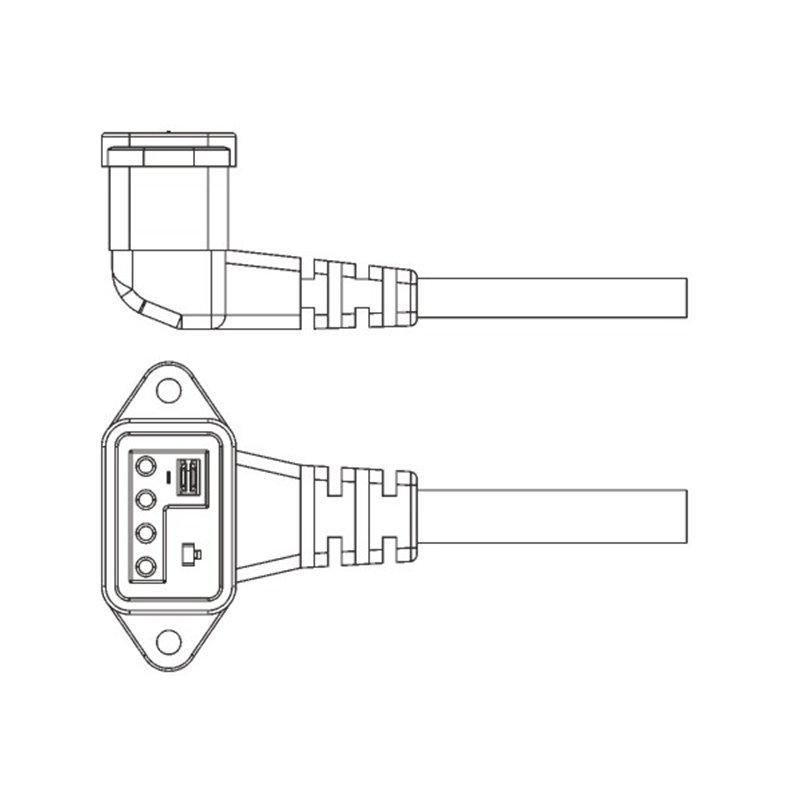

This Panel-Mount Power Socket uses a compact flange structure with fixing holes for equipment installation.

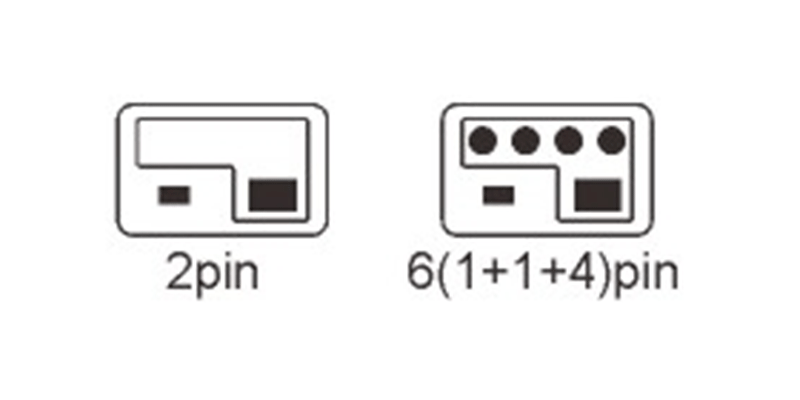

It combines two-pin and six-pin contact interfaces within one housing, allowing power and signal wiring to be brought together at the panel connection point.

The open-face design is appropriate for equipment where the connector interface remains accessible during normal operation, and the quick plug structure supports straightforward connection work.

Applications

The Panel-Mount Power Socket is suitable for compact battery equipment, industrial electrical enclosures, control units, and portable devices requiring a fixed 1+1+4 Power Socket. It is suitable where the connection point needs to remain available for routine use without an attached cover.

Ordering & Quotation Information

For the ZTC6015 1+1+4 Panel-Mount Power Socket, Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: Is this ZTC6015 version supplied with a protective cap?
No. This version has an open-face panel-mount socket structure.

Q2: What does panel-mount installation involve?
The socket is fixed to an equipment panel or enclosure through its mounting flange and fixing holes.

Q3: Can the socket combine power and signal contacts?
Yes. It includes separate two-pin and six-pin contact interfaces.

Q4: Does the ZTC6015 use a quick plug connection?
Yes. It uses a quick plug connection structure.

Request a Quote

Contact us with your panel requirements, wire specifications, required quantity, and application details for a quotation.
