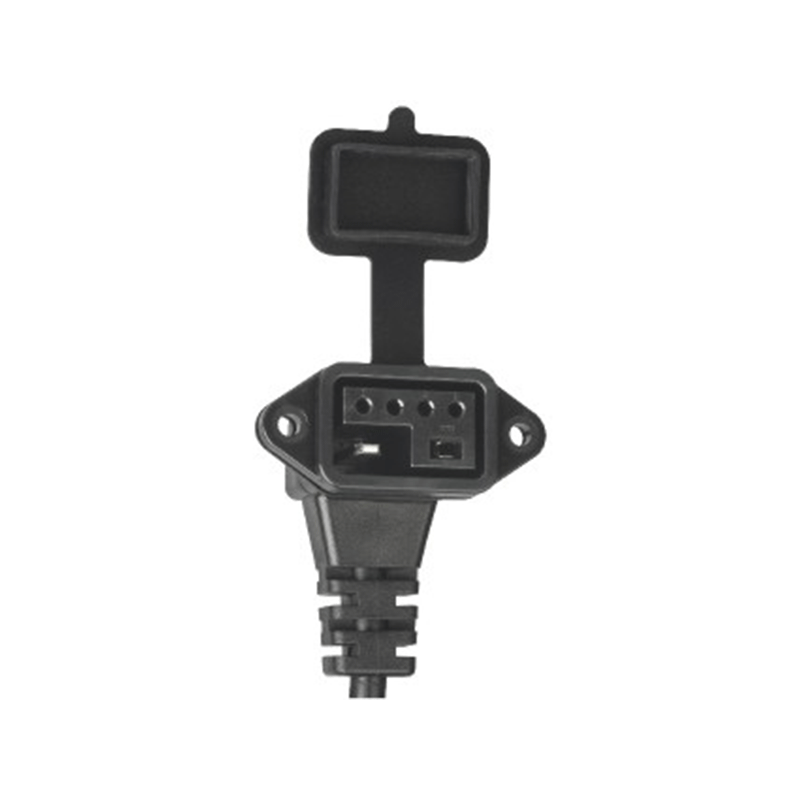

ZTC6015 1+1+4 Power Socket with Flexible Protective Cap

Key Features

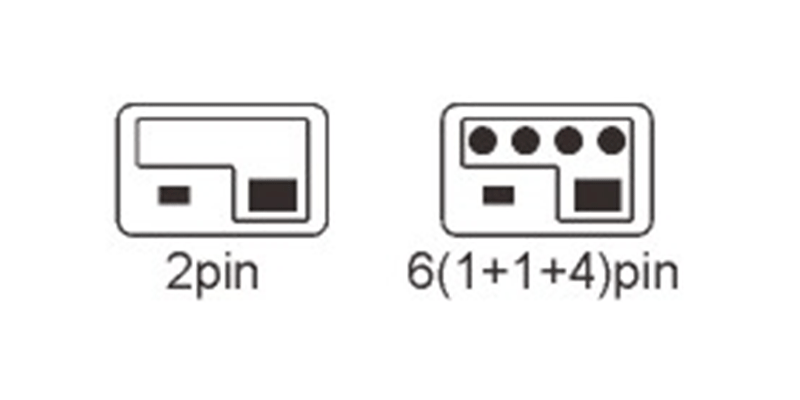

The Power Socket with Flexible Protective Cap combines two-pin and six-pin contact interfaces in one cable-side socket body.

The flexible cap remains connected to the housing and can be opened when the socket is in use.

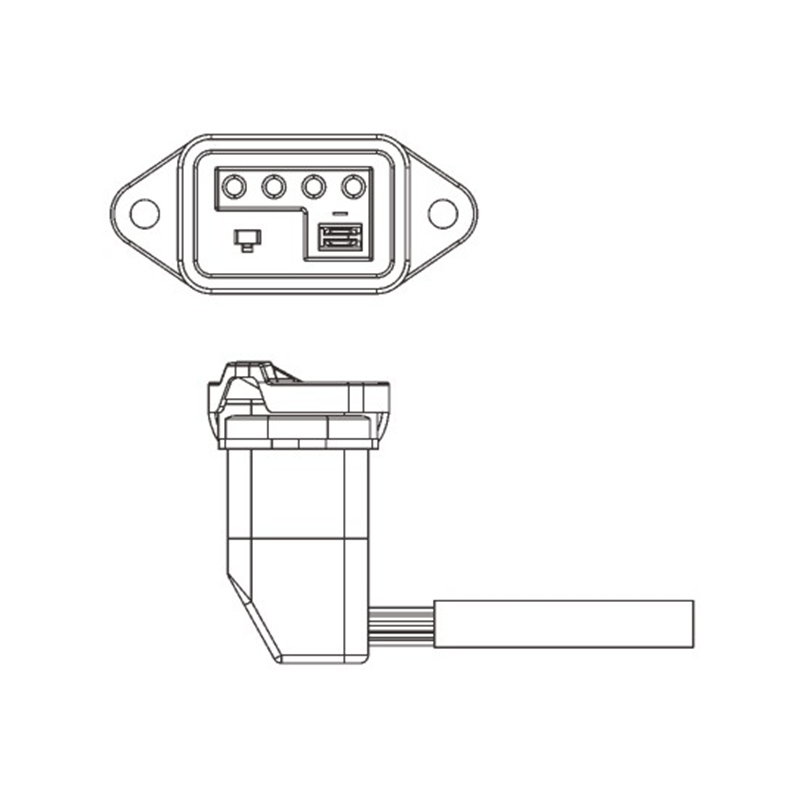

Its compact flange-style face supports installation at an equipment connection point, while the quick plug structure is suitable for regular connection and servicing tasks.

Applications

This Power Socket with Flexible Protective Cap is suitable for compact battery equipment, portable electrical devices, cable harness assemblies, and equipment interfaces that need a covered 1+1+4 Power Socket. Its attached cap is useful for applications where the socket is disconnected between operating cycles.

Ordering & Quotation Information

For the ZTC6015 1+1+4 Power Socket with Flexible Protective Cap, Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: What is the difference between a flexible protective cap and a separate cap?
The flexible cap is attached to the socket housing, so it remains available when the connector is disconnected.

Q2: Can this socket carry power and signal connections together?
Yes. The product has separate two-pin and six-pin contact interfaces.

Q3: Is the ZTC6015 suitable for compact equipment?
It is designed for compact electrical applications when the specified current, voltage, cable range, and installation requirements are matched.

Q4: Does this socket use a quick plug connection?
Yes. It uses a quick plug connection structure.

Request a Quote

Send your quantity, wire specifications, equipment application, and customization requirements for model confirmation and a quotation.
