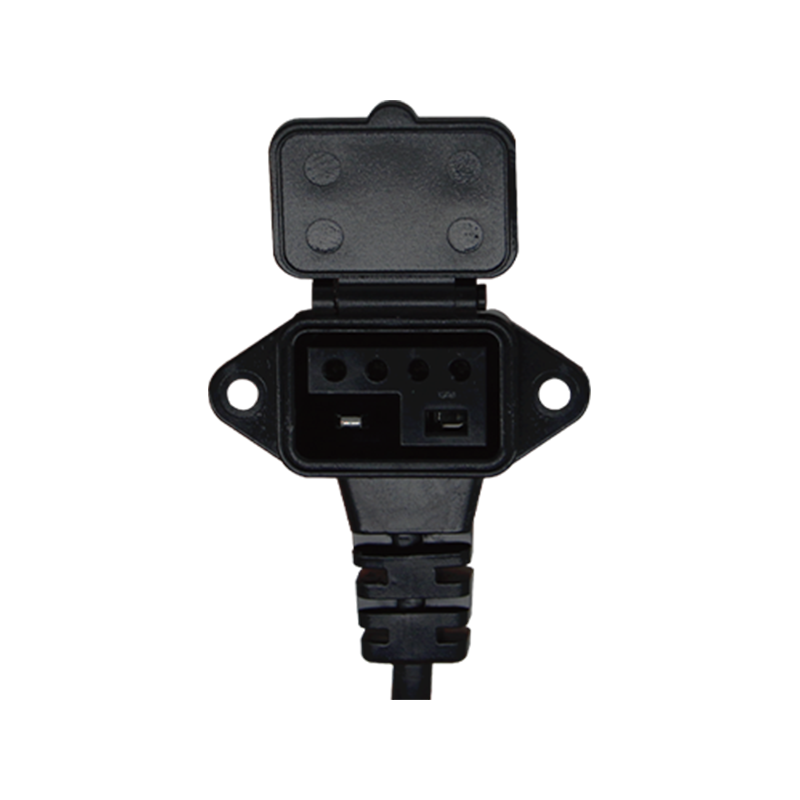

ZTC6010 1+1+4 Panel-Mount Power Socket with Hinged Protective Cover

Key Features

This Panel-Mount Power Socket combines power and signal contact interfaces in one enclosure-mounted connector.

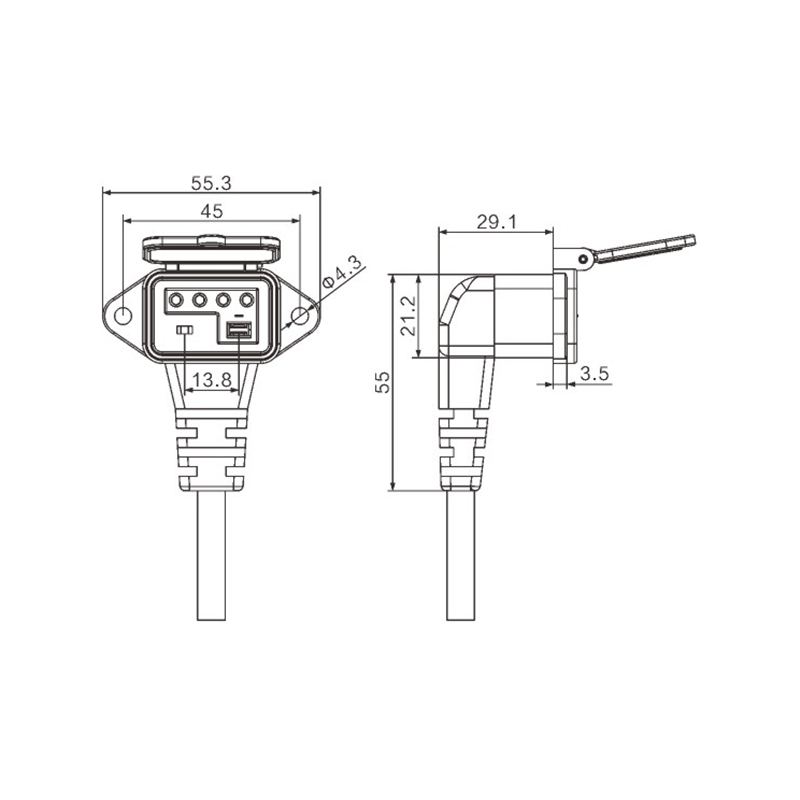

The mounting ears and fixing holes support stable panel installation, making the socket suitable for equipment that needs a permanent external connection point.

Its hinged protective cover is built into the socket structure, and the quick plug connection supports routine equipment connection and replacement.

Applications

The Panel-Mount Power Socket is suitable for battery enclosures, portable energy equipment, charging-related equipment, industrial electrical units, and other housings requiring a fixed combined power and signal connection point. The hinged protective cover is useful where the panel interface may be exposed while disconnected.

Ordering & Quotation Information

For the ZTC6010 1+1+4 Panel-Mount Power Socket with Hinged Protective Cover, Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: What does panel-mount mean for this socket?
It means the socket is designed to be fixed to an equipment panel or enclosure through its mounting flange and fixing holes.

Q2: Why is a hinged protective cover useful?
The attached cover can protect the connection face while keeping the cover available at the socket location.

Q3: Can this socket be used for power and signal wiring together?

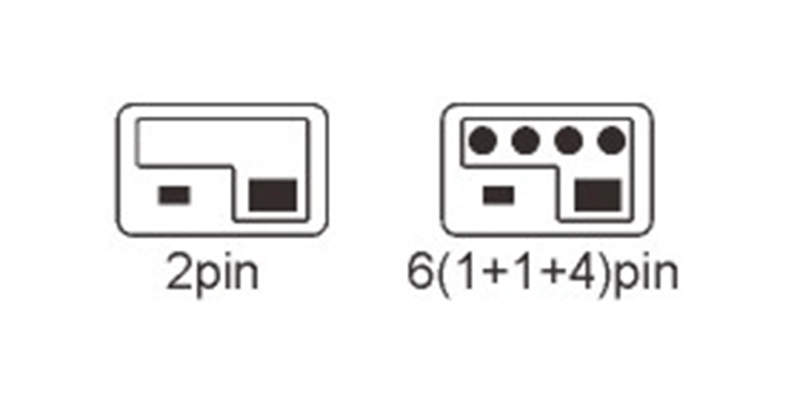

Yes. It provides separate two-pin and six-pin contact interfaces in one housing.

Q4: Does the ZTC6010 use a quick plug connection?
Yes. It uses a quick plug connection structure.

Request a Quote

Contact us with your panel drawing, wire specification, required quantity, and application details for a quotation.
