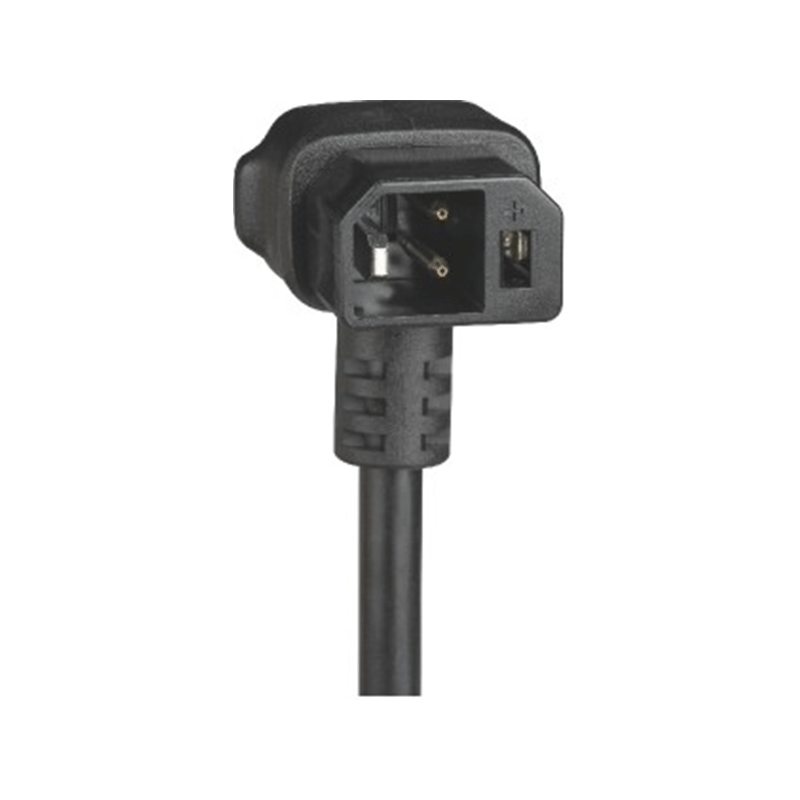

ZTC6040 1+1+2 Right-Angle Lead-Acid Battery Plug

Key Features

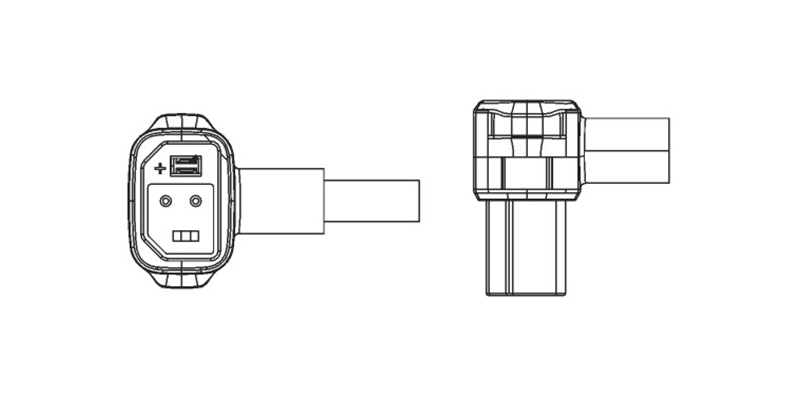

The right-angle body keeps the cable route close to the equipment instead of projecting straight out from the connection point.

The connector brings the main power path and signal contacts into one plug, helping keep the harness layout simpler.

The molded cable outlet provides a finished cable-side connection for lead-acid battery equipment.

Applications

This Right-Angle Lead-Acid Battery Plug is intended for lead-acid battery packs, charging equipment, portable electrical units, and serviceable battery harnesses. It is a practical choice where cable clearance around the connector is limited and both power and signal lines need to be connected through one interface.

Ordering & Quotation Information

For the ZTC6040 1+1+2 Right-Angle Lead-Acid Battery Plug, please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for quotation.

FAQ

Q1: Why choose a right-angle battery plug?
It keeps the cable close to the equipment body and can reduce the space needed in front of the connector.

Q2: Can the ZTC6040 carry both power and signal lines?

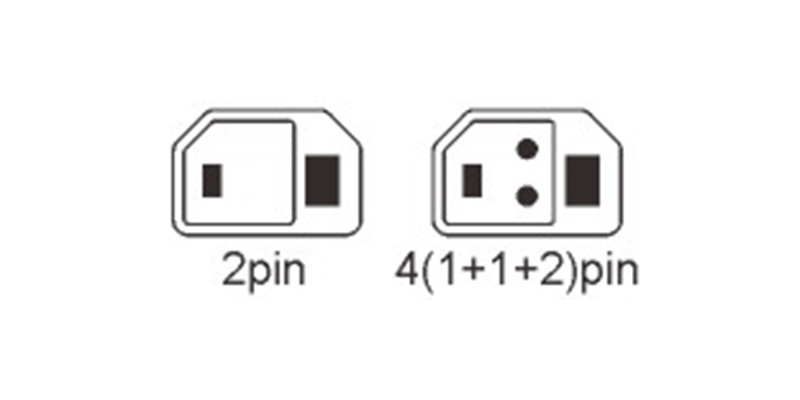

Yes. It has separate two-pin and four-pin contact interfaces in one plug body.

Q3: Is it suitable for lead-acid battery equipment?
Yes. The ZTC6040 is designed as a lead-acid battery power connector.

Q4: What should be provided for quotation?
Please send the required quantity, cable specification, intended application, and any marking or packaging requirements.

Request a Quote

Send your battery application, wire details, and required quantity to receive model confirmation and a quotation.
