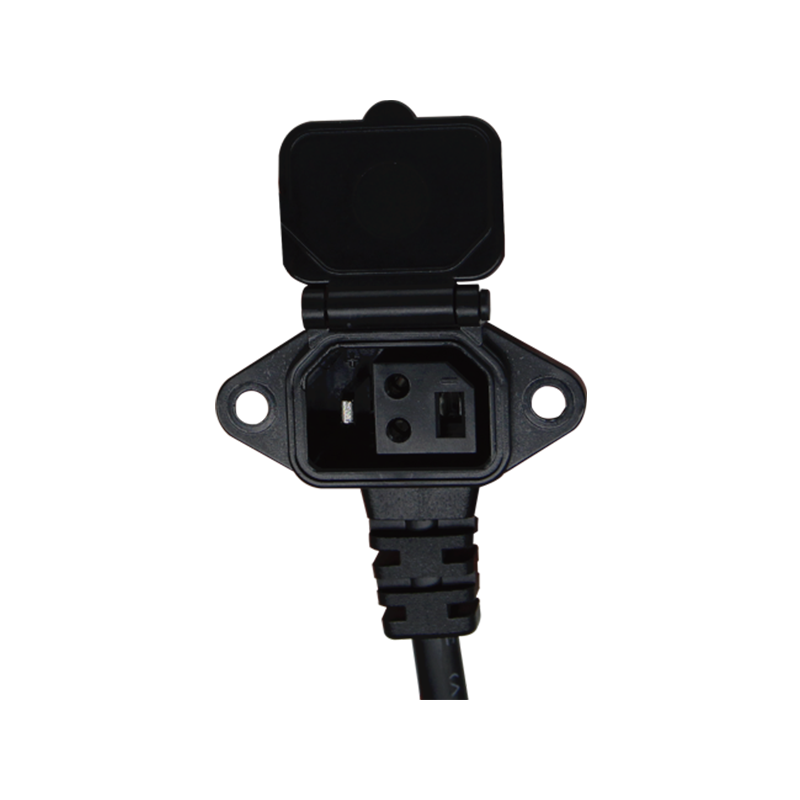

ZTC6012 1+1+2 Covered Lead-Acid Battery Socket

Key Features

The attached cover stays with the socket, so there is no separate cap to locate or replace.

The contact layout combines the main battery connection with signal contacts in one connector body.

The cable outlet allows the socket to be built directly into a lead-acid battery harness.

Applications

This Covered Lead-Acid Battery Socket is suitable for lead-acid battery packs, charging units, portable electrical equipment, and replacement harness assemblies. The covered socket format is particularly relevant where the connection face may be exposed while the equipment is unplugged.

Ordering & Quotation Information

For the ZTC6012 1+1+2 Covered Lead-Acid Battery Socket, please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: What is the purpose of the attached cover?
It closes over the socket contact face when the connector is not in use.

Q2: Can the ZTC6012 be integrated into a cable harness?
Yes. Its cable-side structure is intended for direct harness integration.

Q3: Can it connect both battery power and signal circuits?

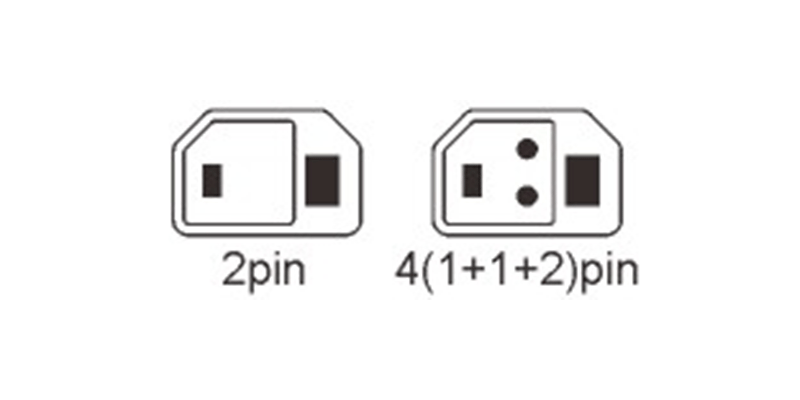

Yes. It uses separate two-pin and four-pin contact interfaces.

Q4: Does the ZTC6012 use a quick plug connection?
Yes. It uses a quick plug connection structure.
