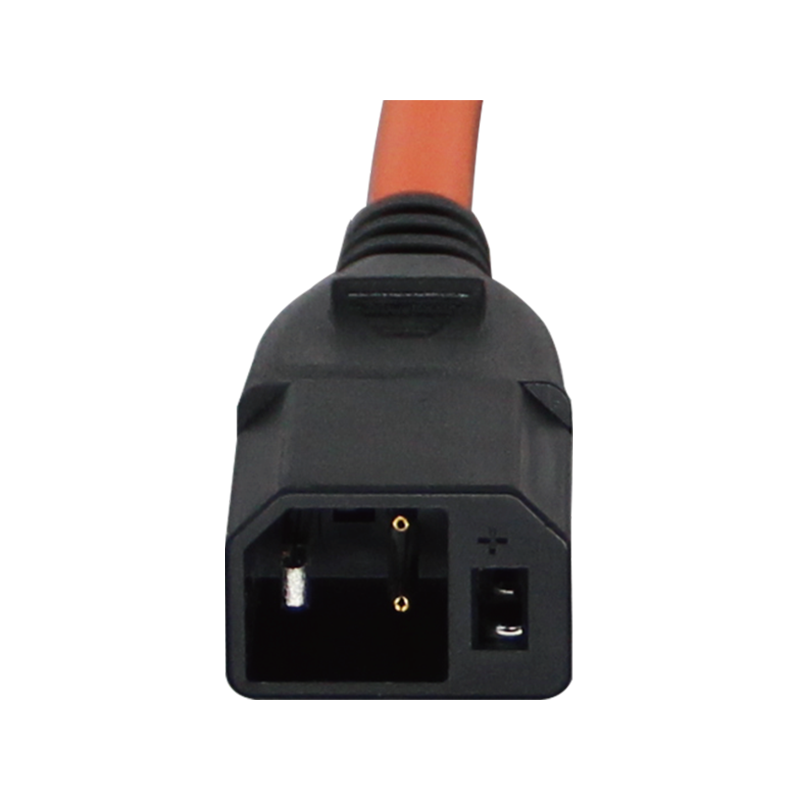

ZTC6013 1+1+2 Lead-Acid Battery Power Plug

Key Features

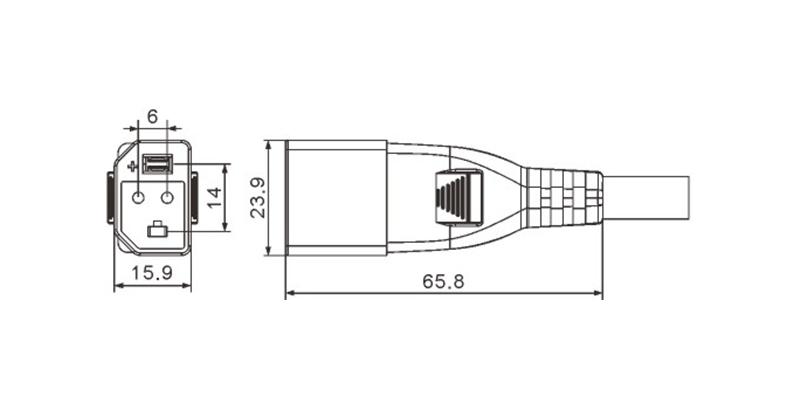

The straight plug body supports a direct cable exit from the connector housing.

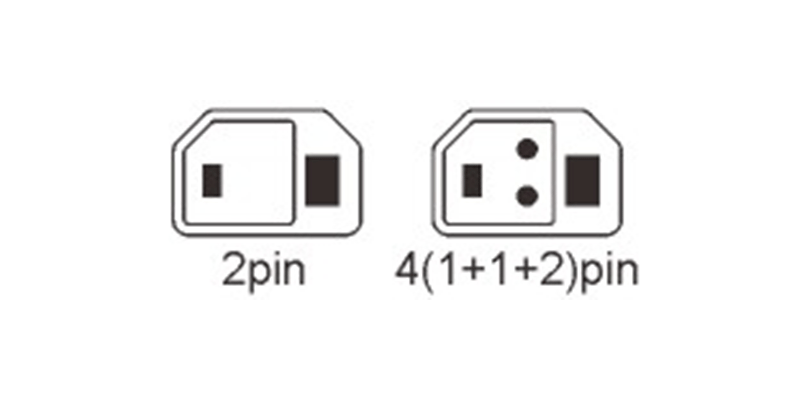

Separate two-pin and four-pin interfaces bring power and signal contacts together in one plug.

The compact 1+1+2 contact arrangement is designed for lead-acid battery connection applications.

Its molded cable outlet supports integration into battery and equipment harness assemblies.

Applications

This Lead-Acid Battery Power Plug is suitable for lead-acid battery packs, charging equipment, portable electrical units, and battery-related harness assemblies requiring a 1+1+2 Power Plug. Its straight cable exit is appropriate where the equipment layout allows direct harness routing.

Ordering & Quotation Information

For the ZTC6013 1+1+2 Lead-Acid Battery Power Plug, please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: What is the intended battery application for the ZTC6013?
It is designed for lead-acid battery equipment requiring combined power and signal connections.

Q2: What does the 1+1+2 configuration refer to?
It identifies the four-pin contact interface used alongside the separate two-pin power interface.

Q3: Can wire specifications be customized?
Wire-related requirements follow the equipment application and order details.

Q4: Does the ZTC6013 use a quick plug connection?
Yes. It uses a quick plug connection structure.

Request a Quote

Contact us with the battery application, wire specifications, quantity, and customization requirements for a quotation.
