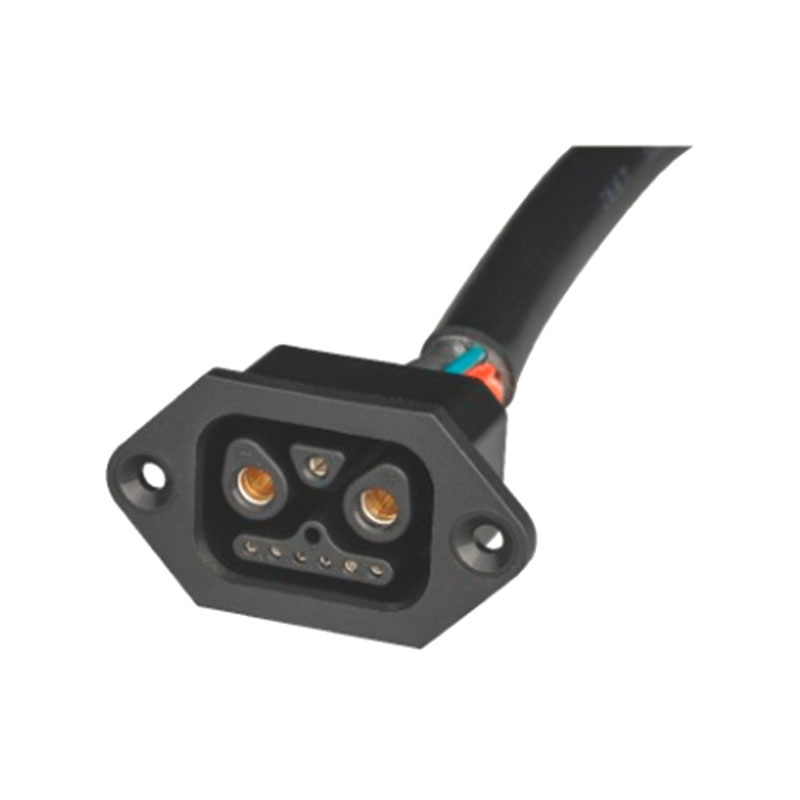

ZTC6064 40A High-Current Power and Signal Panel-Mount Socket

Key Features

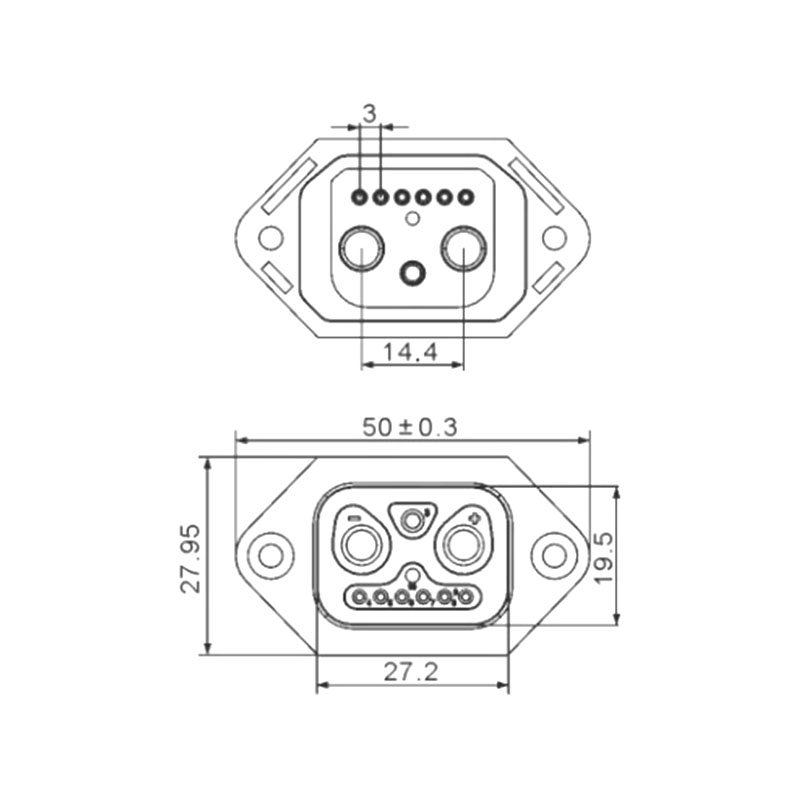

The front flange fixes the connector to a panel or equipment housing.

Two larger main contacts are arranged with six smaller signal contacts in one interface.

The rear cable exit supports wiring inside the enclosure.

The 40A rating and 0.5-4.0 mm² main-line range support higher-current power circuits.

Applications

The ZTC6064 40A High-Current Power and Signal Panel-Mount Socket can be used in electrical cabinets, equipment housings, power-and-control assemblies, and fixed cable connection panels.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: Is this a panel-mounted connector?
Yes. ZTC6064 has a front flange with mounting holes for fixing it to a panel or housing.

Q2: How many contacts does the socket have?

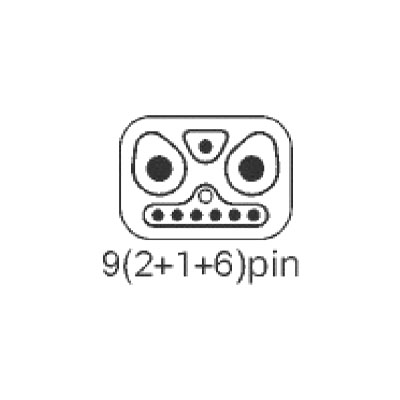

It uses a 2+1+6 arrangement, for a total of nine contacts.

Q3: What is the specified current rating?
The catalog specifies 40A. The complete electrical system should be selected according to the operating requirements.

Q4: What is needed before ordering?
Please provide the circuit requirements, cable details, panel drawing, and quantity.

Request a Quote

Share your power and signal wiring design, panel dimensions, and order quantity. We will confirm the ZTC6064 configuration for your project.
