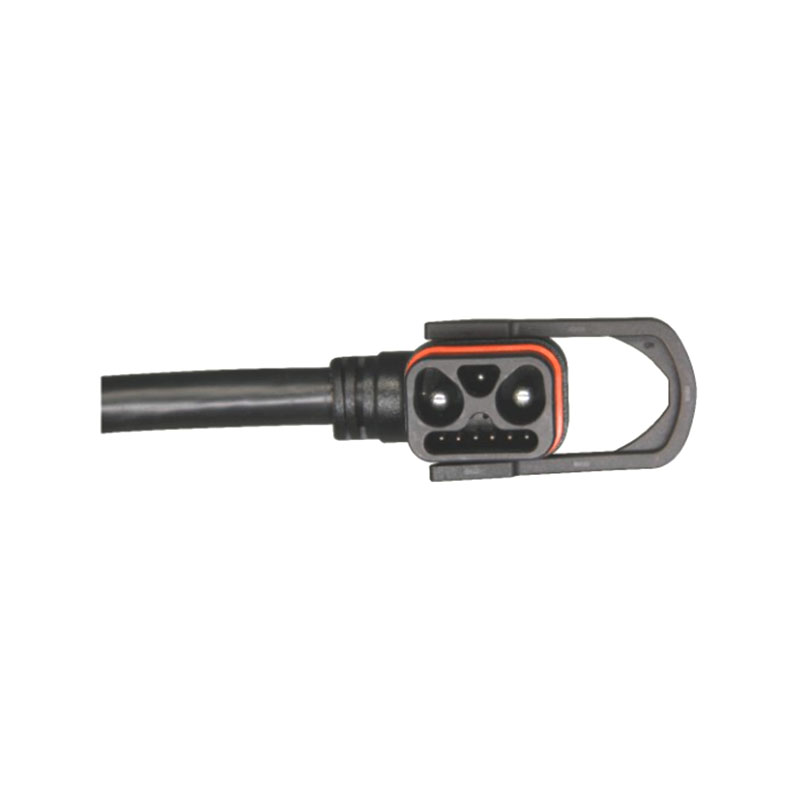

ZTC6051 50A High-Current Power and Signal Right-Angle Plug

Key Features

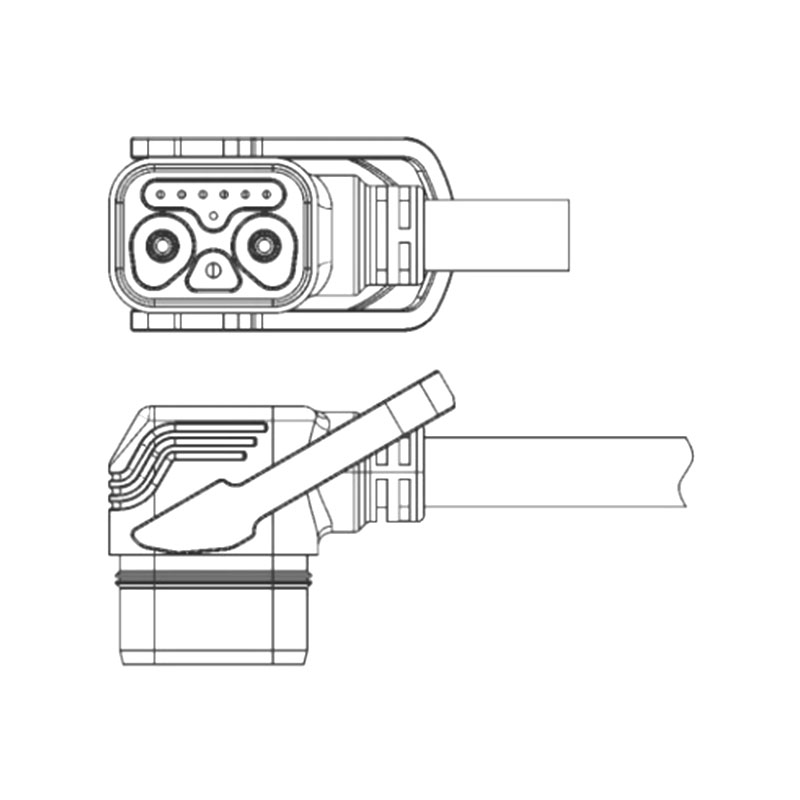

The right-angle body directs the cable along the equipment side rather than straight out from the interface.

An external retaining frame provides a mechanical holding feature around the connector body.

The connector combines 2 main power contacts with 6 signal contacts.

Separate cable ranges are specified for the main-line and signal-line conductors.

Applications

The ZTC6051 50A High-Current Power and Signal Right-Angle Plug is suitable for cable assemblies and electrical equipment that require higher-current power conductors and multiple signal circuits at one connection point.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: What does the 2+1+6 contact layout mean?
It identifies the nine-contact configuration used by this model. Confirm the required circuit assignment before production.

Q2: Why is a right-angle plug useful?
It routes the cable close to the equipment surface and can reduce the clearance required behind the connection point.

Q3: What cable range is specified for the main line?
The specified main-line range is 0.5-6.0 mm². The signal-line range is 0.3-0.5 mm².

Q4: What should be included in an inquiry?
Provide the current requirement, circuit layout, cable details, installation space, and order quantity.

Request a Quote

Send your power and signal wiring requirements, cable drawing, and quantity. We will review the ZTC6051 assembly for a quotation.
