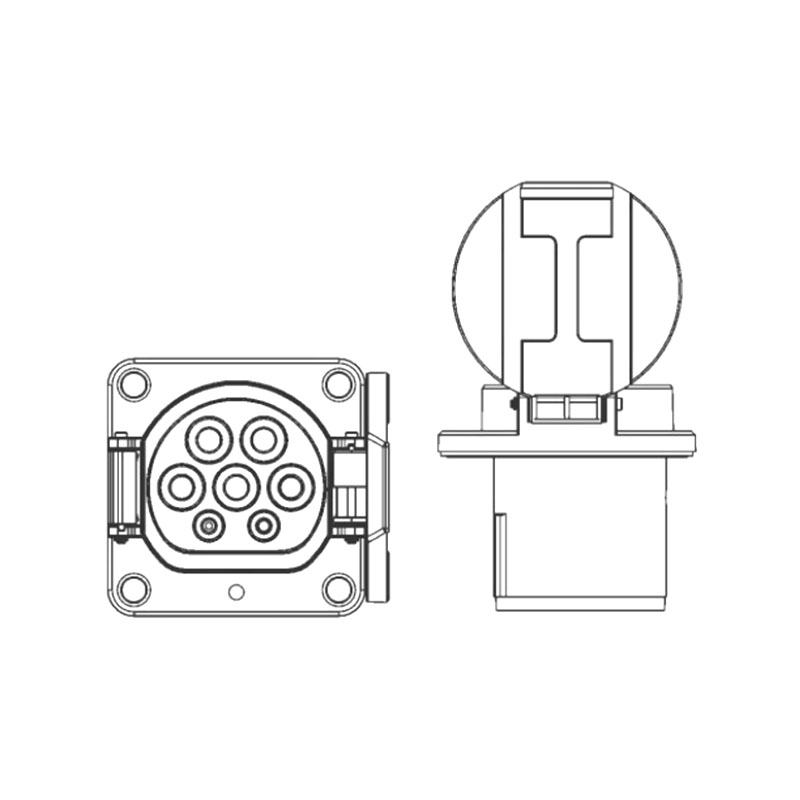

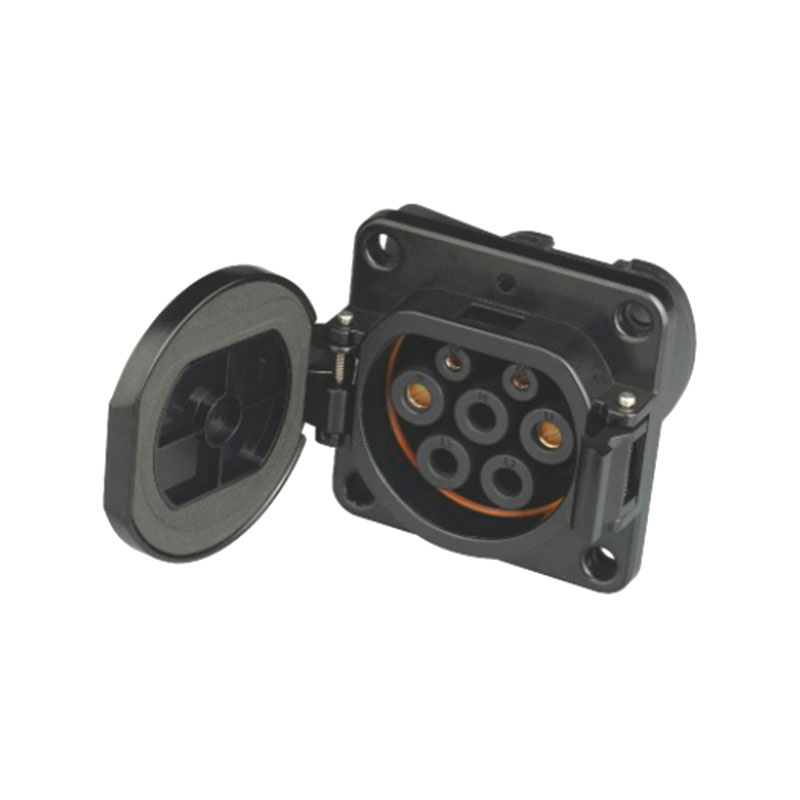

ZTA6159 IP67 Power and Signal Socket with Protective Cap

Key Features

The protective cap closes over the multi-contact interface while it is disconnected.

The IP67 protection rating supports use where the panel connection requires a sealed design.

The 60A current rating distinguishes this product from lower-current compact connector models.

Separate main-line and signal-line wire specifications support combined power-and-control harness design.

Applications

The ZTA6159 IP67 Power and Signal Socket with Protective Cap is suitable for equipment housings, outdoor-adjacent electrical assemblies, and power-and-control cable systems that need a protected, higher-current panel connection.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: What is the current rating of ZTA6159?
The specified current rating is 60A. The complete electrical system should be designed to match the required load.

Q2: Why is IP67 important for this socket?
The catalog specifies IP67 protection, making this model suitable for applications that need a protected connector interface. Final installation conditions should still be assessed by the buyer.

Q3: Does the socket include a protective cap?
Yes. A hinged protective cap covers the contact interface while disconnected.

Q4: What should be provided for a quotation?
Provide the electrical requirements, main-line and signal-line cable details, panel drawing, operating environment, and quantity.

Request a Quote

Send the required current, wiring design, panel dimensions, and order quantity. We will review the ZTA6159 configuration and provide a quotation.
