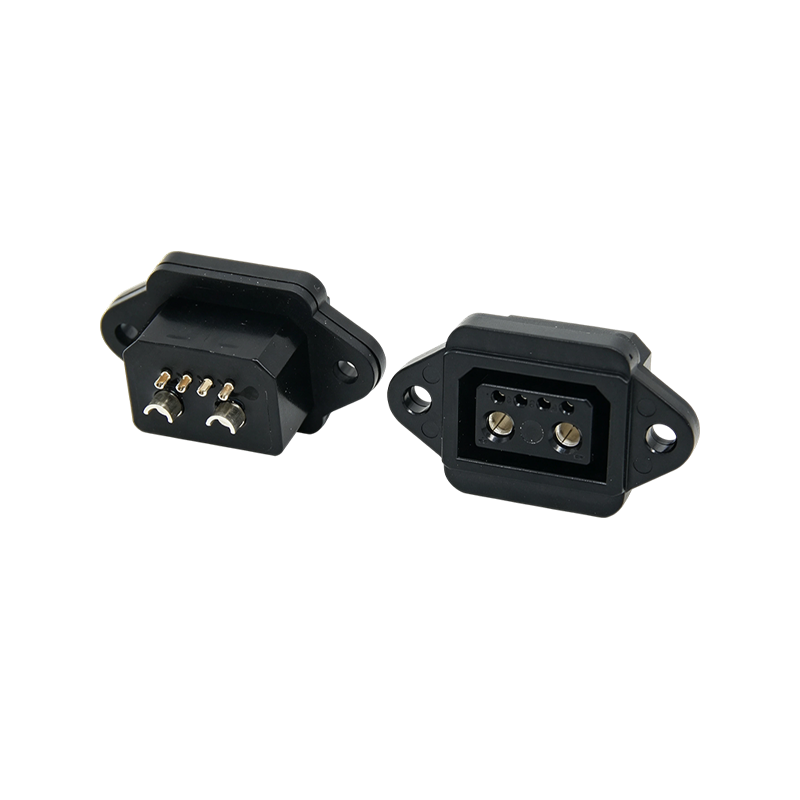

ZTC3002-D 2+4 Panel-Mount Power Socket

Key Features

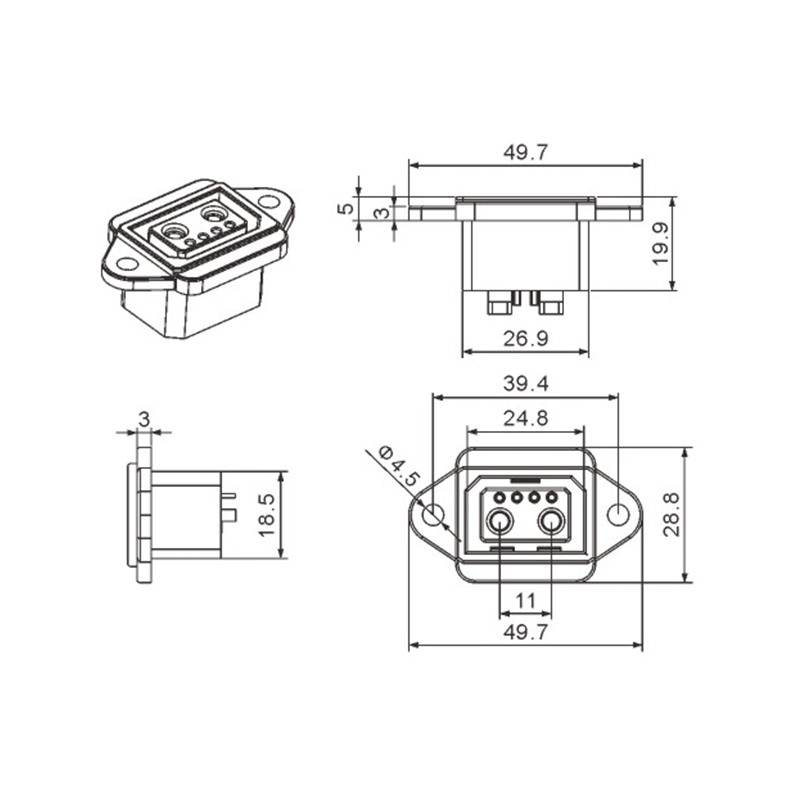

The mounting flange and fixing holes support secure installation on a panel or equipment enclosure.

The open-face socket construction keeps the connector interface available for regular equipment connection.

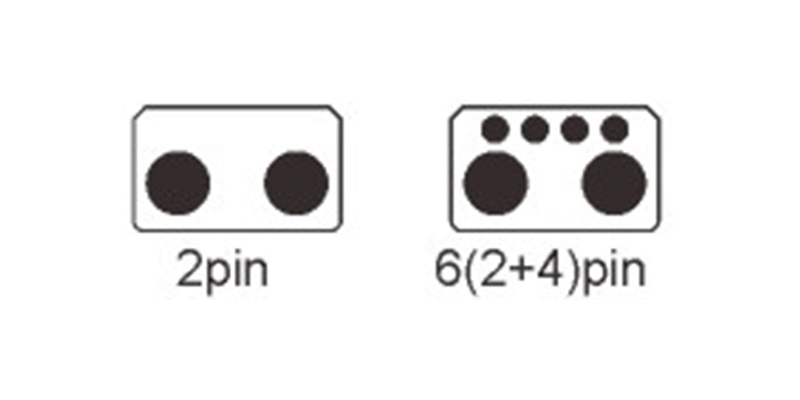

The 2+4 Power Socket integrates two power contacts and six signal contacts in one panel-mounted housing.

Its compact structure is suitable for equipment layouts that require a defined external harness connection point.

Applications

This Panel-Mount Power Socket is suitable for industrial electrical cabinets, portable power equipment, battery-related devices, and control systems requiring a fixed 2+4 Power Socket. It is appropriate where the equipment interface remains accessible during normal operation and a cover is not required.

Ordering & Quotation Information

For the ZTC3002-D 2+4 Panel-Mount Power Socket, Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: How is the ZTC3002-D installed?
It is fixed to an equipment panel or enclosure through its mounting flange and fixing holes.

Q2: Is this socket supplied with a protective cover?
No. This version has an open-face panel-mount structure.

Q3: Can it support power and signal wiring together?
Yes. The socket includes separate two-pin and six-pin contact interfaces.

Q4: Does the ZTC3002-D use a quick plug connection?
Yes. It uses a quick plug connection structure.

Request a Quote

Send your panel drawing, required quantity, wire specifications, and application details for model confirmation and quotation.
