ZT217/ZT227 30A Single-Pole Round Connector

Key Features

One-circuit connector design is suited to dedicated power-line connections.

The 30A single-pole connector is rated at 300V AC/DC in the product manual.

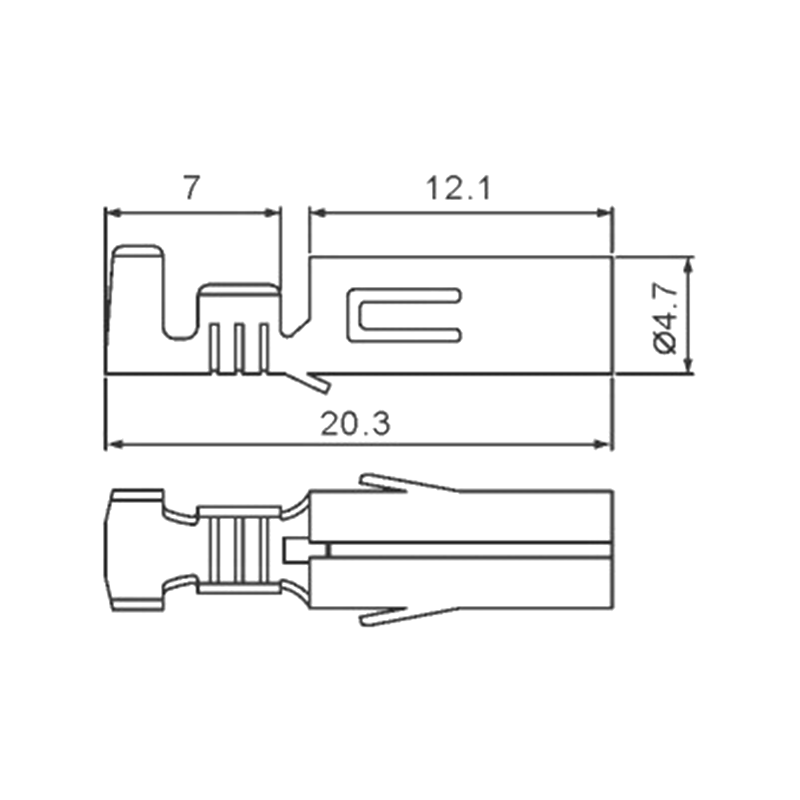

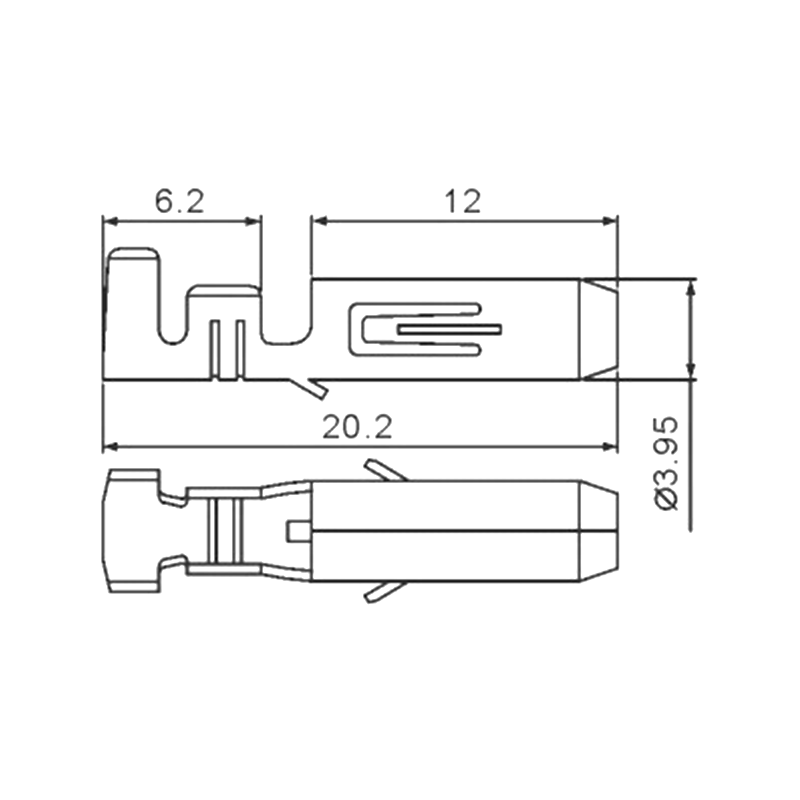

Terminal options cover 0.5-1.5 mm² conductors.

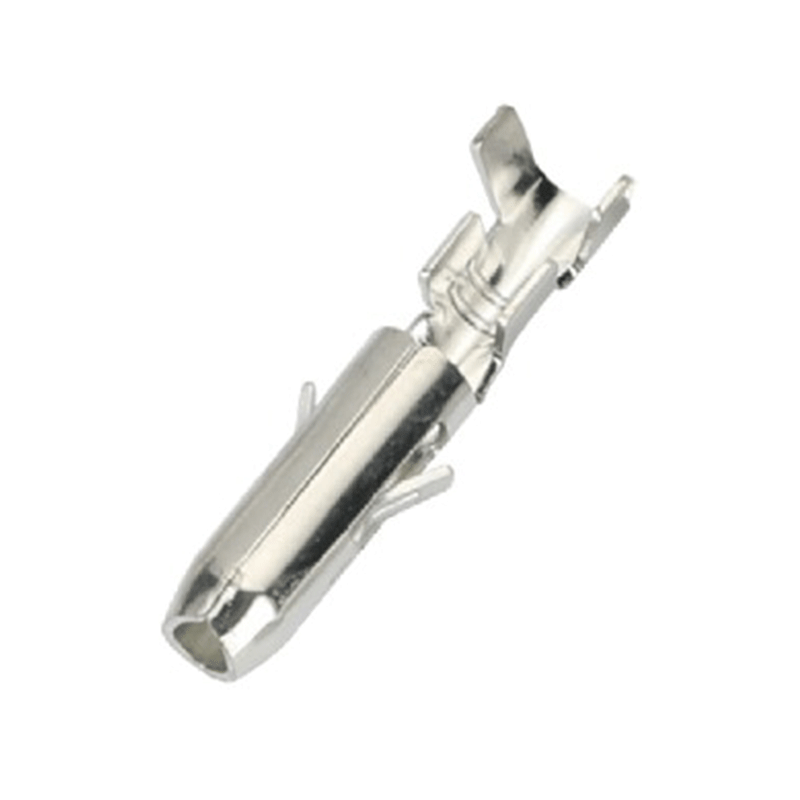

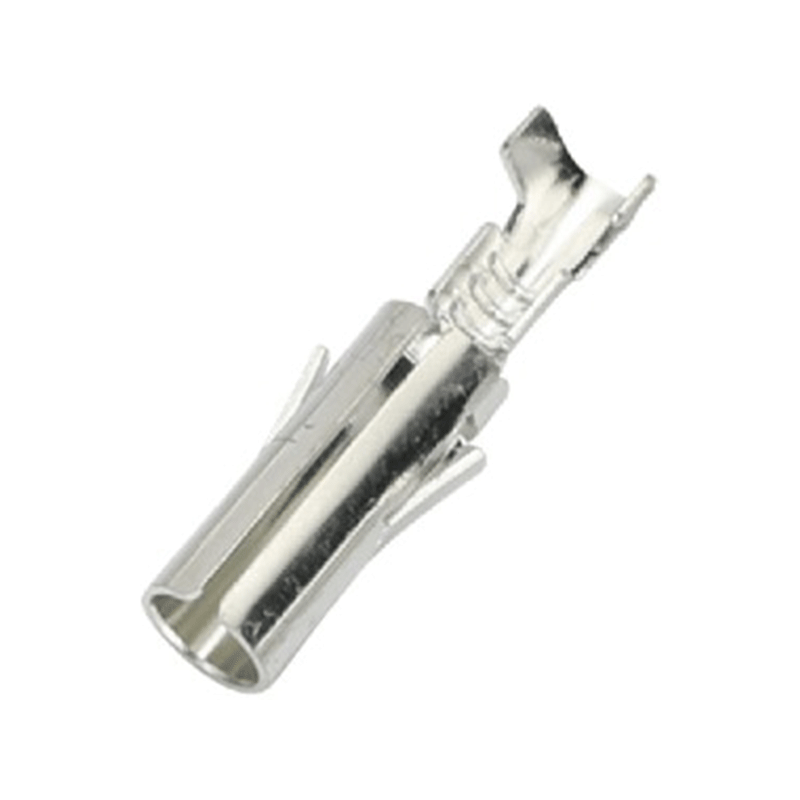

Phosphor-copper terminals use bright tin plating.

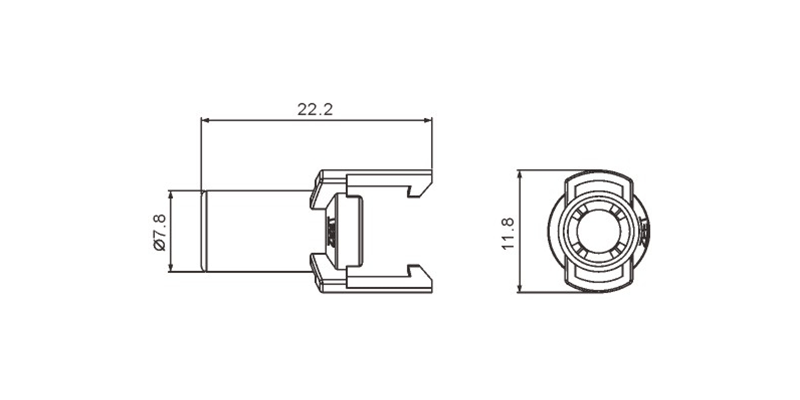

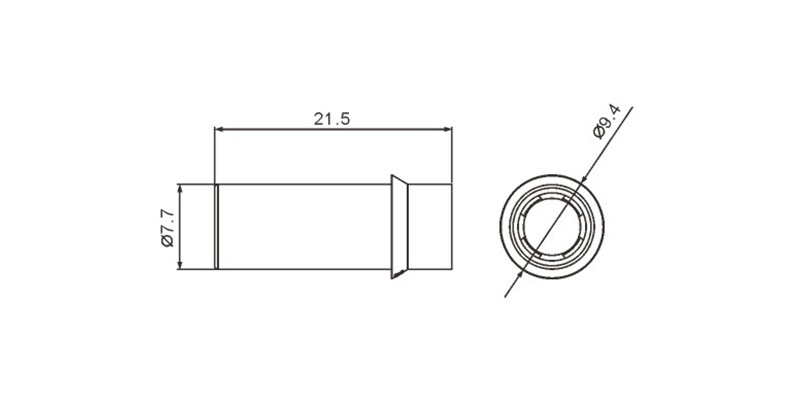

Black PA V-0 housings are listed separately for the plug and socket sides.

Applications

The single-pole round connector is suitable for industrial power harnesses and electrical equipment requiring a defined 30A connection. It should be selected only after confirming the cable size, mating side, required housing, and installation environment.

Ordering & Quotation Information

Please provide the required model or product type, quantity, relevant technical configuration, and any drawing or packaging requirements for a quotation.

FAQ

Q1: Is this a complete connector set?

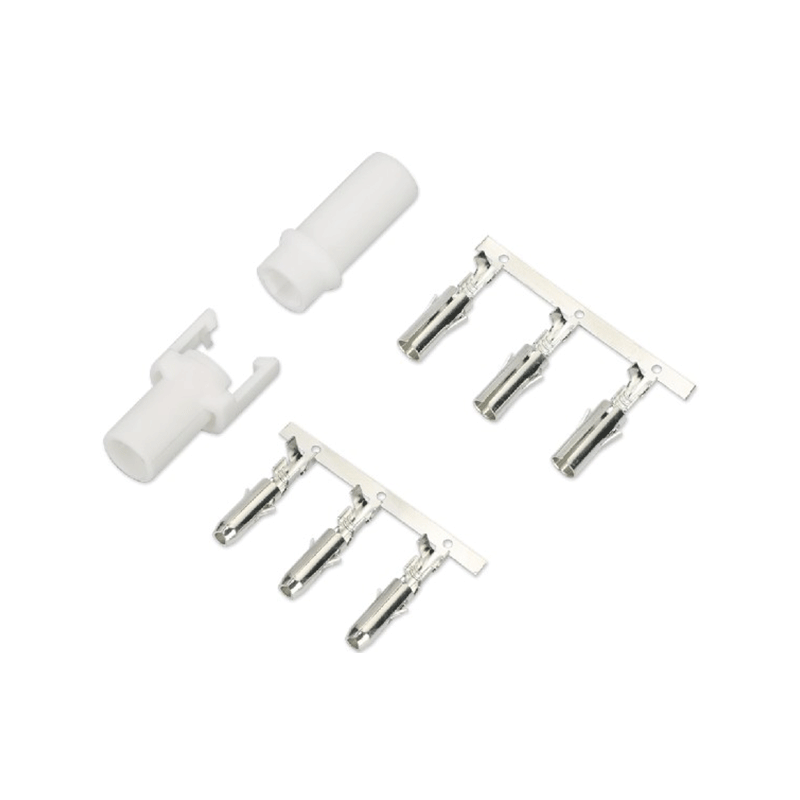

The product system includes terminals plus separate plug and socket housings. Specify whether you require a complete set or individual components.

Q2: What wire size is supported?
The listed terminal range is 0.5-1.5 mm², depending on the terminal type selected.

Q3: Is an enclosure included with this connector?
The listed product system includes separate plug and socket housings. Specify whether terminals, housings, or a complete connector set are required.

Q4: What is needed for a quotation?
Please confirm the plug or socket side, terminal type, wire size, quantity, and whether housings are required.

Request a Quote

For a ZT217/ZT227 30A Single-Pole Round Connector quotation, send the required component combination and wiring details.
